Description

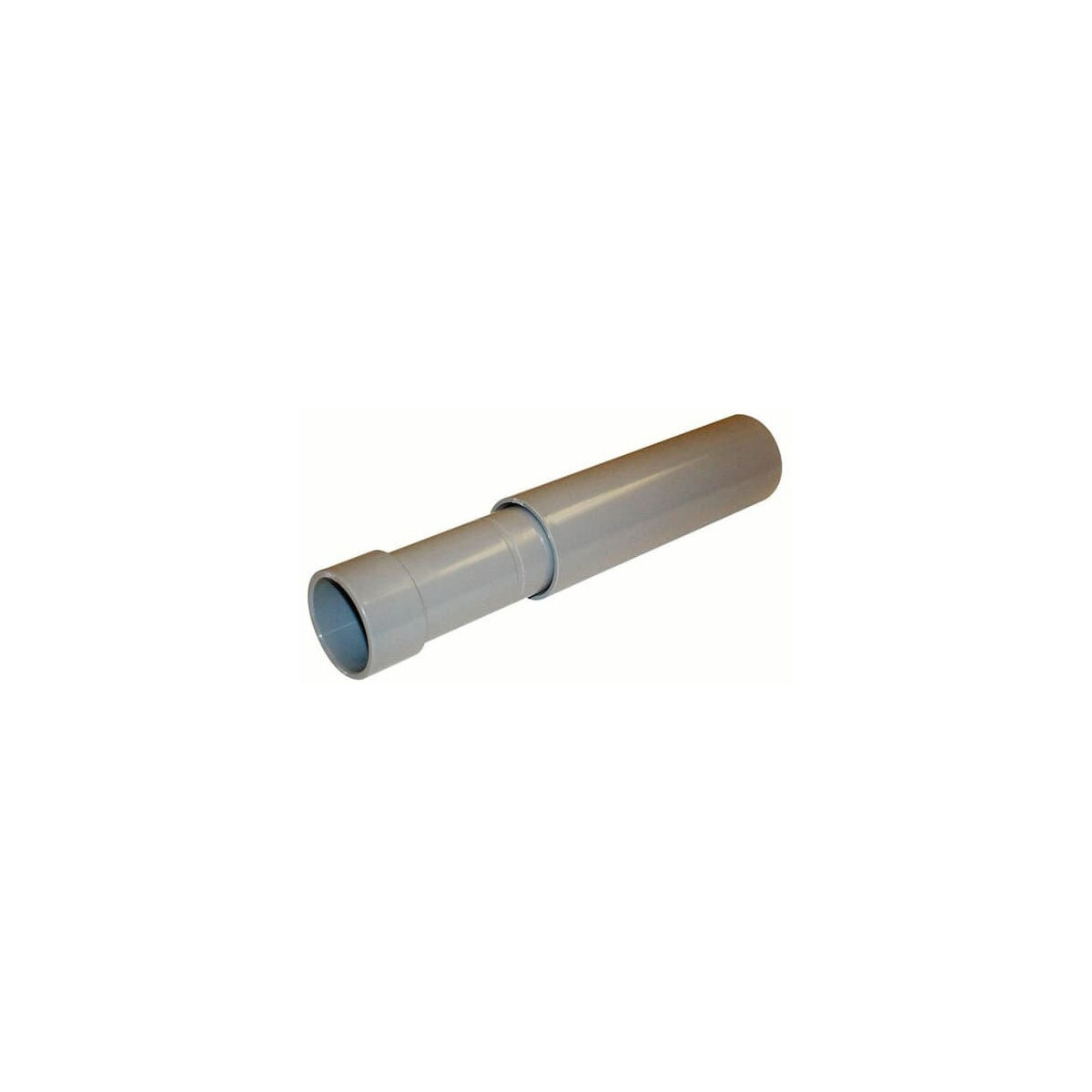

CARLON E945K 2-1/2 Inch SCH 40 Expansion Coupling
The CARLON E945K is a 2-1/2 inch Schedule 40 expansion coupling designed for use in electrical conduit systems. It compensates for length changes caused by temperature variations in exposed conduit runs, making it suitable for applications requiring reliable expansion fittings. This product is ideal for electrical distributors and switchgear suppliers needing durable and precise conduit solutions.
Specifications
- Size: 2-1/2 inches
- Material: PVC
- Color: Gray
- Travel Length: 8 inches
- Application: For use with Schedule 40 and 80 conduit
- Weight: 2.34 lbs
- UPC: 034481061274
- Country of Origin: United States (US)
- Standards: UL E23018
Features
- Exclusive molded-in mid-point indicator on the piston
- Two-piece molded design with lubricated seals for easier movement throughout product life
- Ridges on the fitting for easier installation (sizes 2"–6")
- Male terminal adapter end design (1/2"–2" NPT threads and 2-1/2"–6" NPSC threads)
- Two O-rings to prevent leakage
- Can be installed vertically or horizontally
