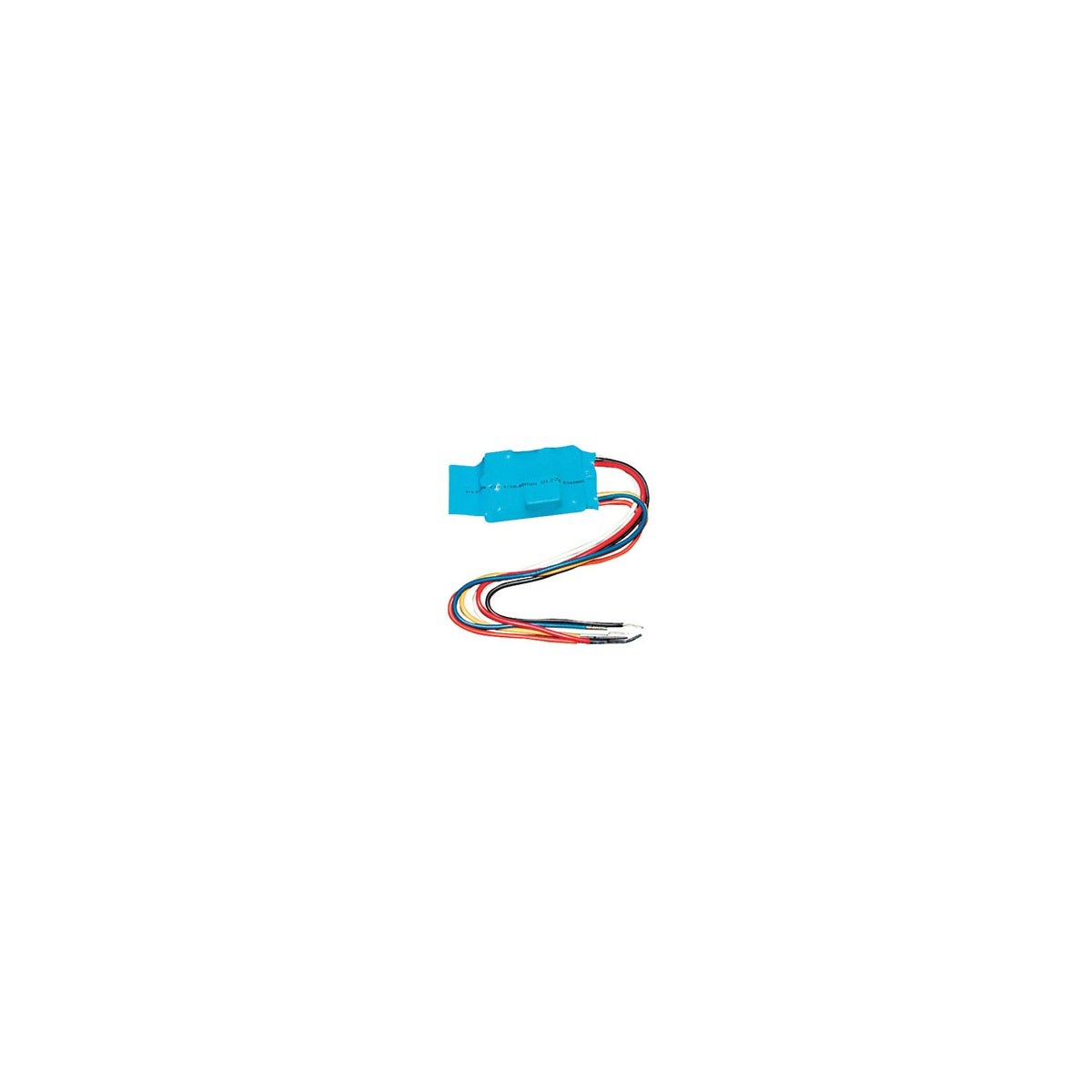

Carbon Monoxide Relay Module CO120X by Kidde

The Kidde Carbon Monoxide Relay Module CO120X is designed to activate auxiliary warning devices such as external bells, sirens, and hallway or stairwell lighting in response to a carbon monoxide alarm interconnect signal. This module is used in electrical distributor and lighting solutions applications where integration with Kidde CO alarms is required. It provides isolated, normally open and normally closed contacts without internal connection to 120 volts AC, ensuring safe operation within wire and cable systems. The module is intended for installation in UL listed junction boxes and is compatible with specific Kidde CO and CO/Smoke combo alarms.

Specifications

• Electrical Rating: 120V AC, 60 Hz, 0.08 Amp
• Contact Rating: 10 Amps @ 120 VAC (Non-Inductive)
• Contact Rating: 5 Amps @ 30 VDC
• Compatible Alarm Models: KN-COSM-I, KN-COSM-IB, KN-COSM-ICA, KN-COSM-IBCA, KN-COB-IC, KN-COB-IC-CA, KN-COB-ICB-CA, KN-COP-IC, KN-COP-IC-CA
• Product Weight: 4.1 lbs
• Operating Temperature Range: +40¬∞F (4.4¬∞C) to 100¬∞F (37.8¬∞C)
• Maximum Relative Humidity: 85%
• UPC: 047871612079

Features

• Activated only by Kidde Carbon Monoxide Alarm interconnect signal
• Isolated relay contacts with normally open and normally closed options
• Blue outer packaging for easy differentiation from smoke relay modules
• Deactivates upon receipt of a smoke interconnect signal to prevent false activation
• Designed for use with a single 120V AC 60 Hz power circuit that remains on 24/7
• Installation must comply with National Electrical Code (ANSI/NFPA 70) and NFPA 72
• Suitable for activating external warning devices such as bells, sirens, and lighting
• UL listed for installation in junction boxes with sufficient volume
• Wiring connections include AC hot, neutral, interconnect signal, common contact, normally closed, and normally open contacts
• Not intended for connecting groups of CO alarms to alarm panels or interconnecting groups of CO alarms
• Requires professional installation by licensed electricians
• One-year limited warranty covering defects in material, workmanship, or design
