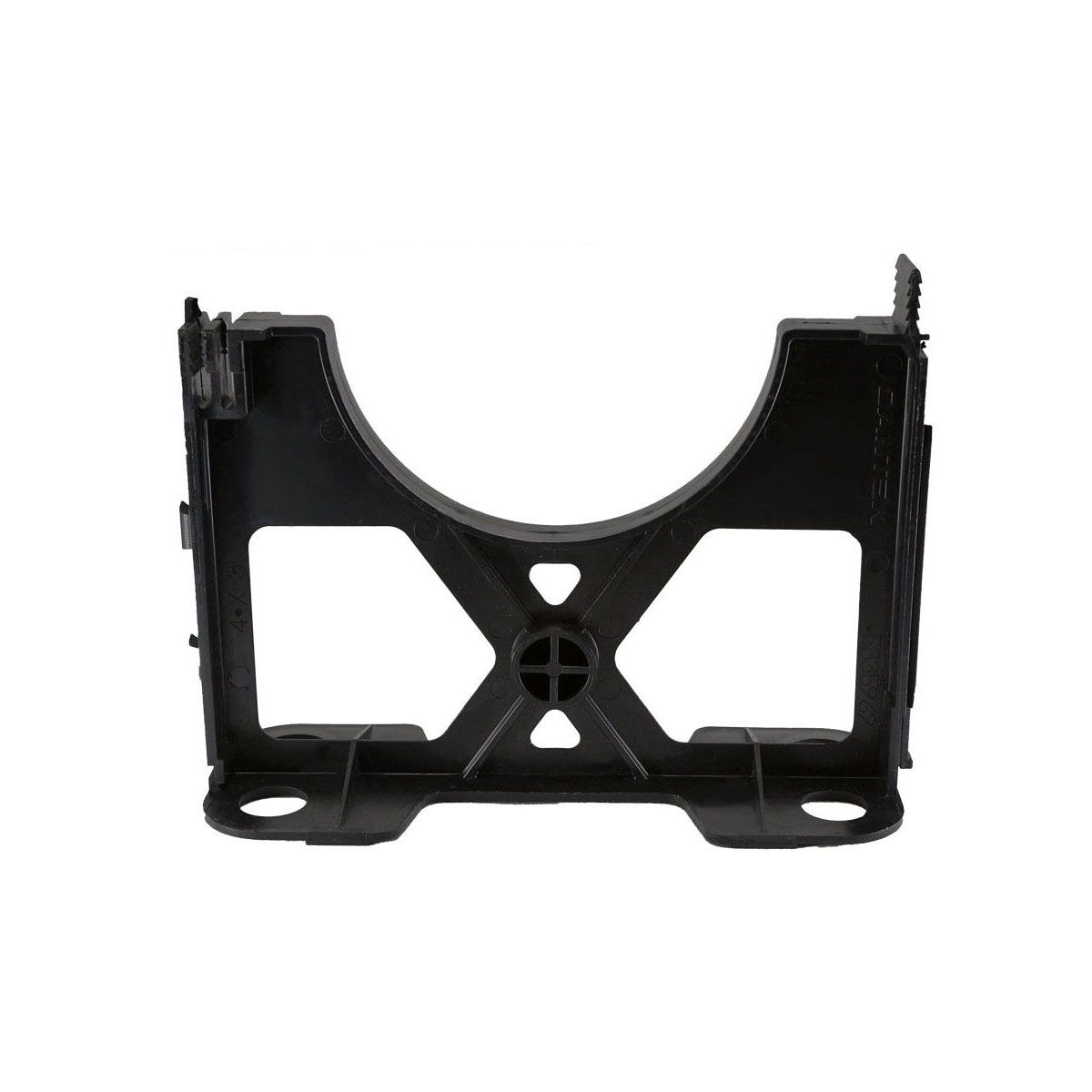

CANTEX 5335971 4 X 1IN BASE – Electrical Base Spacer

The CANTEX 5335971 4 x 1 inch Base Spacer is designed for creating concrete-encased bury duct banks that ensure strong, stable, and consistent duct separation. This component is suitable for electrical distributors and switchgear suppliers requiring reliable support for wire and cable conduit installations. It is compatible with all EB & DB and schedule 40 & 80 conduit when encased in cement, facilitating secure and efficient field assembly in lighting solutions and electrical infrastructure projects.

Specifications

• Manufacturer: Can-Tex Industries
• Manufacturer Part #: 5335971
• Size: 4 x 1 inch
• Weight: 0.23 lb
• Material: Polystyrene
• Dimensions (nominal):
  • "A": 5.938 in
  • "B": 5.250 in
  • "C": 3.000 in
  • "D": 0.500 in
  • "E": 5.625 in
  • "F": 5.875 in
  • "G": 1.000 in
  • "H": 3.000 in
  • "R": 2.313 in
• UPC: 088700538726

Features

• Vertical and horizontal interlocking for fast, secure field assembly
• Wide base plate provides solid support for the heaviest loads
• Compatible with EB & DB and schedule 40 & 80 conduit when encased in cement
• Only base and intermediate components needed—no banding required
• Strengthened webbing and cross beams for improved strength and rigidity
• Significantly improved crush test rating
• Added ¼ inch to each side of the base for enhanced stability
• Made in USA
