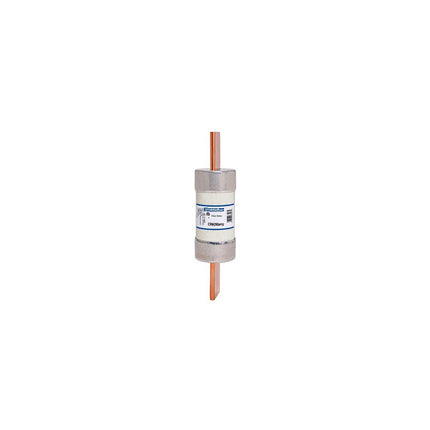

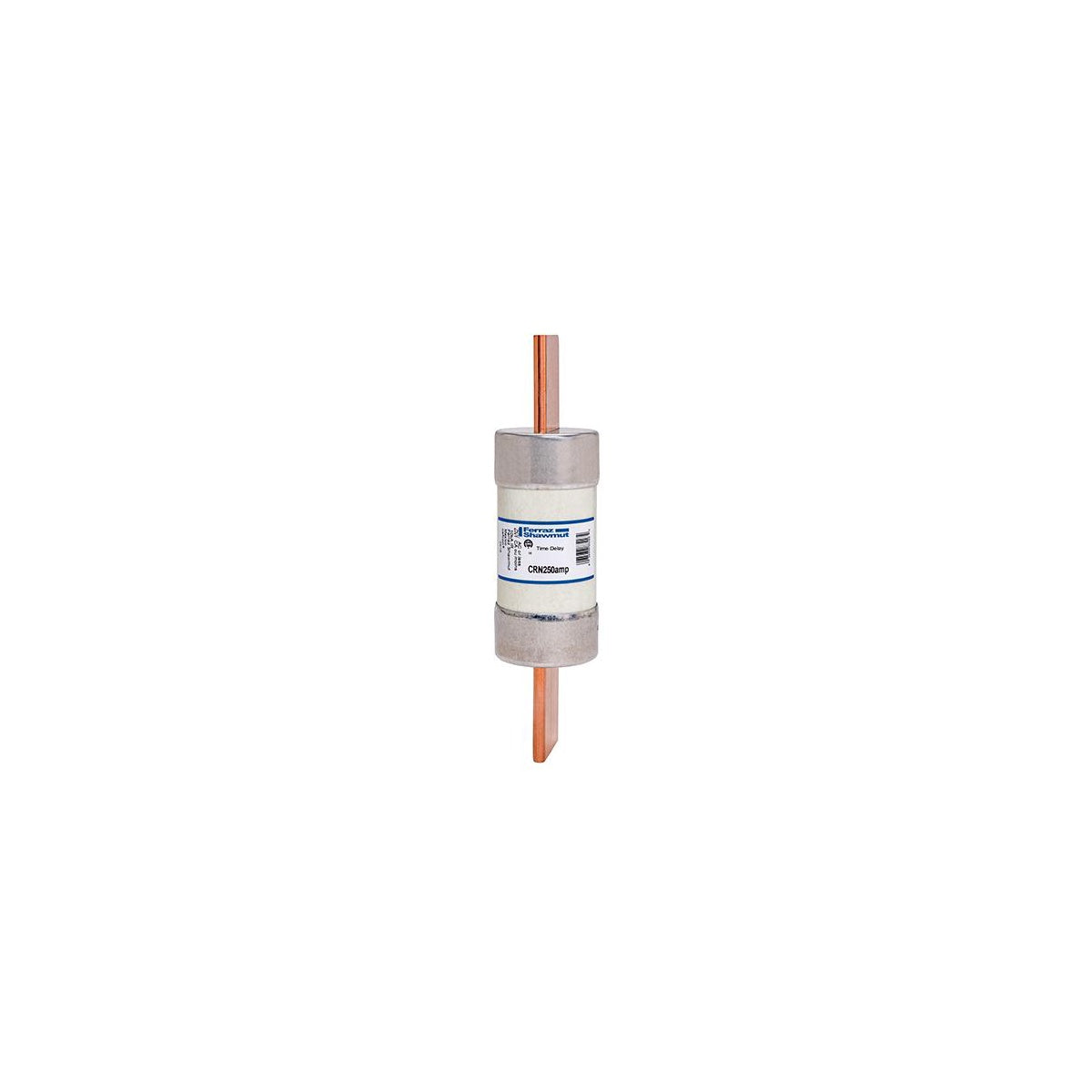

Canadian Fuse 250V 250A Blade Mount CRN - Class H Series
SKU: #386479
Part: #CRN250
UPC: 068938834203
Canadian Fuse 250V 250A Blade Mount CRN - Class H Series
SKU: #386479
Part: #CRN250
UPC: 068938834203
Description
Canadian Fuse 250V 250A Blade Mount CRN - Class H Series Fuse
The Mersen Canadian Fuse 250V 250A Blade Mount CRN is a Class H time delay fuse designed for electrical distribution and switchgear applications. It meets the Canadian Electrical Code requirement for low melting-point fuses and is suitable for use in lighting solutions, wire and cable protection, and general electrical circuits requiring reliable short circuit interruption. This fuse features a 10kA short circuit rating to ensure safety and performance in demanding environments.
Specifications
- Voltage Rating: 250VAC
- Current Rating: 250A
- Fuse Class: Class H
- Short Circuit Rating: 10kA I.R. AC
- Mounting Type: Clip
- Insulation Material: Paper
- Diameter: 2.06 inches
- Product Weight: 1.45 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: CRN250
Features
- Type D standard fuse compliant with Canadian Electrical Code
- Time delay design for temporary overload tolerance
- Blade mount configuration for secure and easy installation
- CSA certified for safety and reliability
