Cable to Steel Mold HTC2G – Exothermic Welding Mold for Electrical Grounding

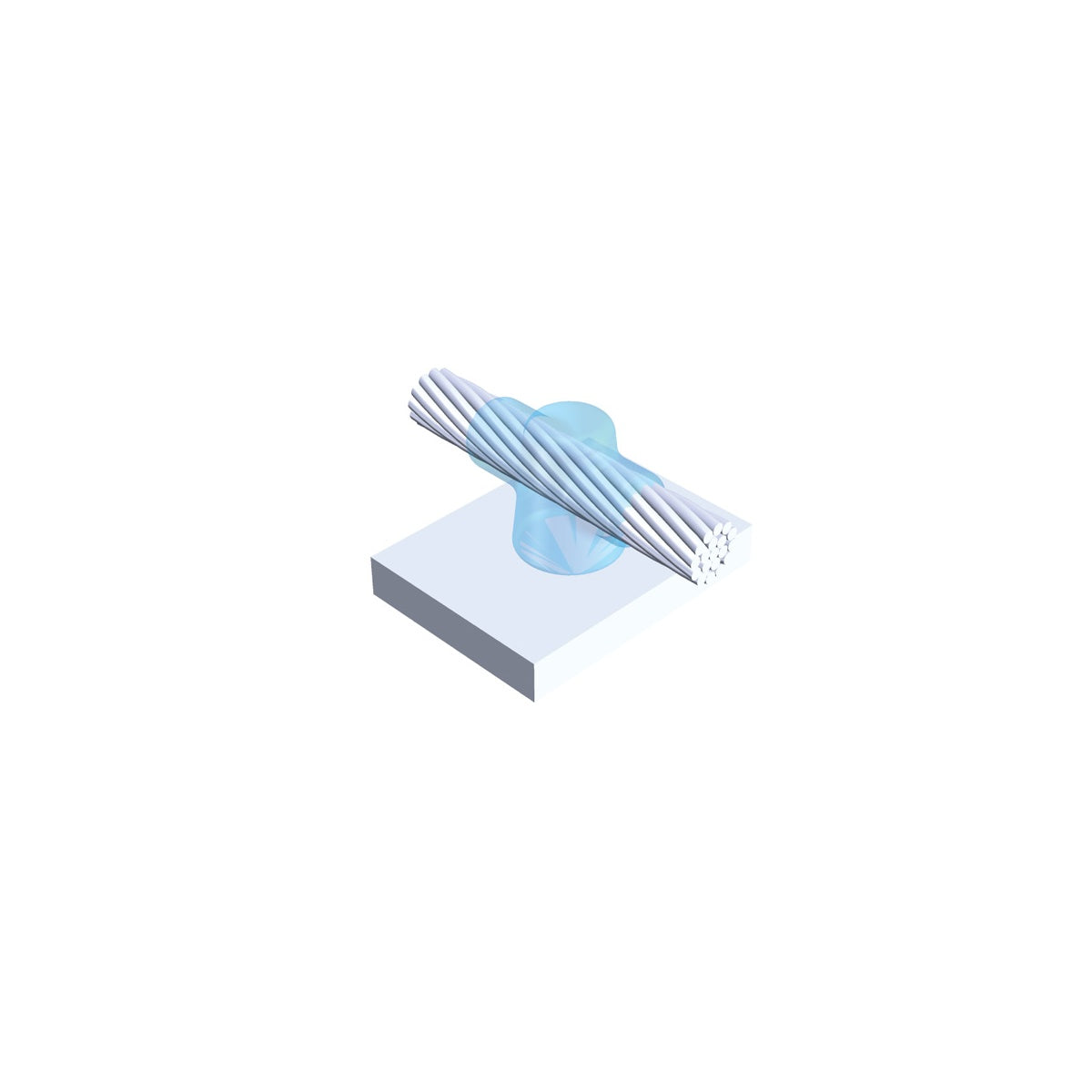

The Cable to Steel Mold HTC2G by nVent Erico is a precision-engineered graphite mold designed for exothermic welding connections between copper conductors and steel surfaces. This mold is ideal for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring reliable grounding connections. The HTC2G mold supports 2/0 size conductors and connects securely to flat surfaces or steel pipes, facilitating permanent, corrosion-resistant electrical bonds essential for grounding and lightning protection systems.

Specifications

• Manufacturer: nVent Erico
• Manufacturer Part #: HTC2G
• Conductor Size: 2/0 Concentric
• Connects To: Flat Surface or Steel Pipe
• Pipe Diameter: 30 inches and Larger
• Welding Material Required: 115 or 115PLUSF20
• Ease of Use: Preferred
• Handle Clamp Required: L160
• Outer Diameter: 24 inches
• Product Weight: 1.32 lbs
• Certifications: CULus

Features

• Graphite mold designed for exothermic welding of copper to steel surfaces.
• Preferred ease of use with L160 handle clamp for secure mold assembly.
• Compatible with 115 or 115PLUSF20 welding material for reliable, permanent connections.
• Suitable for flat surfaces and steel pipes 30 inches or larger in diameter.
• Certified to meet CULus standards ensuring safety and quality compliance.
• Lightweight design at 1.32 lbs for ease of handling during installation.
