Cable to Steel - Exothermic Welding Mold by nVent Erico

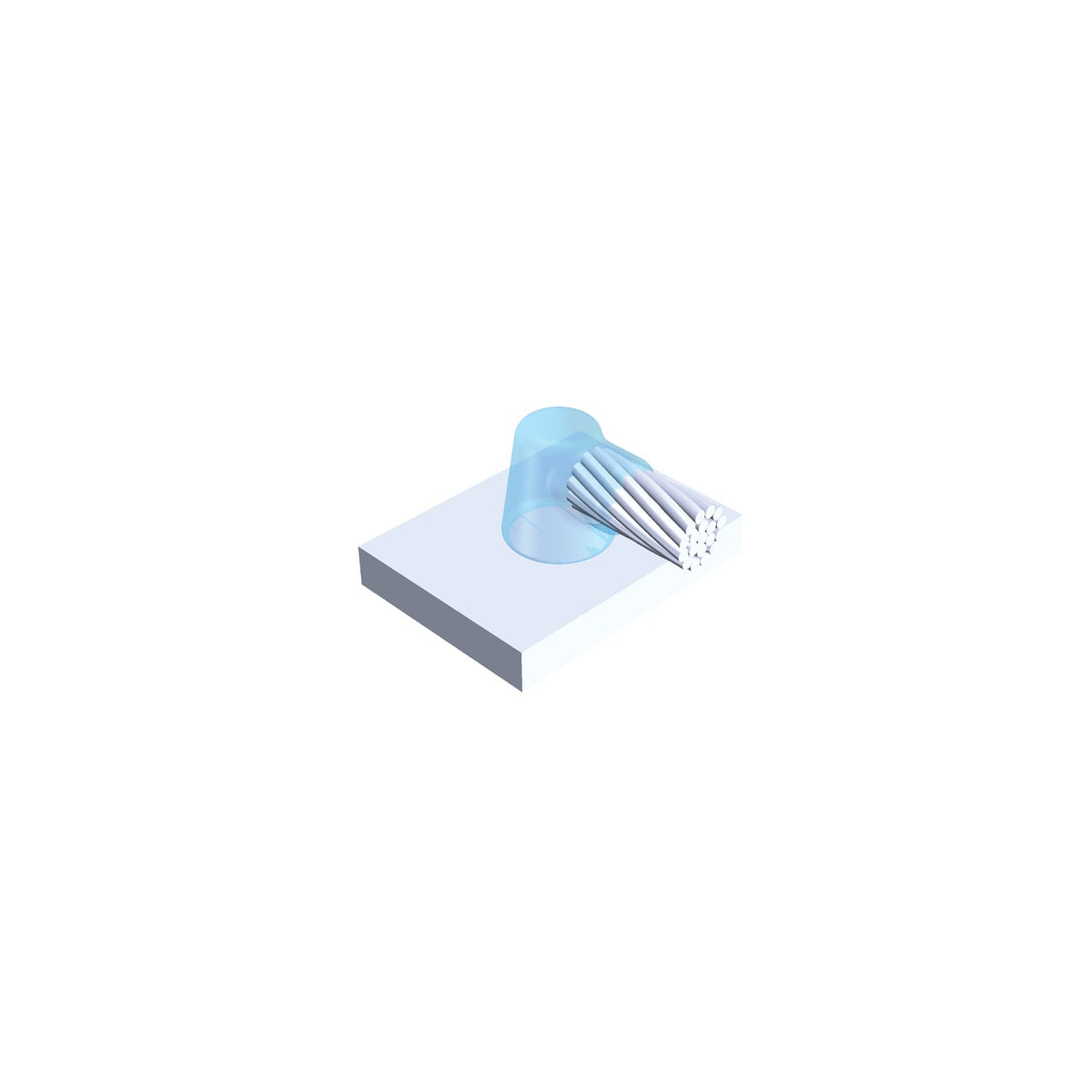

The Cable to Steel mold (part number HSC2VW) by nVent Erico is designed for making permanent electrical connections between concentric stranded copper cables and flat steel surfaces or steel pipes. This exothermic welding mold is suitable for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable grounding and bonding connections. It ensures a high-quality, durable bond with minimal maintenance.

Specifications

• Manufacturer: nVent Erico
• Manufacturer Part #: HSC2VW
• Connects To: Flat Surface
• Outer Diameter: 24 inches
• Product Weight: 1.32 lbs
• Certifications: CULus
• Ease of Use: Preferred
• Kit Included: No

Features

• Designed for horizontal concentric copper conductor to flat steel surface or top of horizontal pipe connections.
• Compatible with Cadweld exothermic welding process ensuring a permanent, corrosion-resistant electrical connection.
• Includes graphite mold designed for use with specified welding materials per manufacturer guidelines.
• Requires handle clamps (L160 or L159) and flint ignitor (T320) for installation.
• Provides reliable grounding connections compliant with industry standards.
• Recommended for use with cable sizes up to 350 kcmil with corresponding weld metal specifications.
