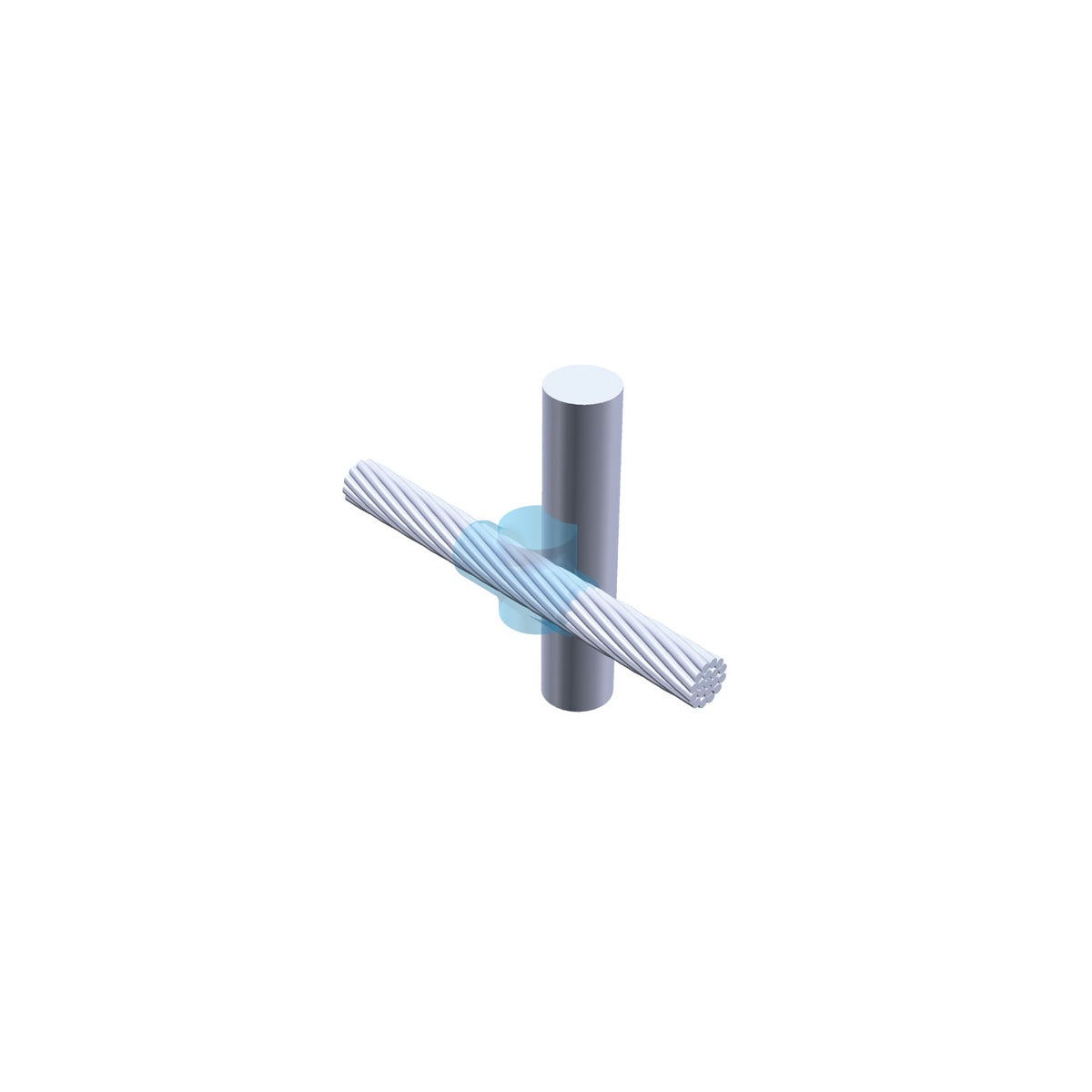

Cable to Ground Rod or Other Rounds - Exothermic Grounding Connection

The nVent ERICO Cable to Ground Rod or Other Rounds mold (Manufacturer Part # GYF183Q) is designed for making permanent, high-quality electrical grounding connections using the Cadweld exothermic welding system. This product is intended for use by electrical distributors, lighting solution providers, wire and cable specialists, and switchgear suppliers requiring reliable grounding connections to copper-bonded ground rods. The exothermic welding process ensures a strong, corrosion-resistant bond between conductors and copper-bonded ground rods suitable for direct burial or exposure to harsh environments.

Specifications

• Manufacturer: nVent Erico
• Manufacturer Part #: GYF183Q
• Ground Rod Type: Copper-Bonded
• Ground Rod Diameter (Nominal): 3/4”
• Ground Rod Diameter (Actual): 0.682”
• Conductor Size: 500 kcmil Concentric
• Welding Material: 500 or 500PLUSF20
• Ease of Use: Preferred
• Handle Clamp: L159
• Product Weight: 6.8 lbs
• UPC: 782856595083
• Kit: No

Features

• Exothermic welding system provides permanent, high-integrity electrical connections without external power or heat sources.
• Designed specifically for copper-bonded ground rods, ensuring optimal compatibility and performance.
• Preferred ease of use rating with ergonomic L159 handle clamp for secure mold closure and reliable weld quality.
• Suitable for direct burial applications and exposure to earth or concrete without degradation over the grounding system’s lifetime.
• Compatible with 500 or 500PLUSF20 welding materials for consistent weld metal quality.
• Meets industry standards for grounding connections, ensuring safety and reliability in electrical installations.
