Cable to Cable, Heavy Duty - Exothermic Welding Mold

The nVent ERICO Cable to Cable, Heavy Duty mold is designed for creating permanent, low resistance electrical connections between heavy gauge cables. This product is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connections in demanding environments. It facilitates molecular bonding through the Cadweld exothermic welding process, ensuring connections with the same current capacity as the conductors. The mold is preferred for ease of use and is ideal for lighting solutions and electrical distribution applications where durable cable splices are essential.

Specifications

• Manufacturer Part #: HDTAC3Q1V
• Mold Family: TA

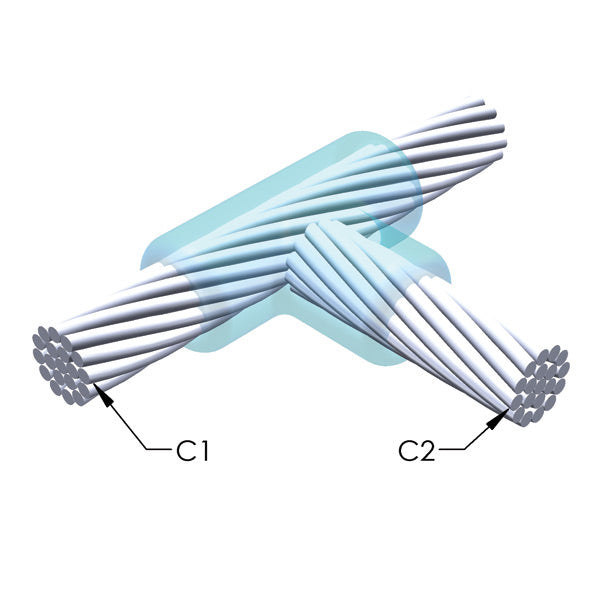

• Conductor 1: 500 kcmil Concentric
• Conductor 1 Outer Diameter, Nominal: 0.813"
• Conductor 2: #2 Concentric
• Conductor 2 Outer Diameter, Nominal: 0.292"
• Mold Only: No
• Product Weight: 1.32 lbs
• UPC: 782856542261

Features

• Forms a permanent, low resistance connection
• Provides a molecular bond
• Rated with the same current capacity as the conductor
• Portable installation equipment with no external power source required
• Easy to train installers for Cadweld exothermic connections
• Connections can be visually inspected
• Heavy duty design for reclaimed cable and copper-coated steel conductor connections
• Reduces cable cleaning requirements and increases reliability under adverse field conditions
