Cable Protector Fuse 600V 250 MCM CU Cable To Blade Mount CP Series
SKU: #196155
Part: #CP250C3
UPC: 782001938741
Cable Protector Fuse 600V 250 MCM CU Cable To Blade Mount CP Series
SKU: #196155
Part: #CP250C3
UPC: 782001938741
Description
Cable Protector Fuse 600V 250 MCM CU Cable To Blade Mount CP Series - Cable Protection

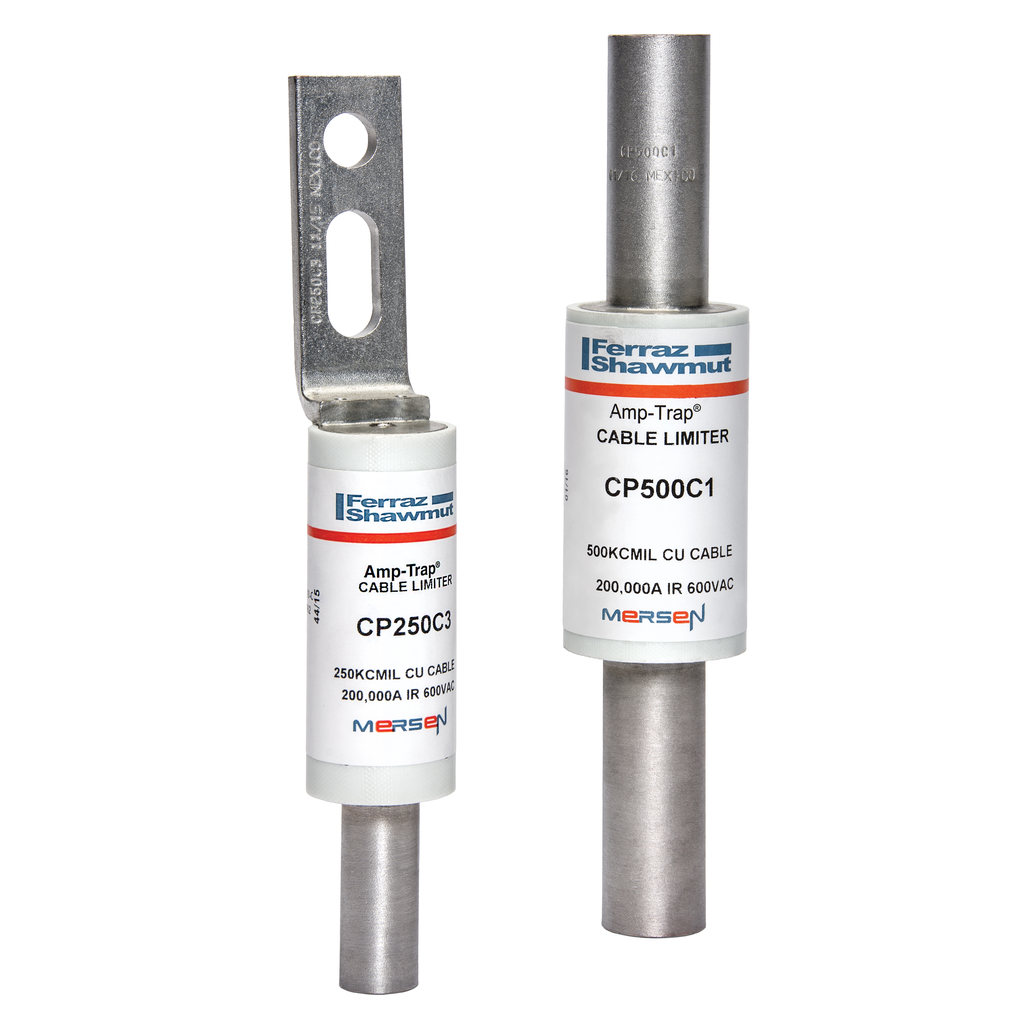

Mersen Cable Protector Fuse CP250C3 is a specialized current-limiting device designed for service entrance and distribution runs in electrical systems. It is crimped or bolted to copper cables to quickly clear and isolate faults, enhancing system reliability. Rated for 600VAC and a 200kA interrupting rating, this protector carries low cable overloads managed by standard protective devices. Suitable for copper cables sized at 250 MCM, it is compatible with blade-to-cable connections and features heat shrinkable tubing options for field installation.
Specifications
- Application: Service entrance and distribution runs
- Interrupt Rating: 200 kA
- Voltage Rating: 600VAC
- Cable Size: 250 MCM Copper
- Connection: Blade To Cable
- Mounting Type: Bolted (Crimp and Bolted)
- Dimensions (L×W×H): 9 in × 1.44 in × 1.44 in
- Diameter: 1.44 inches
- Max Operating Temperature: 80 degrees Celsius
- Product Weight: 1.34 lbs
- Manufacturer Part #: CP250C3
- Country of Origin: Mexico
Features
- Current-limiting device with 200,000A interrupting rating
- Crimp and bolted mounting for secure installation
- Heat shrinkable tubing option for insulation and protection in field
- Designed to carry low cable overloads handled by standard protective devices
- Compatible with copper cables and blade connections
- Enhances reliability of electrical distribution and service entrance systems
