Cable Protector Fuse 600V 1/0 CU Cable To Cable Mount CP Series
SKU: #196148
Part: #CP1/0C1
UPC: 782001932282
Cable Protector Fuse 600V 1/0 CU Cable To Cable Mount CP Series
SKU: #196148
Part: #CP1/0C1
UPC: 782001932282
Description

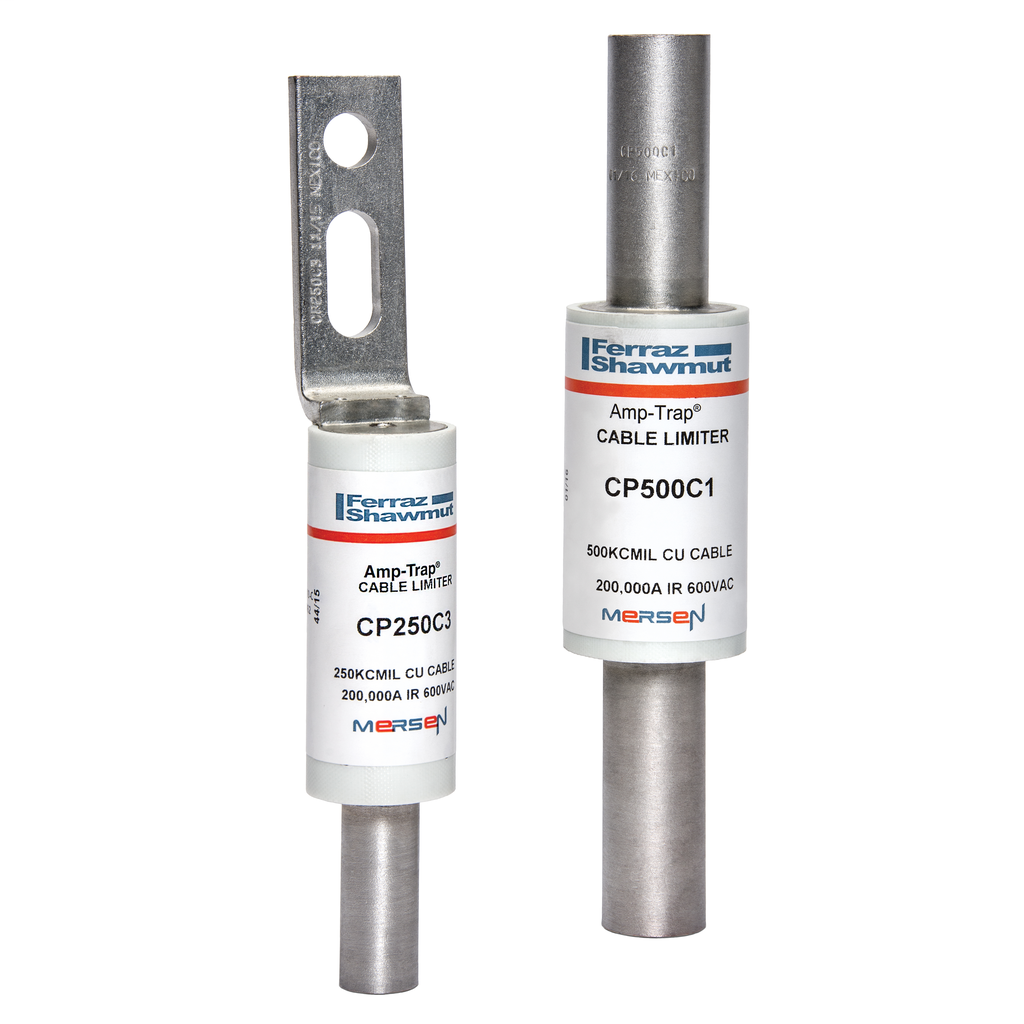

Cable Protector Fuse 600V 1/0 CU Cable To Cable Mount CP Series – Electrical Cable Protection
The Mersen Cable Protector Fuse CP Series is designed for service entrance and distribution runs, providing reliable fault clearing and isolation in electrical systems. As a current-limiting device with a 200,000A interrupting rating, it enhances the safety and reliability of wire and cable installations. This product is suitable for electrical distributors and switchgear suppliers seeking robust protection solutions for copper cable connections.
Specifications
- Application: Service entrance and distribution runs
- Voltage Rating: 600 VAC
- Interrupt Rating: 200 kA
- Connection Type: Cable to Cable
- Mounting Type: Crimp
- Dimensions (L x W x H): 7.12 in x 1.44 in x 1.44 in
- Diameter: 1.44 inches
- Maximum Operating Temperature: 80 degrees Celsius
- Product Weight: 1.1 lbs
- Country of Origin: Mexico
- Manufacturer: Mersen
- Manufacturer Part Number: CP1/0C1
Features
- Current-limiting cable protector with high interrupting rating for fault isolation
- Fiberglass body ensures dimensional stability in harsh environments
- Catalog number permanently stamped into terminal for identification
- Crimp terminals include oxide inhibitor for aluminum cable compatibility
- Compatible with heat shrinkable (HS) tubing for field insulation and protection
- Permitted by the National Electrical Code®
