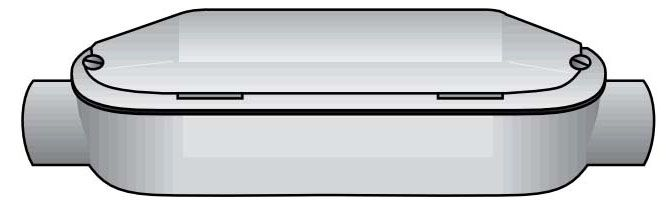

C8X-400M, IMC/Rigid Conduit Body for Electrical Distributor Applications

The C8X-400M IMC/Rigid Conduit Body by O-Z Gedney is designed for use with rigid conduit and intermediate metal conduit (IMC) systems. It provides access for pulling, splicing, maintenance, and future upgrades of large and heavy conductors. This conduit body allows connection of straight conduit runs, branch conduit runs, and 90° bends, making it suitable for a wide range of electrical distributor and lighting solutions applications.

Specifications

• Name: C8X-400M, IMC/Rigid Conduit Body
• Application: For Rigid Conduit And IMC
• Material: Malleable Iron
• Finish: Triple coat: Zinc Electroplated, Dichromate, Epoxy Powder Coat
• Hub Size: 4 inches
• Dimensions: Length - 4 in, Width - 5.63 in, Height - 7-1/2 in
• Product Weight: 65.0000 (units not specified)
• Manufacturer: O-Z Gedney
• Manufacturer Part #: C8X-400M

Features

• Roomy interior providing more wiring space for easier conductor pulling and splicing.
• Smooth, rounded integral bushings in hubs to protect conductor insulation.
• Accurately tapped, tapered threads ensuring tight, rigid joints and excellent ground continuity.
• Durable malleable iron construction with a triple coat finish for enhanced corrosion resistance and longevity.
• Compatible with rigid conduit and IMC systems, suitable for electrical distributors and switchgear suppliers.
