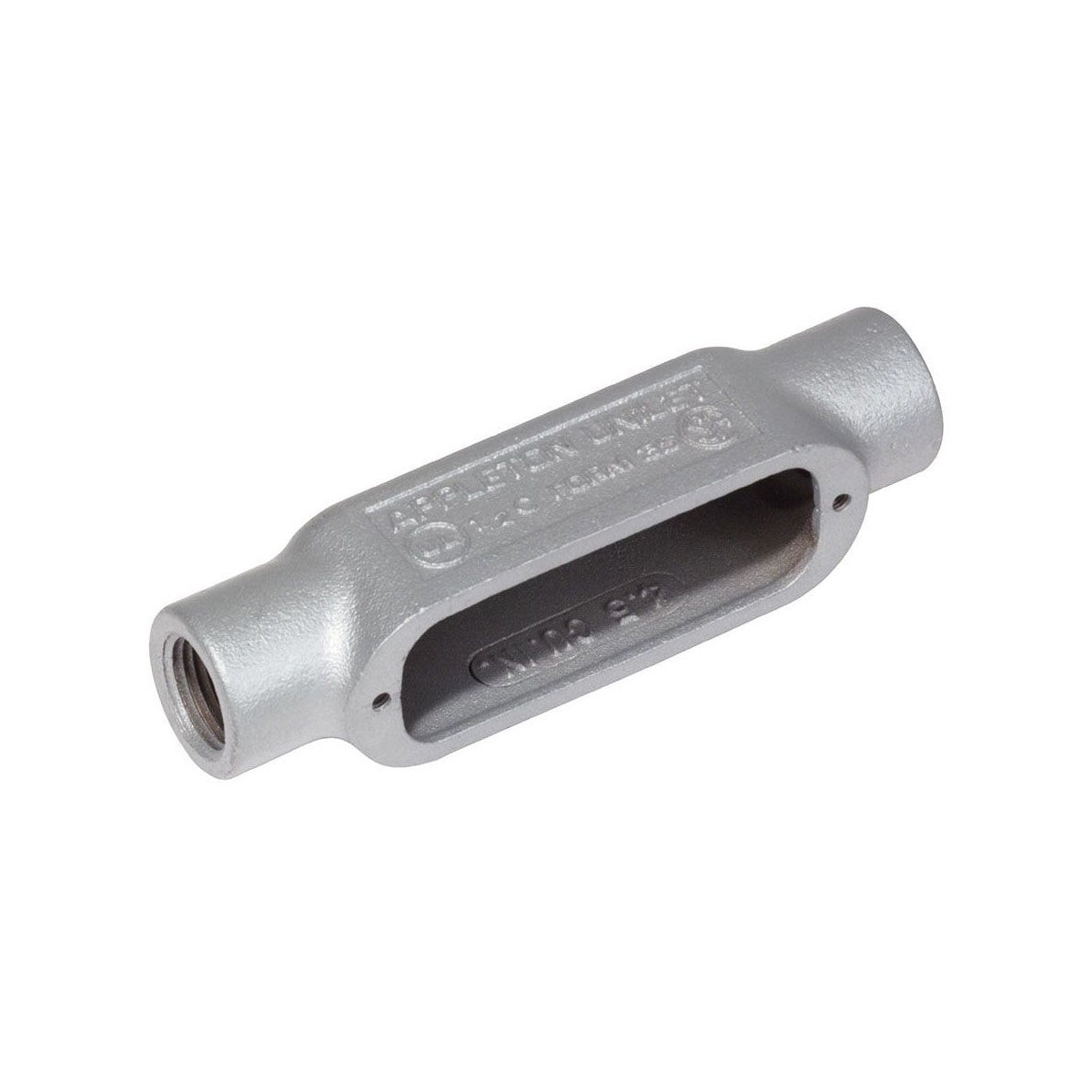

C400M, IMC/Rigid Conduit Outlet Body – Malleable Iron Conduit Outlet Body

Appleton‚Ñ¢ C400M is a Form 35‚Ñ¢ malleable iron conduit outlet body designed for use with IMC and rigid conduit systems. It is used to connect and change the direction of conduit runs, make bends, provide openings for splicing, and allow connections for branch runs. This conduit outlet body serves as a pulling fitting and permits access to conductors for maintenance and splicing, making it suitable for electrical distributors and switchgear suppliers managing wire and cable installations.

Specifications

• Material: Chromate finish on malleable iron
• Installation: Taper Threaded
• Product Weight: 19.03 lbs
• Manufacturer: Appleton
• Manufacturer Part Number: C400M
• UPC: 781381165952

Features

• High tensile strength and ductility with malleable iron construction
• Triple-coat finish: zinc electroplate, chromate, and epoxy powder coat for corrosion resistance
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Smooth, rounded integral bushings in hubs protect conductor insulation
• Designed for use with rigid steel, rigid aluminum, and IMC conduit
• Permits easy access for conductor splicing and maintenance
