C200M, IMC/Rigid Conduit Outlet Body
SKU: #66327
Part: #C200M
UPC: 781381165600
C200M, IMC/Rigid Conduit Outlet Body
SKU: #66327
Part: #C200M
UPC: 781381165600
Description

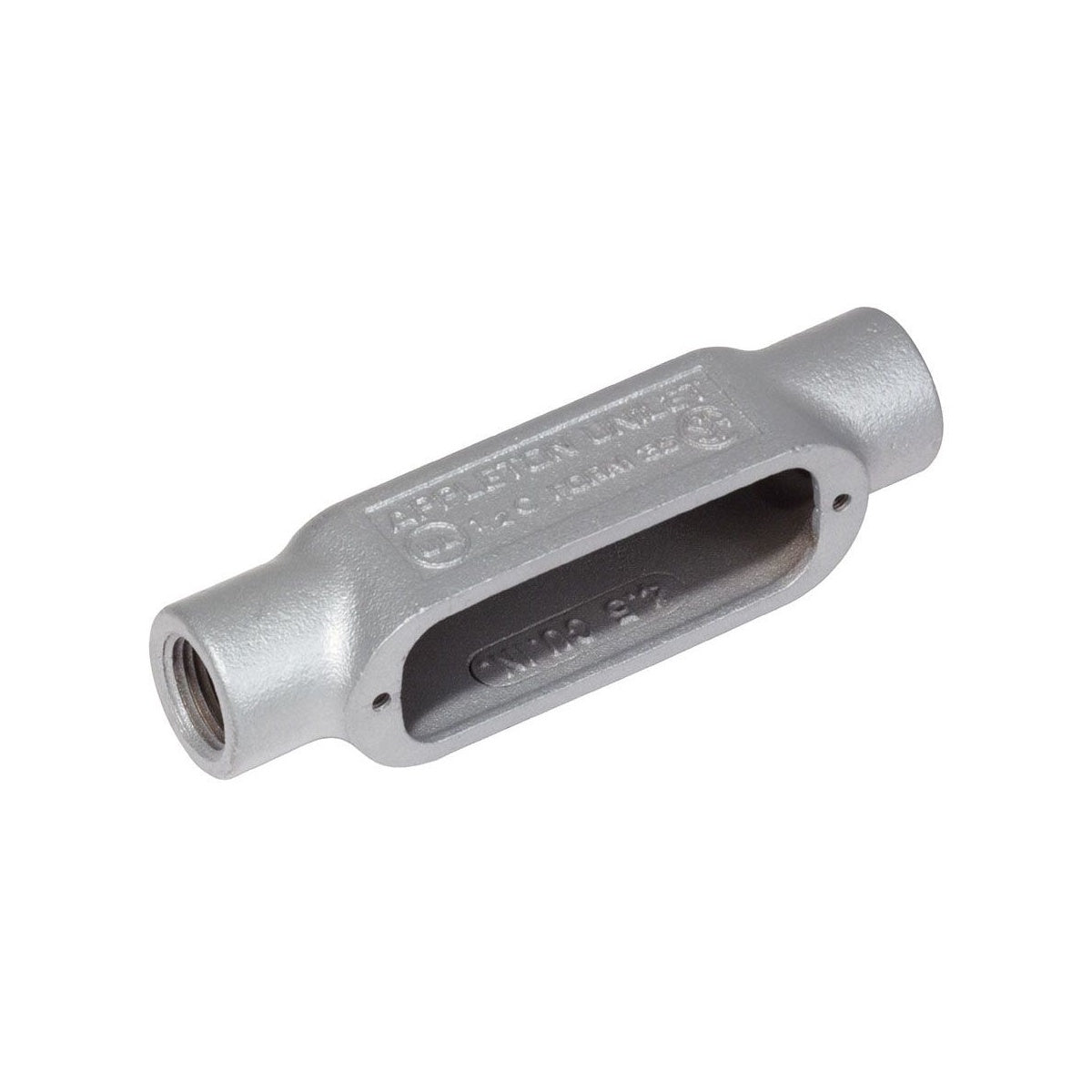

C200M, IMC/Rigid Conduit Outlet Body – Malleable Iron Conduit Outlet Body
The Appleton‚Ñ¢ C200M IMC/Rigid Conduit Outlet Body is a Form 35‚Ñ¢ malleable iron conduit outlet body designed for connecting and changing the direction of conduit runs in electrical conduit systems. It serves as a pulling fitting, allows for branch connections, and provides access for splicing and maintenance of conductors. This product is suitable for use with IMC and rigid steel conduit and is ideal for electrical distributors and switchgear suppliers seeking reliable conduit solutions.
Specifications
- Material: Chromate
- Installation: Taper Threaded
- Product Weight: 2.63 lbs
- Manufacturer: Appleton
- Manufacturer Part #: C200M
Features
- Form 35‚Ñ¢ malleable iron construction provides high tensile strength, ductility, corrosion resistance, and impact/shock resistance.
- Used to connect and change direction of conduit runs, enabling branch connections and conductor access.
- Serves as a pulling fitting to facilitate cable installation.
- Smooth, rounded integral bushings protect conductor insulation.
- Accurately tapped, tapered threads ensure tight, rigid joints and excellent ground continuity.
- Triple-coat finish: zinc electroplate, chromate, and epoxy powder coat for enhanced corrosion protection.
