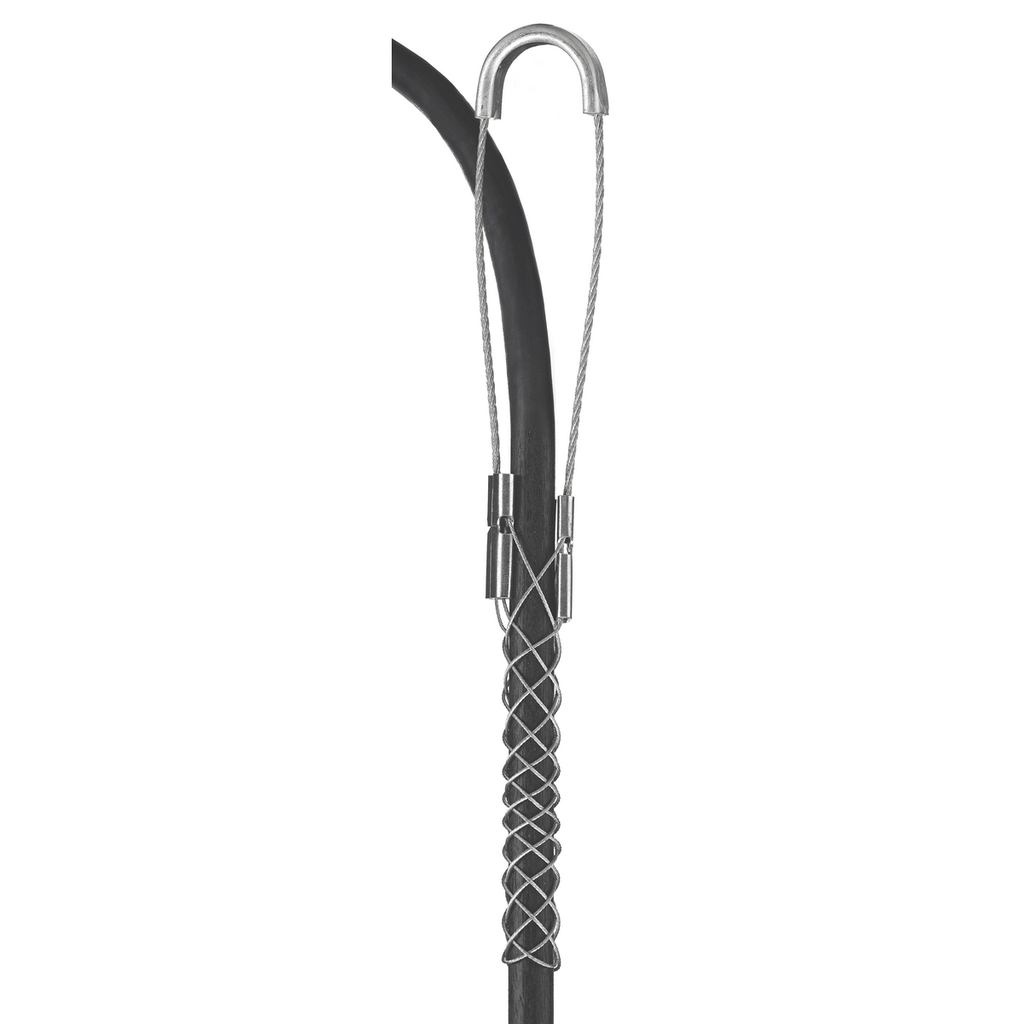

Bus Drop Support Grips, Single Eye, Wide Range, Galvanized Steel, 1.00-1.25"
SKU: #135424
Part: #073041282
UPC: 783585330228
Bus Drop Support Grips, Single Eye, Wide Range, Galvanized Steel, 1.00-1.25"
SKU: #135424
Part: #073041282
UPC: 783585330228
Total Price: $38.20 per each Sold in increments of 1 each
Description
Bus Drop Support Grips, Single Eye, Wide Range, Galvanized Steel, 1.00-1.25" – Bus Drop Cable Support

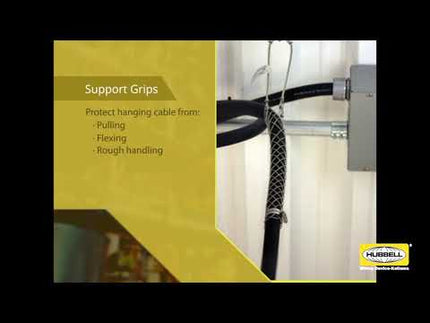

Bus Drop Support Grips are designed to provide secure and economical support for flexible cord or bus drop cable at bus ducts and other industrial areas. This product is ideal for electrical distributors and switchgear suppliers seeking reliable wire and cable support solutions. Made of galvanized steel with a patented wide range woven mesh construction, the grip absorbs tension, vibration, and pull without damaging cables. Suitable for indoor use, it features mounting options including locknut or tapped hole installation.
Specifications
- Application: Single Eye
- Material: Steel, Galvanized
- Construction: Woven
- Mounting: Locknut or Tapped Hole
- Color: Metallic
- Width: 2.5 in
- Cable Diameter Range: 1.00-1.25 in (2.54-3.17 cm)
- Approximate Breaking Strength: 1,500 lbs (6,672 N)
- Working Load: 150 lbs (667.2 N)
- Industry Standard: UL Listed
- RoHS Compliance: Yes
- UPC: 783585330228
- Manufacturer Part #: 073041282
- Country of Origin: China
- Product Weight: 0.15 lbs
Features
- Provides support for flexible cord or bus drop cable at bus duct
- Absorbs tension, vibration, and pull with no cable damage
- Patented wide range woven mesh construction for durability
- Easy installation with locknut or tapped hole mounting
