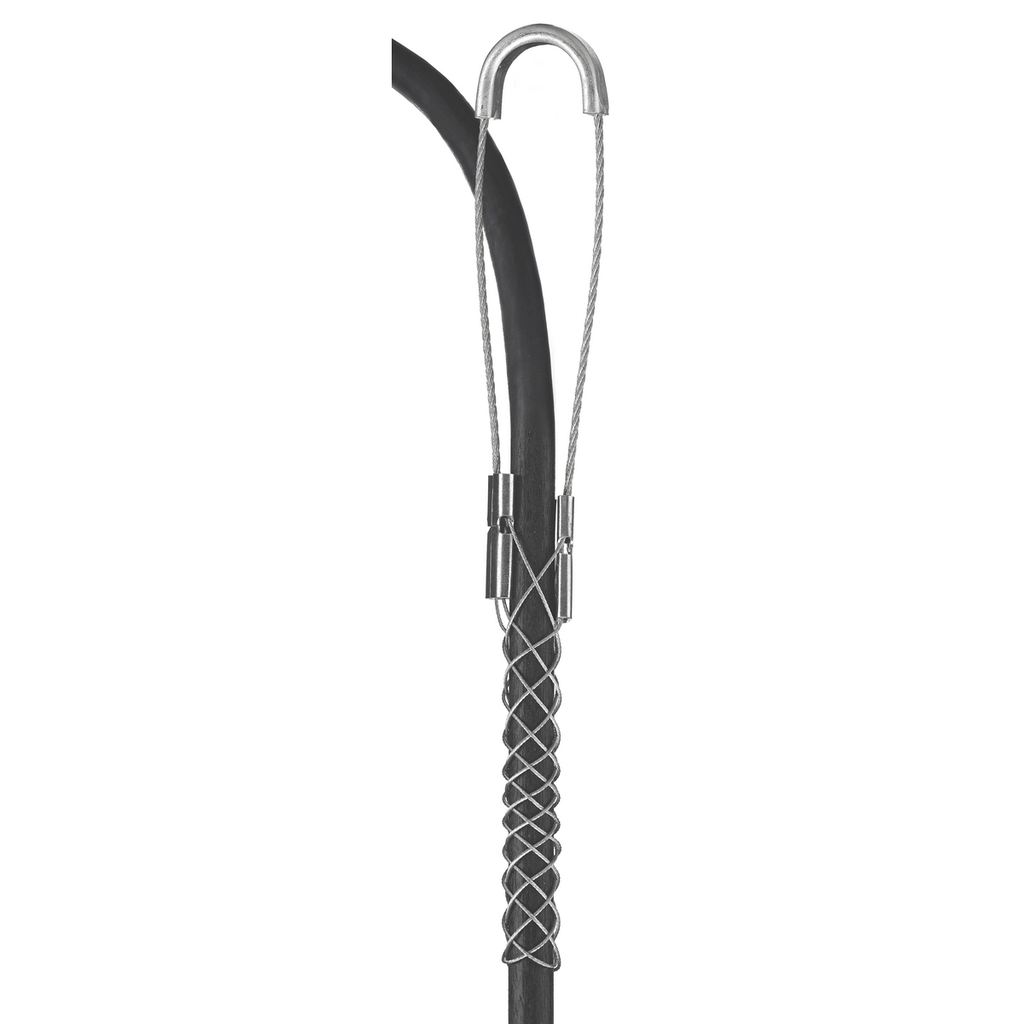

Features

• Provide support for flexible cord or bus drop cable at bus duct
• Absorb tension, vibration and pull with no cable damage
• Patented mesh construction
• Closed Mesh

Specifications

• Country of Origin: China
• Approx Breaking Strength: 1,000 lb.
• Cable Diameter Range: 0.56 in-0.73 in
• Width: 1.230 in
• Each - Width: 1.230 in
• Industry Standard(s): UL Listed
• Performance: Mechanical - Approximate Breaking Strength - 1,000 (4,448);Mechanical - Working Load - 100 (444.8) Lbs. (N)
• Standards - RoHS Compliance Status: CM
• Application: Single Eye
• Cable Size: .56"-.73" (1.42-1.85)
• Special Features: Closed Mesh
• Standard: UL Listed
• Type: Single Eye
• Style: Closed Mesh, Single Weave
• Class Code: A52
• Description - Invoice: SGL EYE, BUS DROP GRIP, .56-.73"
• Freight Class Code: 06168002
• Harmonization Code: 7326200090
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A52A480
• Material - Mounting Hardware: Locknut or Tapped Hole
• Construction: Woven
• Material: Steel, Galvanized
• Series: Bus Drop
• Base Unit of Measure: EA
• BOX SIZE: 3.600x18.100x6.500 (in)
• Carton - Gross Weight per Pack: 1.600 lb.
• Carton - Number of Sub Packs: 20
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585330198
• Carton - Total Units: 20 EA
• Case - Total Units: 300 EA
• Case Weight: 26.450 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 38.700 in
• Pallet Length: 48.000 in
• Pallet Weight: 233.550 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
