Features

• Compression Busbar Connector
• Easier to use than Exothermic Connections
• Ideally suited for cellular tower applications.

Specifications

General

• Application: For Direct Barial And Cellular Tower Applicatons And Is Easier To Use Than Exothermic Connections
• Connector Type: Tap
• Material: Copper Alloy
• Physical Attribute - Number of Crimps Required: 1
• Plated: N
• Plating Type: Unplated
• Prefilled Oxide Inhibitor: Y
• Sub Brand: HYGROUND
• Trade Name: HYGROUND®
• Type: YG-B
• UPC: 781810289273
• UPC 12 Digit: 7818102892733

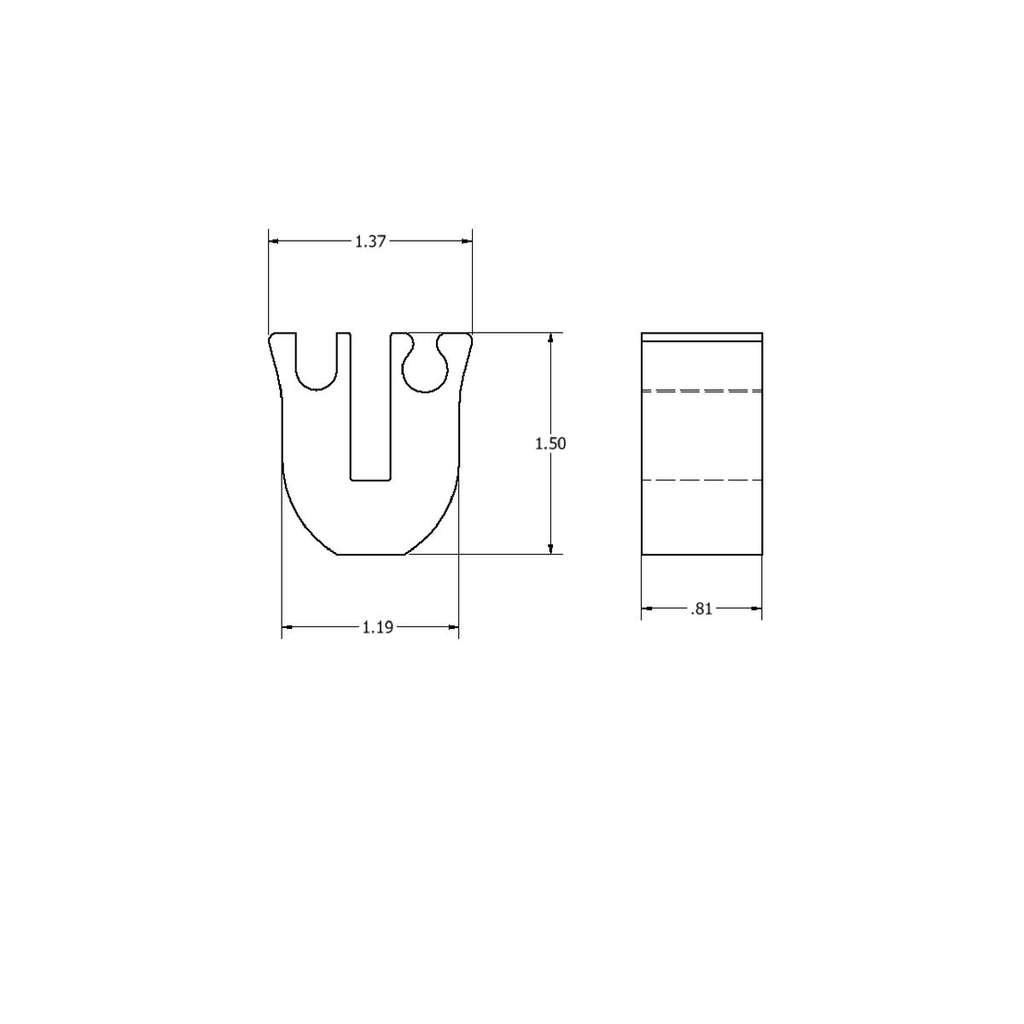

Dimensions

• Dimension - B Length fraction: 64/79 in
• Dimension - B Length inch: 0.81 in
• Dimension - Bus Bar Size Tap Side inch: 4/0 AWG Str. to 1/0 AWG Str. Copper
• Dimension - Pad Width inch: 1.50 in

Conductor Related

• Conductor - Copper Solid Run: 1/8" - 1/4" Busbar
• Conductor - Copper Solid Tap: 4/0 AWG
• Conductor - Copper Solid Tap Range: 4/0 AWG
• Conductor - Copper Str Tap: 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
• Conductor - Copper Str Tap Range: 1/0-4/0

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Listed Direct Burial: Yes
• Certification - UL Recognized: No
• Certification - cULus: Yes
• Standards - RoHS Compliance Status: CM
• UL Listed: No

Logistics

• Minimum Pack Quantity: 1

Conductor Type

• CU C Str-Size
• CU C Solid-Size
• Bar-Size

Industry Standard(s)

• UL467
• UL 486A
• CSA C22.2 No 65

Standards - Industry Standards Met

• UL467
• UL 486A
• CSA C22.2 No 65
