Bus Bar Connectors YG14B2TC2C6C – Copper Alloy Electrical Distributor Connector

The Bus Bar Connectors YG14B2TC2C6C by Burndy are high-conductivity copper alloy compression connectors designed for efficient attachment of ground conductors to copper bus bars. Ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers, this connector is particularly suited for direct burial and cellular tower applications. It provides a reliable, single-crimp connection that is easier to use than exothermic connections, ensuring secure power, grounding, and bonding.

Specifications

• Material: Copper Alloy
• Connector Type: Tap
• Conductor Compatibility: #2 AWG Solid/Stranded Copper and #6 AWG Solid/Stranded Copper
• Bus Bar Size (Tap Side): 1/4" Thick Copper Busbar
• Number of Crimps Required: 1
• Prefilled Oxide Inhibitor: Yes (PENETROX E Compound)

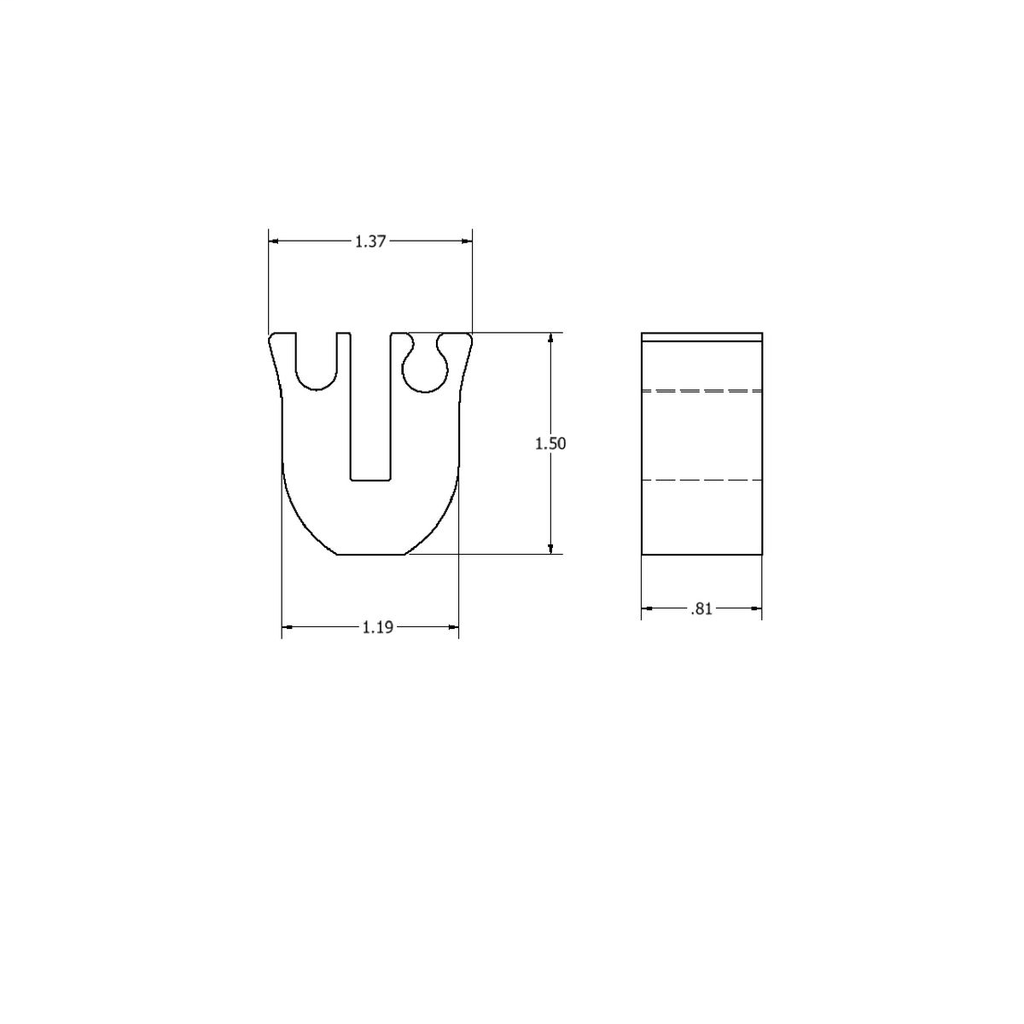

• Dimensions: 0.81 inch length (B dimension)
• Certifications: UL Listed for Direct Burial, cULus, Meets UL467 and UL486A standards
• Plating: Unplated
• Sub Brand: HYGROUND®
• Compliance: RoHS CM

Features

• Compression bus bar connector enabling secure and efficient grounding connections
• Easier to use than exothermic connections, reducing installation time and complexity
• Patent-pending design allows attachment of one or two conductors for power, grounding, and bonding
• Suitable for direct burial, ensuring durability in harsh environments
• Prefilled with oxide inhibitor compound to prevent corrosion and maintain conductivity
• Compatible with BURNDY Y750 HYPRESS hydraulic compression tool and U1105 die set for reliable crimping
