BURNDY YA2C2TC38 HYLUG-2STR-(2)3/8STUD
SKU: #407334
Part: #YA2C2TC38
UPC: 781810503515
BURNDY YA2C2TC38 HYLUG-2STR-(2)3/8STUD
SKU: #407334
Part: #YA2C2TC38
UPC: 781810503515
Description

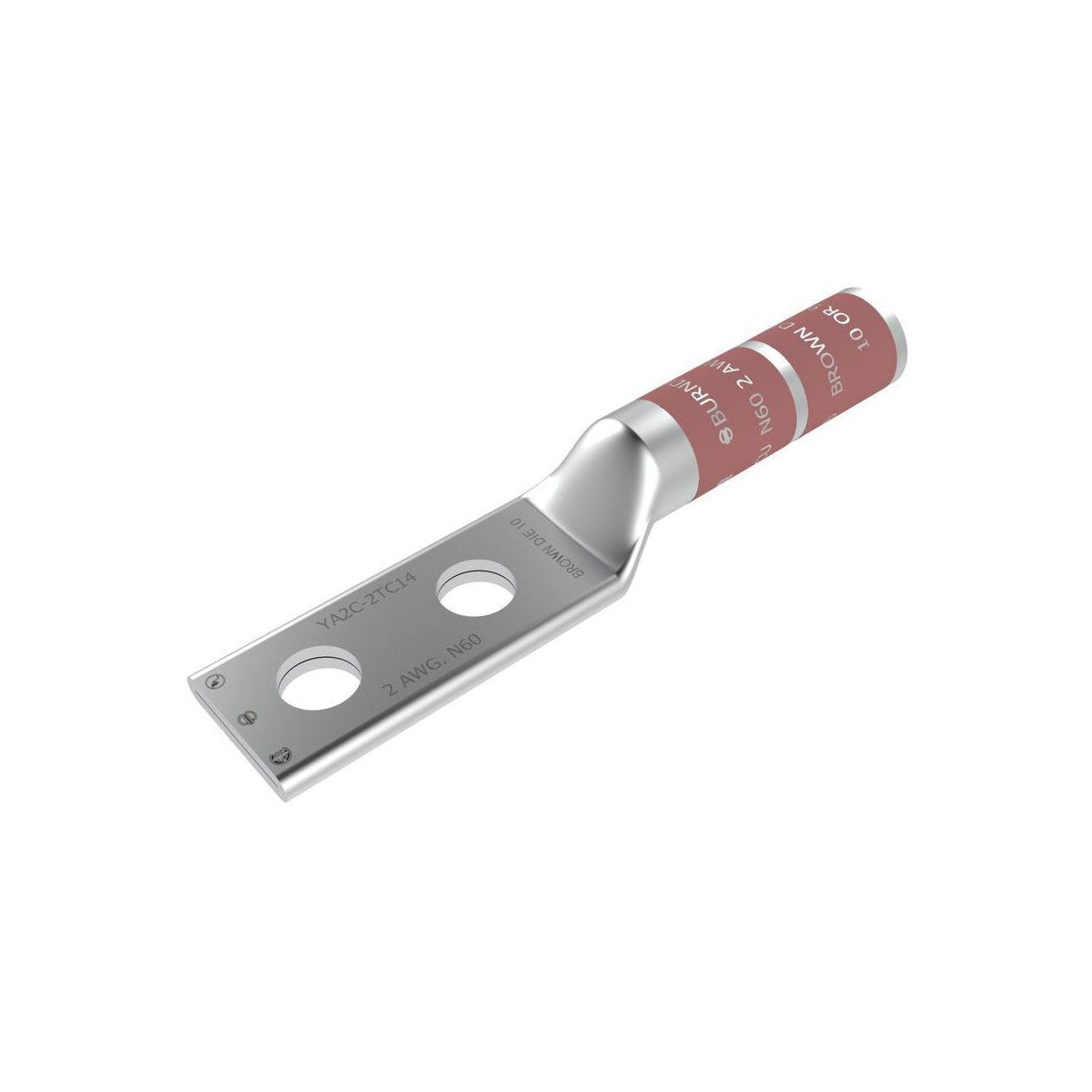

BURNDY YA2C2TC38 HYLUG-2STR-(2)3/8STUD Copper Compression Terminal
The BURNDY YA2C2TC38 HYLUG is a copper compression terminal designed for wire termination applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable and corrosion-resistant connections in wire and cable installations. The terminal features a two-hole tongue/tang design to minimize loosening under vibration, movement, or heat cycling, making it ideal for secure electrical connections in lighting solutions and other electrical distribution systems.
Specifications
- Name: BURNDY YA2C2TC38 HYLUG-2STR-(2)3/8STUD
- Application: Wire Termination
- Material: Copper
- Color Code: Brown
- Product Weight: 0.0600 lbs
- Manufacturer Part #: YA2C2TC38
- UPC: 781810503515
- Conductor Size: 2 AWG
- Stud Size: 3/8"
- Barrel Length: 1.25 inches
- Pad Width: 0.60 inches
- Overall Length: 3.42 inches
- Pad Thickness: 0.11 inches
Features
- Uninsulated copper compression terminal with electro-tin plating for corrosion resistance
- Long barrel design allowing increased number of crimps for enhanced mechanical strength
- Two-hole tongue/tang design reduces loosening or rotation under vibration, movement, or heat cycling
- Internal chamfer at wire entry ensures smooth insertion and prevents strand damage
- UL Listed for 90°C, up to 35 kV applications
- No inspection window, ideal for corrosive environments
- Clearly marked with stamping and barrel color coding for easy identification
- Compatible with BURNDY Engineered System crimp tools and dies
