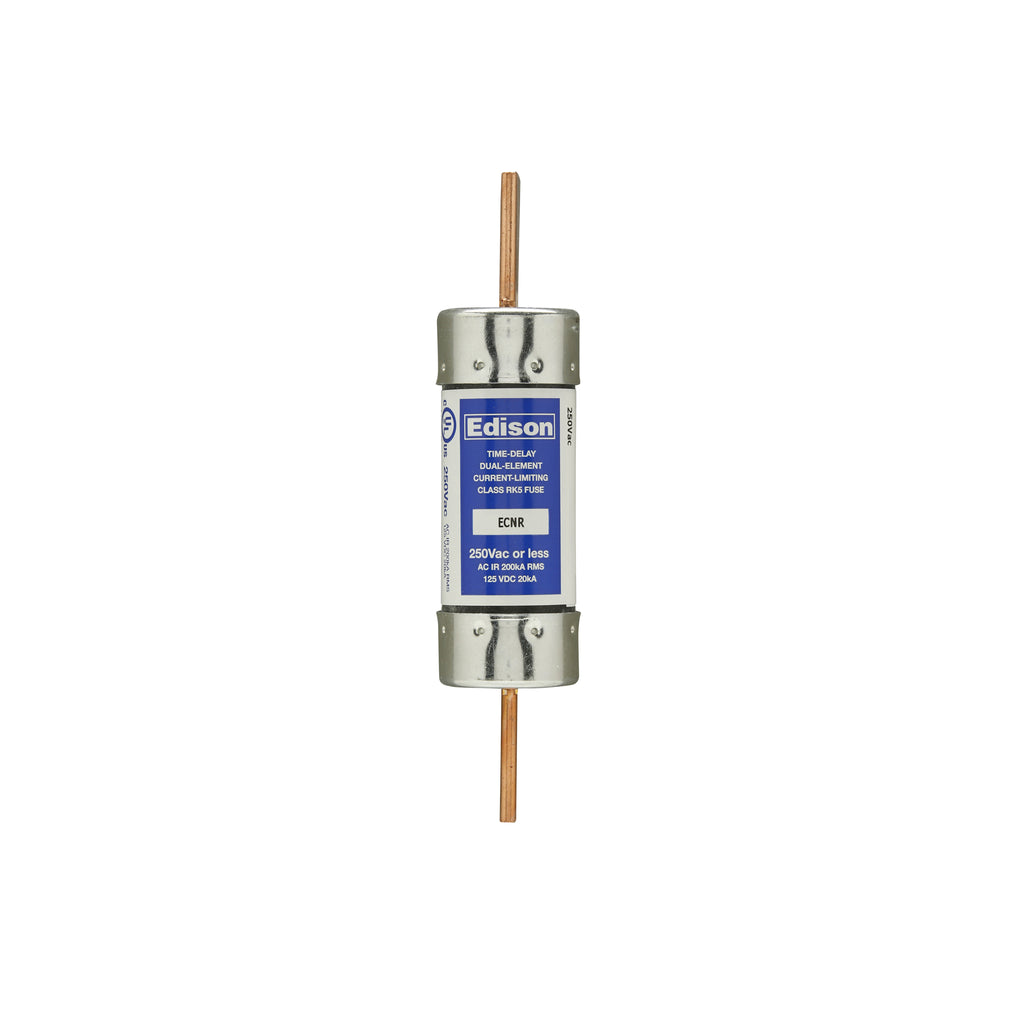

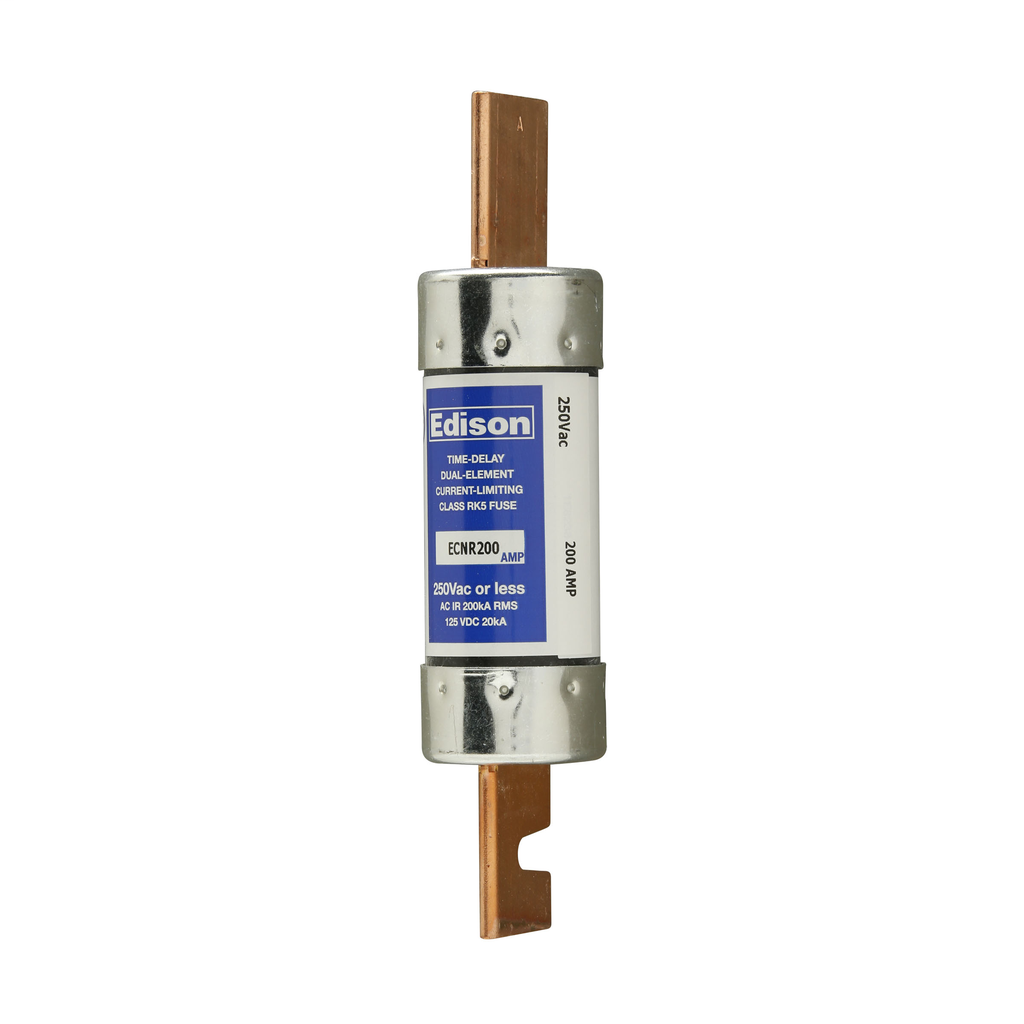

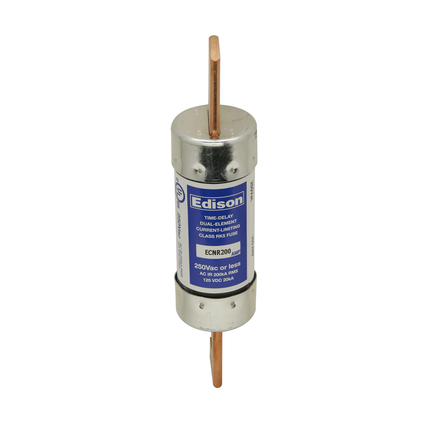

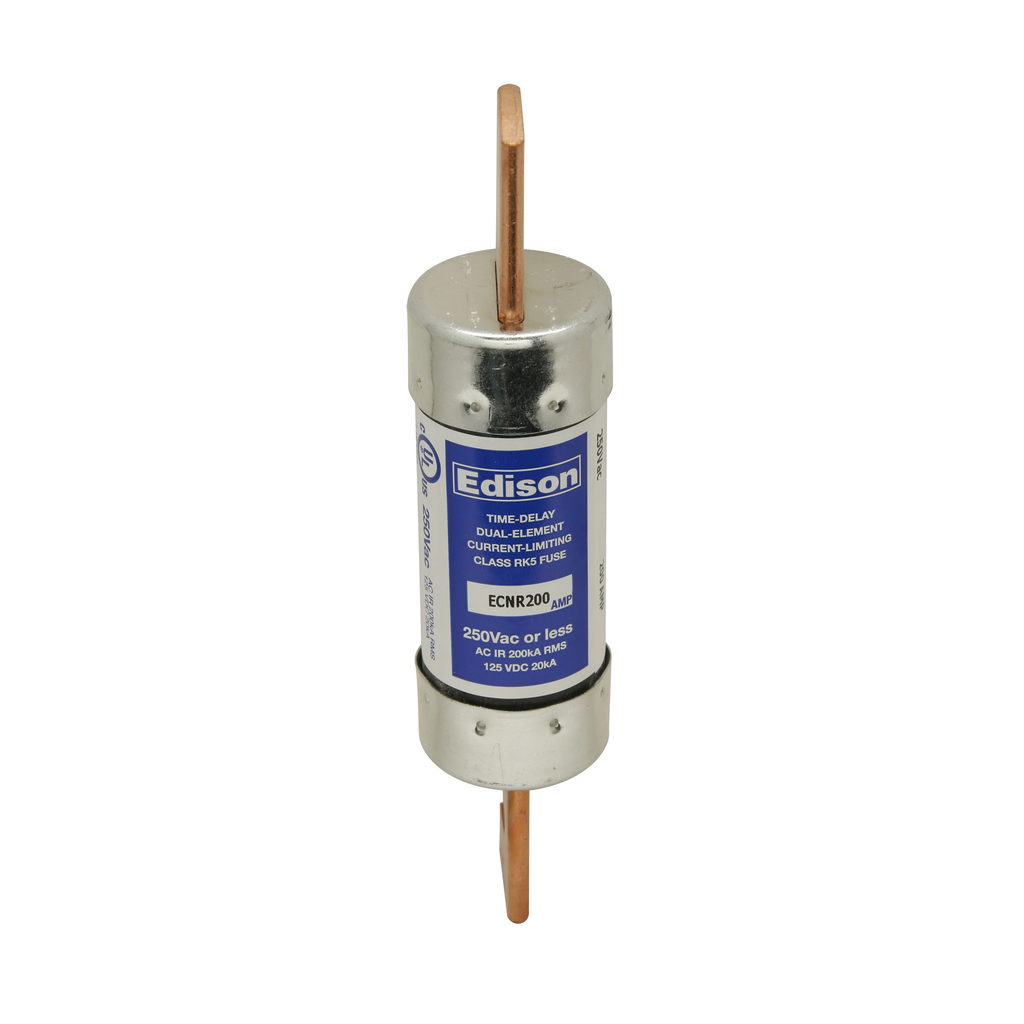

Bullet Fuse Class RK5 Electrical Protection

The Bullet Fuse is a time-delay, dual-element current-limiting fuse designed for use in electrical distribution and lighting solutions. It provides reliable overcurrent protection in wire and cable systems and is suitable for applications requiring high interrupt ratings. This fuse is an essential component for switchgear suppliers and electrical distributors ensuring circuit safety and continuity.

Specifications

• Amperage: 200 amperes
• Class: Class RK5
• Diameter: 1.56 inches
• End Type: Blade
• Connection Type: Blade
• Interrupt Rating: 200 kiloamps
• Product Weight: 0.8500 lbs
• Manufacturer Part #: ECNR200
• UPC: 782634507482

Features

• Time-delay operation for dual-element current limiting
• Blade end and connection type for secure installation
• High interrupt rating of 200 kiloamps enhances circuit protection
• Compatible with 250Vac or less applications
