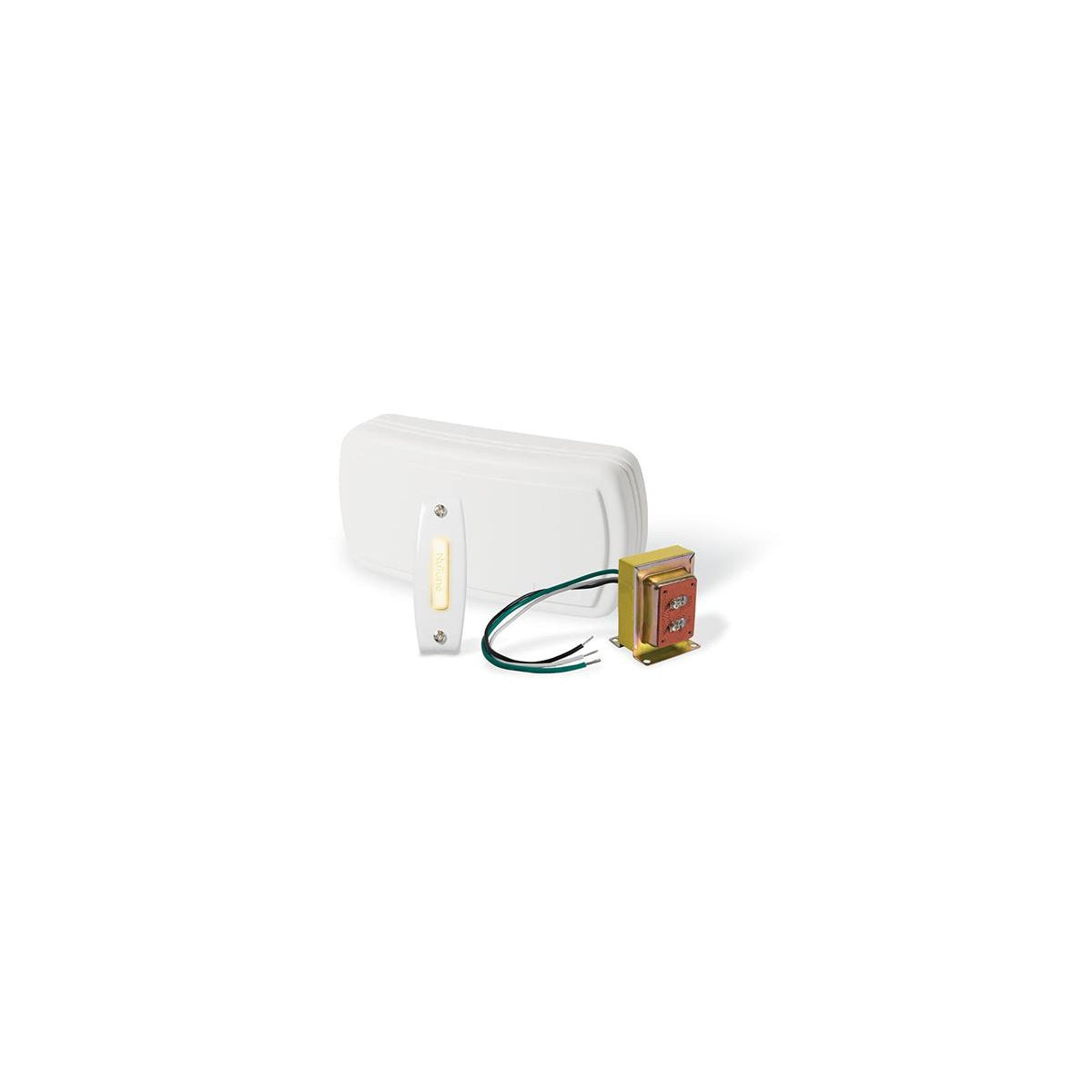

Builder Chimes Kit (Chime only) - Surface-Mounted Door Chime

The NuTone Builder Chimes Kit (Model BK105) is a surface-mounted two-note door chime designed for residential applications. It provides reliable door signaling for one or two doors and is suitable for use in housing projects. This chime kit features a graceful curved style cover with a textured face, combining functional design with durable materials. Ideal for electrical distributors and lighting solutions providers, it integrates easily with standard 120VAC wiring and compatible transformers for seamless installation.

Specifications

• Manufacturer: NuTone
• Manufacturer Part #: BK105
• Product Weight: 27 lbs
• UPC: 784891030017
• Operation: Two-note chime for surface mounting

Features

• Designed for two-door operation with single or multiple chimes for larger homes
• Includes curved style cover with rich textured face for aesthetic appeal
• Compatible with NuTone transformers C905, C915 for single installations or C907, C909 for multiple chimes
• Mounts easily to wall with included screws and baseplate
• Wiring connections comply with local and national electrical codes
• Maintenance instructions include cleaning plungers with nonflammable fluid; no oiling required
• One-year limited warranty by Broan-NuTone covering defects in materials and workmanship

Downloads & Links

• Installation Guide
