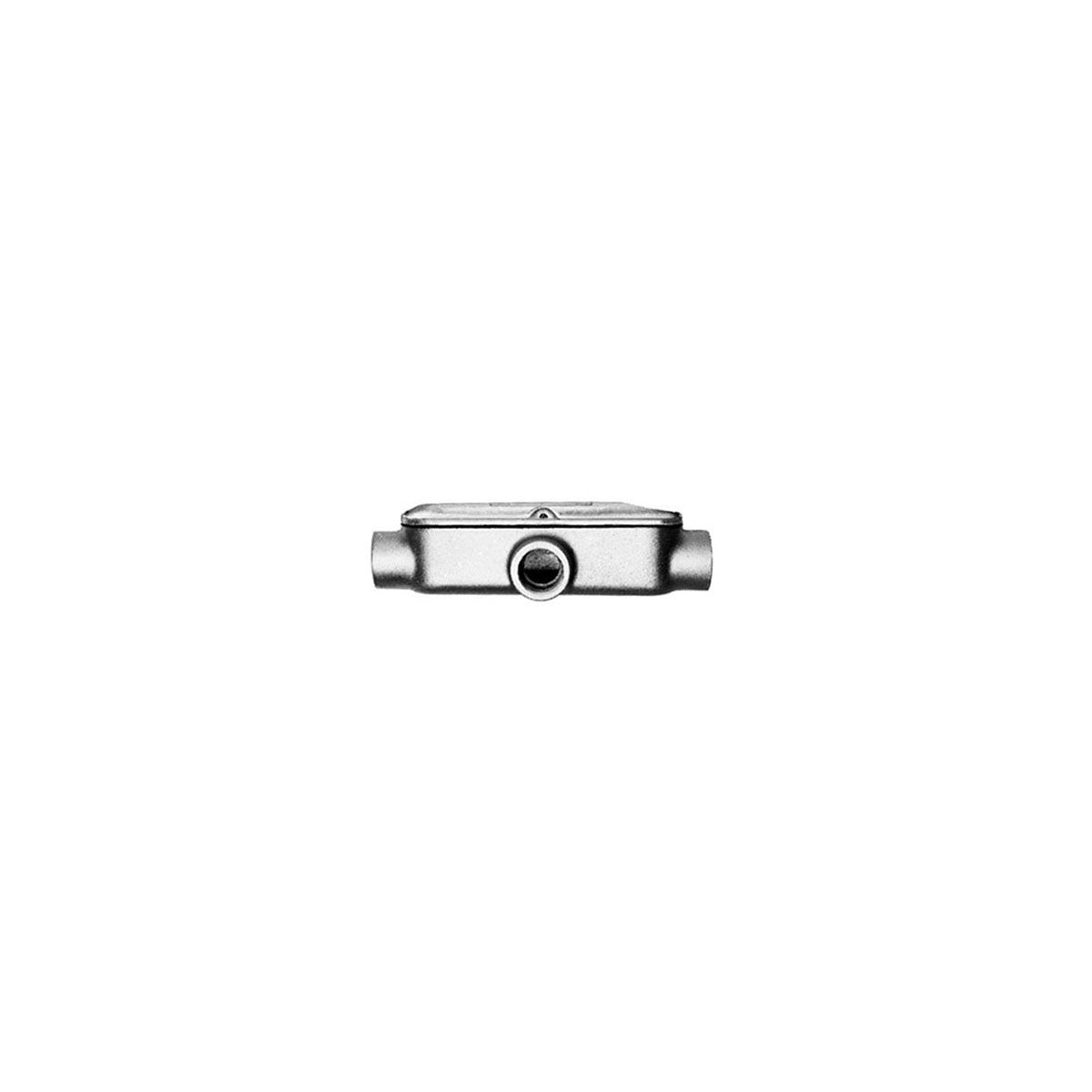

BT200M, IMC/Rigid Conduit Outlet Body – Conduit Outlet Body for Electrical Distribution

The Appleton BT200M IMC/Rigid Conduit Outlet Body is designed to facilitate the pulling of large and heavy conductors in electrical wiring systems. Ideal for electrical distributors and lighting solutions providers, this conduit outlet body supports straight, 45°, and 90° angle turns, as well as taps and splices. It is suited for use with threaded rigid metal conduit and intermediate metal conduit (IMC), making it a reliable component for wire and cable installations and switchgear supplier applications.

Specifications

• Manufacturer: Appleton
• Manufacturer Part #: BT200M
• Material: Chromate finish
• Installation: Taper Threaded
• Product Weight: 14.0 lbs
• UPC: 781381463645

Features

• Larger body size to facilitate pulling of large and heavy conductors
• Specially designed raised cast cover provides additional wiring area
• Complete with assembled cover and neoprene gasket for sealing
• Suitable for pulling straight, 45¬∞, or 90¬∞ angle turns and for making taps and splices
• Compatible with threaded rigid metal conduit and IMC
