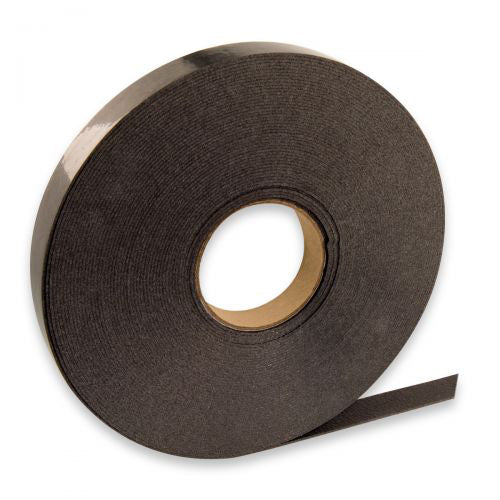

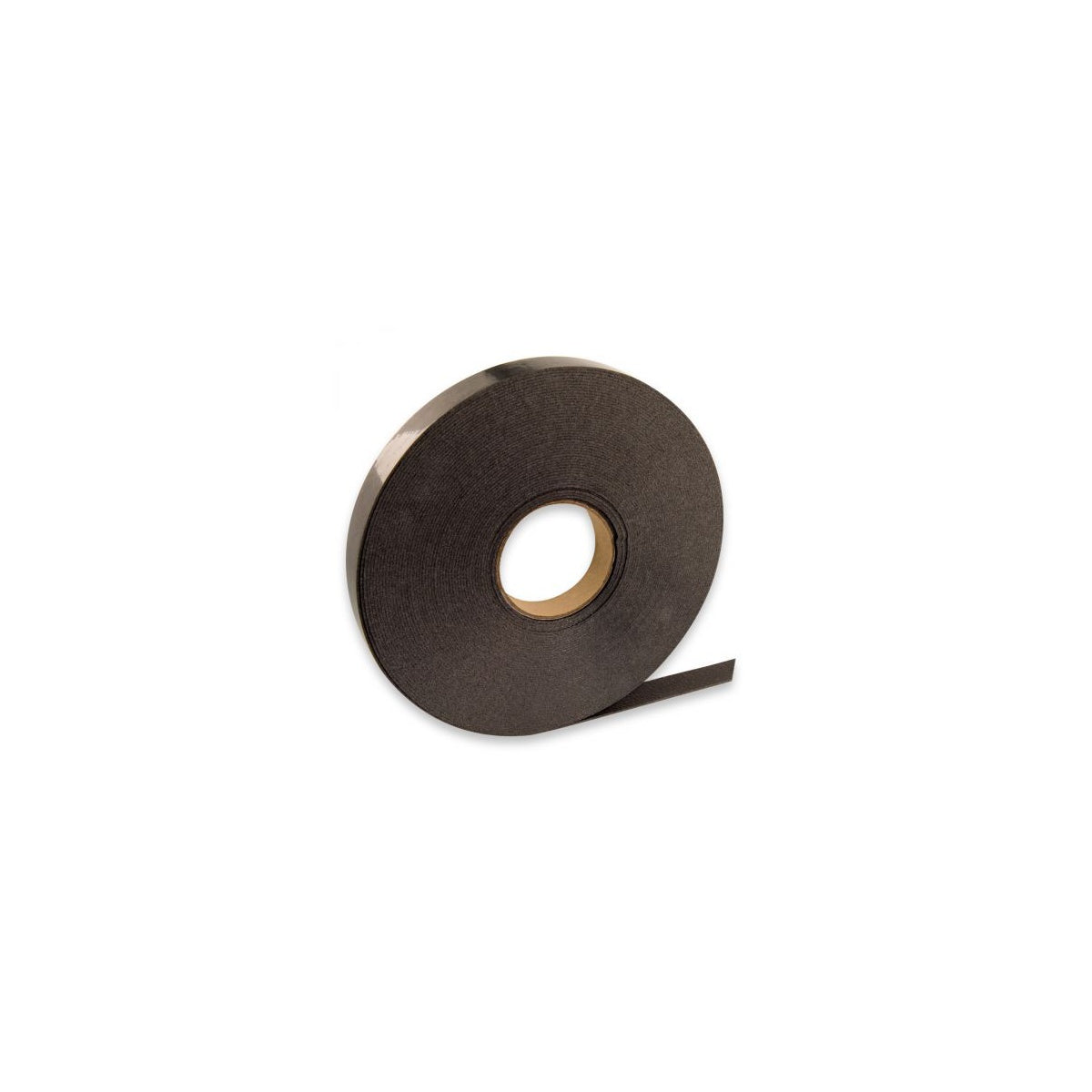

Metacaulk BlazeSeal Fire Door Strip – Firestop and Intumescent Seal

Metacaulk BlazeSeal is a flexible, highly intumescent firestop material designed for use in fire-rated door and door frame assemblies. It provides a positive pressure seal between door and frame clearances to prevent the passage of flames, smoke, and hot gases during fire events. Suitable for electrical distributors and switchgear suppliers requiring reliable fire protection components, BlazeSeal also serves as a glazing seal in fire-rated glass assemblies for doors and sidelites.

Specifications

• Manufacturer: RectorSeal
• Manufacturer Part #: 66040
• Product Weight: 48.0 lbs
• Color: Dark Gray
• Dimensions: 2.0 mm thickness × 2" width × 82 ft length
• Intumescence Activation Temperature: 375°F (190°C)
• Degree of Intumescence (DIN Standard): ≥18× with weight imposed, ≥37× free intumescing
• Flame Spread Index (ASTM E84, UL 723): 5
• Smoke Developed Index (ASTM E84, UL 723): 5
• Test Standards: UL 10C, NFPA 252, IBC 716.2, DIN 4102-1, BS 476, ASTM E814 / UL 1479
• UPC: 021449660402

Features

• Highly intumescent with multi-staged expansion for superior fire protection
• Forms a strong char seal to block flames, smoke, and hot gases
• Easy to install with factory-applied pressure-sensitive adhesive
• Versatile and flexible for installation on door frames or door leaves
• Complies with major fire door standards and environmental exposure tests
• Contains no carcinogenic fillers or solvents
• Dark gray color for discreet installation
• Available in standard and custom sizes

Downloads & Links

• Spec Sheet
• PDS - Spanish
• Safety Data Sheet
• SDS - Spanish
• Certified Clean Air Gold Certificate
