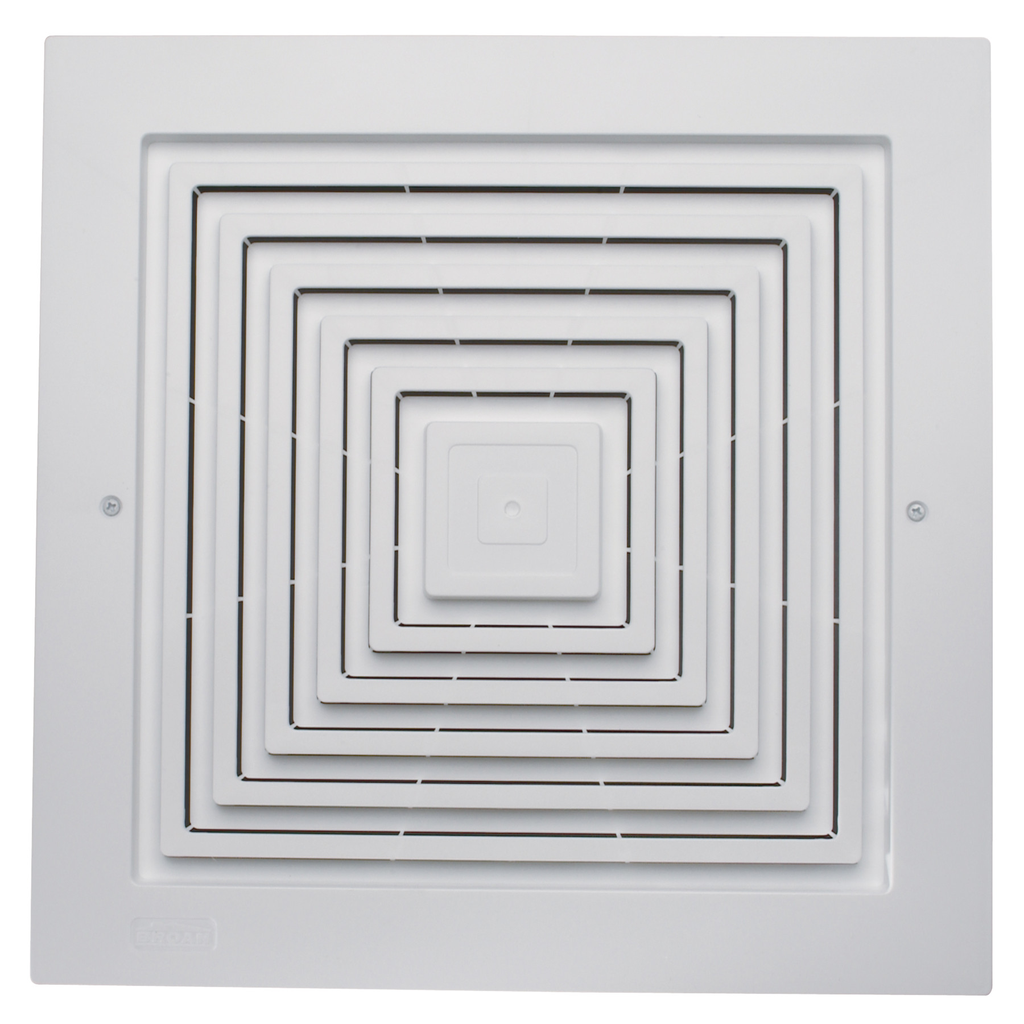

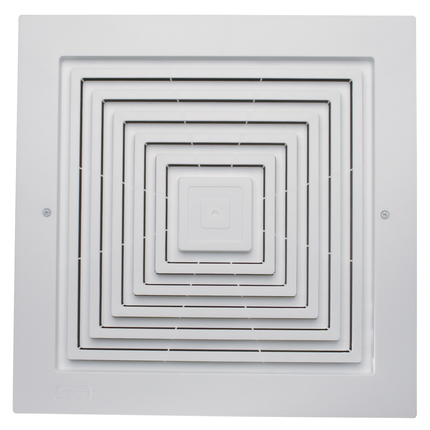

Broan® LOSONE SELECT™ High Capacity 157 CFM High Capacity Ceiling Mount Ventilation Fan

The Broan® LOSONE SELECT™ High Capacity Ceiling Mount Ventilation Fan is engineered for continuous ventilation in commercial environments such as conference rooms and public restrooms. It offers a quiet, low-profile solution with a heavy-duty motor and resilient anti-vibration mounts, making it suitable for electrical distributors and lighting solutions providers requiring reliable ventilation products. The fan features an adjustable mounting bracket system for flexible ceiling installation and a galvanized steel housing designed for durability and sound attenuation.

Specifications

• Airflow Capacity: 157 CFM

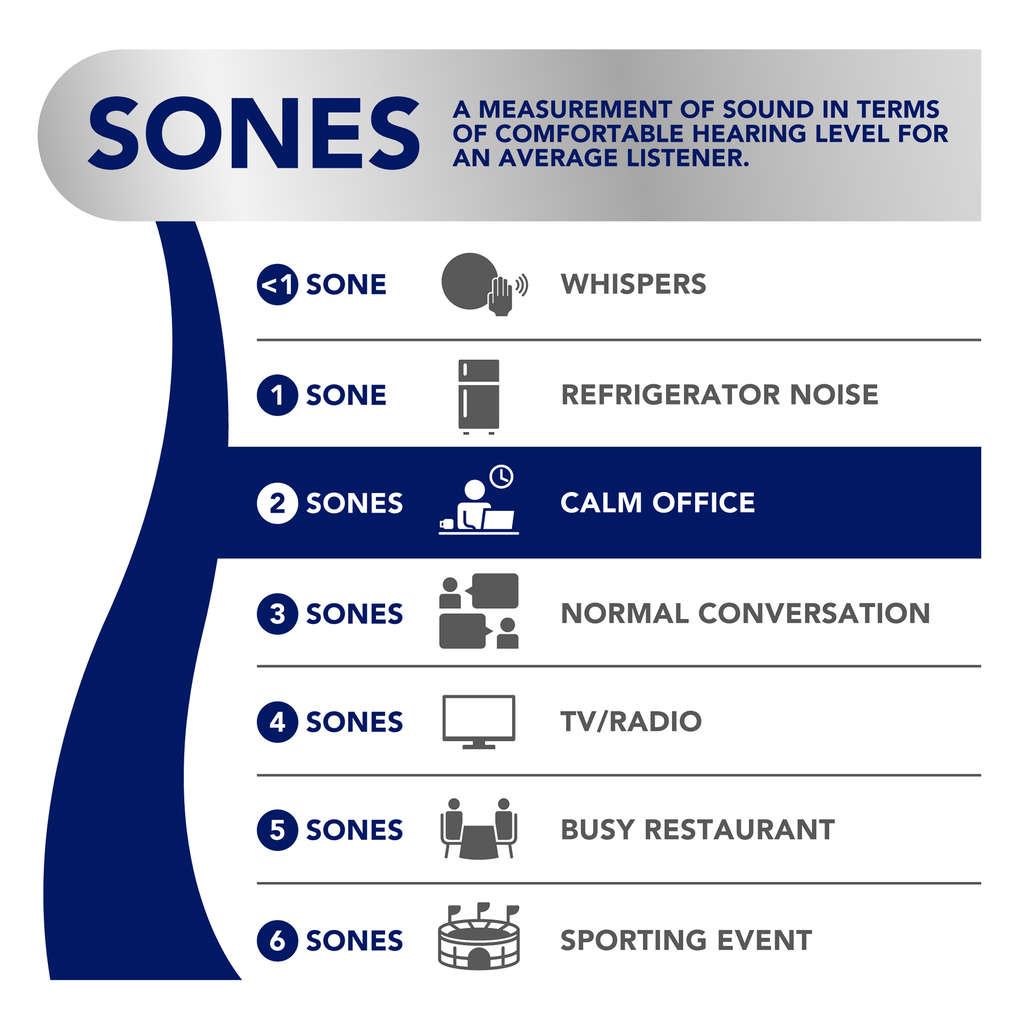

• Sound Level: 1.5 Sones
• Amperage: 1.3 amperes
• Voltage: 120 VAC (implied from typical Broan L150 series)
• Dimensions: 14 in. (Width) x 14 in. (Length) x 11.75 in. (Height)
• Housing Material: Galvanized steel
• Duct Shape: Round (6” round duct connector)
• Mounting Type: Ceiling mount with 8-way adjustable brackets
• Color: White
• Product Weight: 18.22 lbs
• Made in USA
• Manufacturer Part Number: L150
• UL and cUL Listed; AMCA Certified Air and Sound Ratings

Features

• Exceptionally quiet operation with low RPM motor and 1.5 sones sound rating
• Heavy-duty, permanently lubricated motor with thermal protection

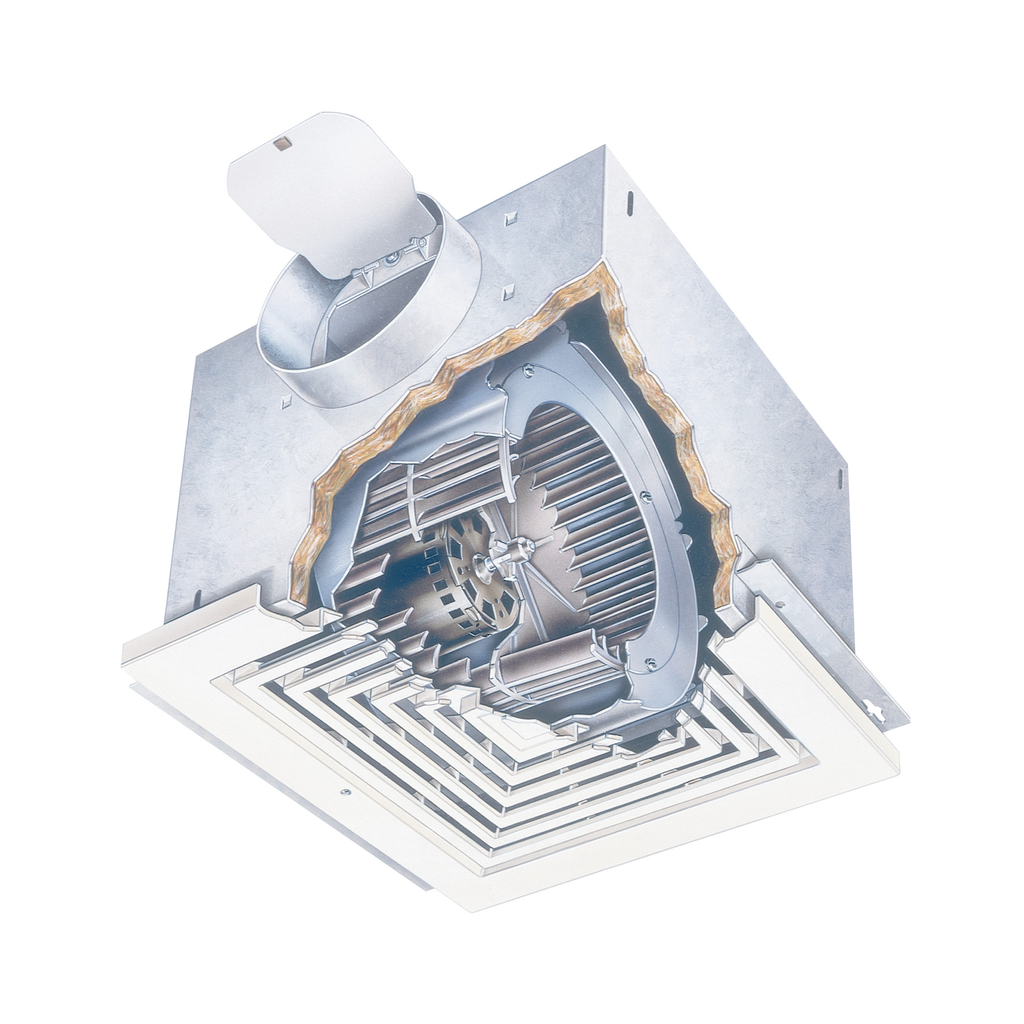

• Dynamically balanced polymeric centrifugal blower wheel for efficient airflow
• Low vibration design with resilient anti-vibration mounts
• 1/2 inch acoustic insulation inside housing to reduce noise
• Automatic backdraft damper integrated within duct connector
• Factory-shipped in horizontal discharge position, easily convertible to vertical discharge
• 8-position mounting brackets for versatile installation in new or existing construction
• Designed for continuous operation and suitable for use over bathtubs and showers when connected to a GFCI-protected circuit

Downloads & Links

• Installation Guide
• Spec Sheet
