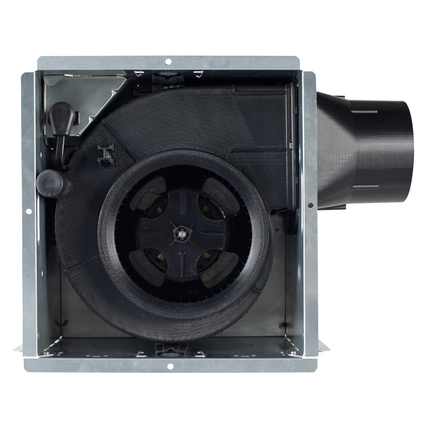

Broan Flex™ Series 110 CFM 3.0 Sones Ventilation Fan

The Broan Flex™ Series 110 CFM 3.0 Sones Ventilation Fan is designed for efficient bathroom exhaust ventilation, ideal for ceiling or wall installation in residential applications. This fan offers quiet operation with a dynamically balanced centrifugal blower and a permanently lubricated motor engineered for continuous use. Suitable for electrical distributors and lighting solutions providers offering ventilation and air quality products, this fan integrates seamlessly into wire and cable and switchgear supplier portfolios.

Specifications

• Airflow: 110 CFM
• Sound Level: 3.0 Sones
• Amperage: 0.4 amperes
• Dimensions: 12" Width x 5.75" Height x 11.5" Length
• Weight: 8.9 lbs
• Voltage: 120 V, 60 Hz
• Material: Galvanized steel housing with polymeric grille and duct connector
• Mounting: Four-point mounting directly to joist; suitable for ceilings up to 7/12 pitch
• Installation: Ceiling or wall (mounted 8 ft. or more above floor)
• UL Listed for use over bathtubs and showers when connected to GFCI protected branch circuit (ceiling mount only)
• Country of Origin: United States (Made in USA)
• Manufacturer Part #: A110
• Hazardous Material: No

Features

• Plug-in, permanently lubricated motor for continuous operation
• Dynamically balanced centrifugal blower wheel for quiet and efficient performance
• Low RPM operation reduces noise
• Polymeric 4" duct connector with tapered sleeve to eliminate metallic clatter
• Compact 5¾" height fits 2" x 6" ceiling joists
• Innovative grille design developed through extensive research
• Non-metallic damper/duct connector included
• Can be mounted in ceilings with up to 7/12 pitch
• Controls and accessories available separately to customize installation

Downloads & Links

• Installation Guide
• Spec Sheet
• Brochure
