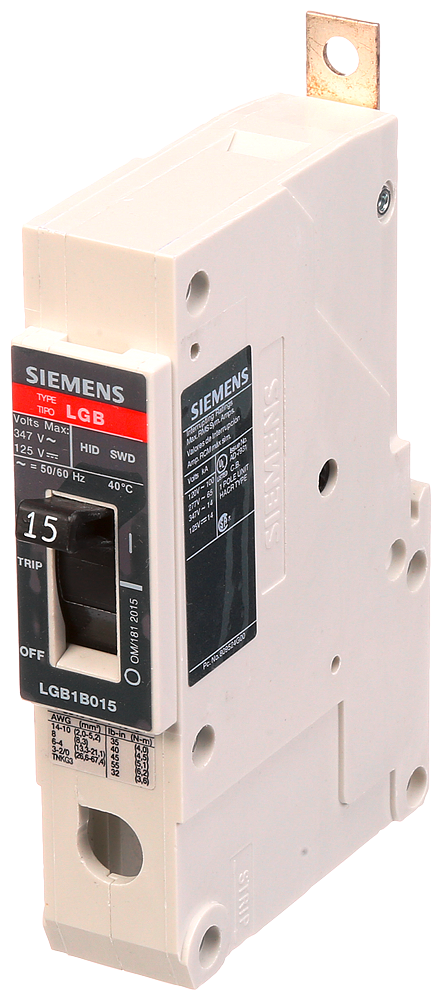

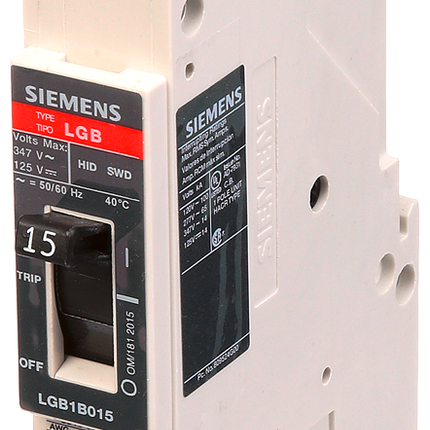

BRKR LGB 15A 1P 277V 65K LD LUG
SKU: #315149
Part: #LGB1B015B
UPC: 887621219918
BRKR LGB 15A 1P 277V 65K LD LUG
SKU: #315149
Part: #LGB1B015B
UPC: 887621219918
Next day delivery
Description
BRKR LGB 15A 1P 277V 65K Load Lug Circuit Breaker
This Siemens low voltage panelboard mount G frame circuit breaker features a thermal-magnetic trip mechanism designed for reliable protection in electrical distribution systems. It is suitable for use by electrical distributors and switchgear suppliers requiring a UL listed breaker with high breaking capacity and panelboard mounting compatibility.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: LGB1B015B
- Frame Type: LGB G Frame
- Current Rating: 15A
- Number of Poles: 1
- Voltage Rating: 277V
- Interrupting Capacity: 65kAIC at 277V, 14kAIC at 347V
- Mounting Type: Panelboard mount
- Wire Range: 14 - 10 AWG (Copper/Aluminum)
- Dimensions (W x H x D): 0.97 in x 4.99 in x 2.87 in
- Product Weight: 0.85 lbs
- Country of Origin: Mexico
Features
- Thermal-magnetic trip for reliable overload and short circuit protection
- Load side lugs only (TC1Q1) for simplified wiring
- UL listed for safety and compliance
- High breaking capacity suitable for demanding electrical applications
