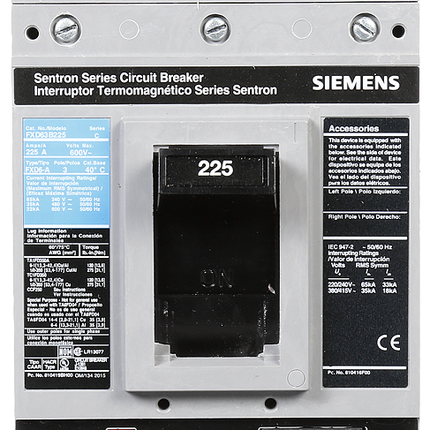

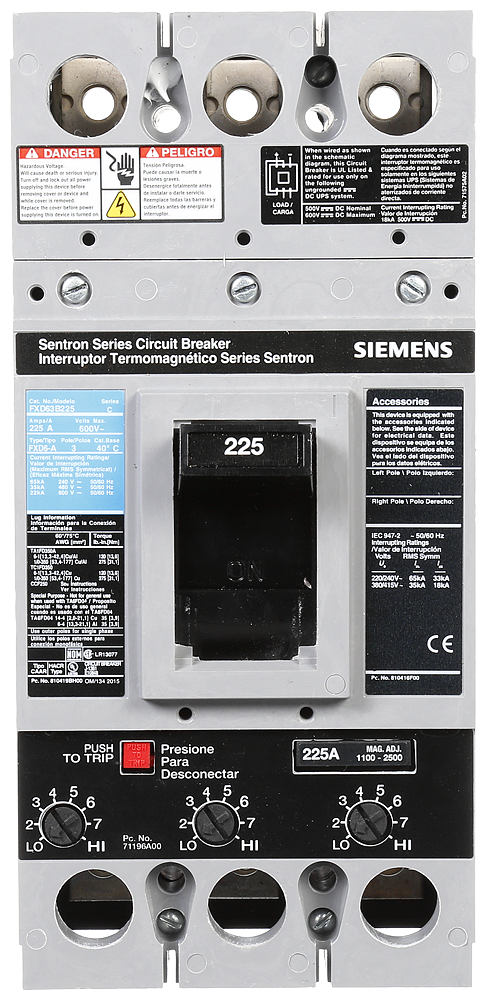

BRKR FD6 3P 600V 225A FX Molded Case Circuit Breaker

This Siemens FD6 frame molded case circuit breaker is designed for standard 40°C applications, providing reliable overcurrent protection with a thermal-magnetic trip unit. Suitable for electrical distributors and switchgear suppliers, this 3-pole breaker supports up to 225 amps at 600V AC, making it ideal for industrial and commercial electrical installations requiring robust circuit protection.

Specifications

• Manufacturer: Siemens
• Frame: FD
• Poles: 3
• Continuous Current Rating: 225A
• Interrupt Rating: 22kAIC at 600V, 35kAIC at 480V
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40¬∞C
• Dimensions (W x H x D): 5.5 in x 11.1 in x 7.0 in
• Weight: 8.869 lbs
• Country of Origin: Mexico
• Manufacturer Part Number: FXD63B225

Features

• Thermal-magnetic trip unit with non-interchangeable design for enhanced safety and compliance with UL 489 / CSA C22.2 No. 5 standards
• Standard breaking capacity suitable for typical commercial and industrial electrical applications
• Assembled breaker without lugs installed, allowing customization of connection accessories
• Compatible with Siemens FD and FXD frame circuit breaker accessories, including standard depth rotary handle enclosures (see installation instructions for FDRH1 mechanism)
• Designed for use in switchgear and panelboard applications requiring reliable circuit interruption and protection
