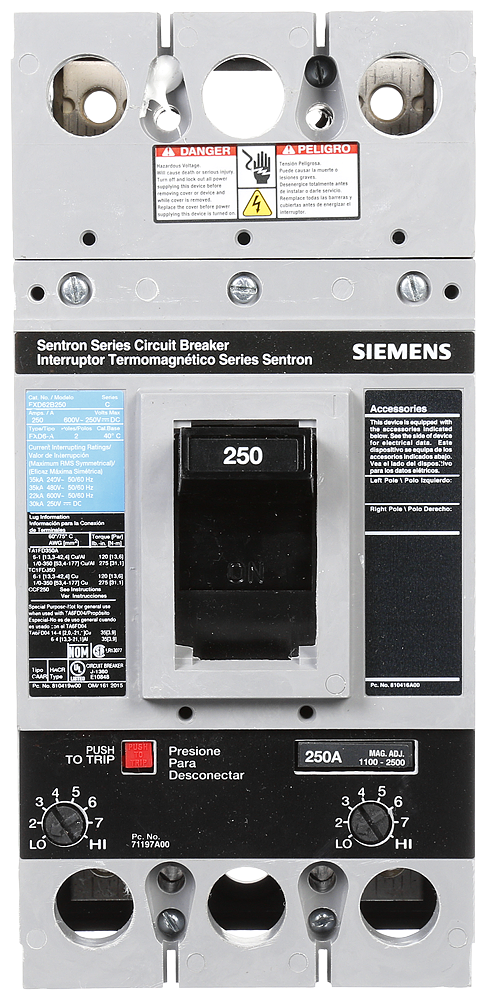

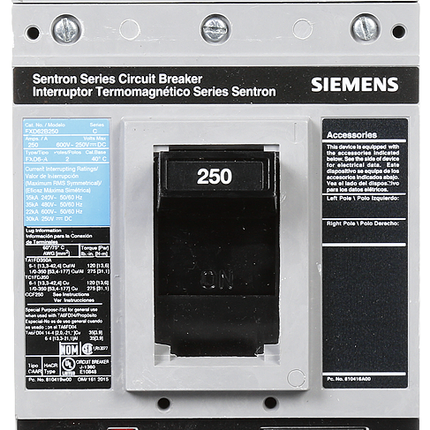

BRKR FD6 2P 600V 250A FX Molded Case Circuit Breaker

The Siemens BRKR FD6 2P 600V 250A FX is a low voltage Sentron molded case circuit breaker designed for electrical distribution and protection in commercial and industrial applications. It features a thermal-magnetic trip unit and is intended for use as a standard 40°C breaker frame with a 2-pole configuration. This circuit breaker is suitable for integration by electrical distributors and switchgear suppliers in systems requiring reliable overcurrent protection up to 250 amps at voltages up to 600V AC and 250V DC.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: FXD62B250
• Frame: FD
• Number of Poles: 2
• Continuous Current Rating: 250A @ 40¬∞C
• Interrupt Rating: 22kAIC at 600V AC, 35kAIC at 480V AC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40¬∞C
• Dimensions (W x H x D): 6.9 in x 11.2 in x 5.4 in
• Product Weight: 7.101 lbs
• Country of Origin: Mexico
• Application: Standard 40¬∞C Breaker

Features

• Thermal-magnetic trip unit with non-interchangeable design for enhanced safety and compliance with UL 489 / CSA C22.2 No. 5 standards
• Assembled standard FD frame breaker with factory-installed trip unit
• Compact 2-pole design suitable for use in wire and cable distribution systems
• Capable of handling high fault currents with rated interrupt capacity for industrial electrical applications
• Designed for use in low voltage switchgear and lighting solutions requiring reliable circuit protection
• No lugs installed, allowing customization for specific wiring and connection needs
