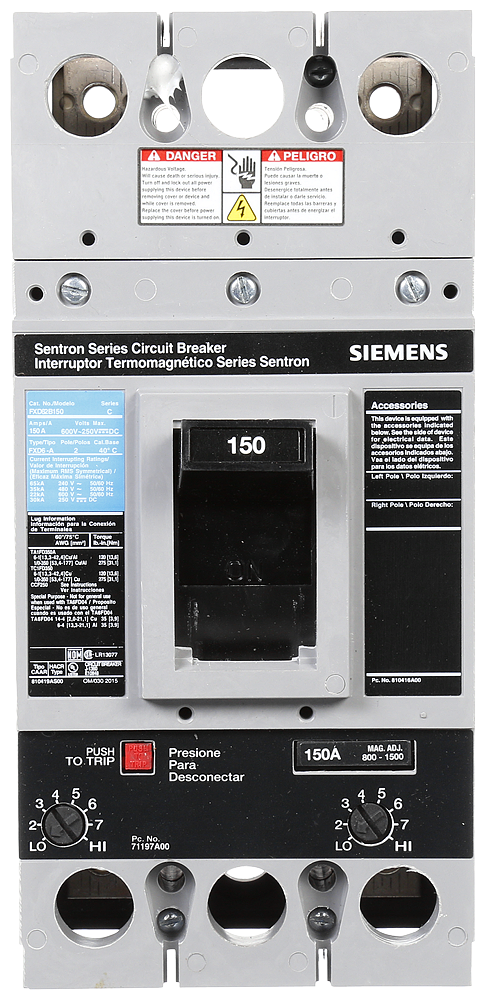

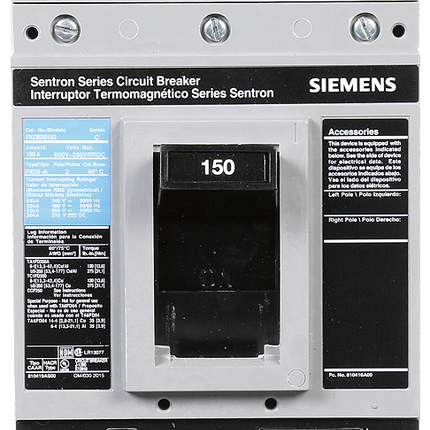

BRKR FD6 2P 600V 150A FX Molded Case Circuit Breaker

The Siemens BRKR FD6 2P 600V 150A FX is a low voltage molded case circuit breaker designed for use in electrical distribution systems. It features a thermal-magnetic trip unit and is assembled as a standard 40°C breaker with an FD frame and standard breaking capacity. This breaker is suitable for applications requiring reliable protection and interruption of electrical circuits, making it relevant for electrical distributors, lighting solutions providers, and switchgear suppliers.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: FXD62B150
• Frame: FD
• Number of Poles: 2
• Continuous Current Rating: 150A @ 40¬∞C
• Interrupting Rating: 22 kAIC at 600V, 35 kAIC at 480V
• Voltage Rating: 600V AC, 250V DC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40¬∞C
• Dimensions (W x H x D): 5.6 in x 11.2 in x 6.9 in
• Product Weight: 8 lbs
• Country of Origin: Mexico
• Actuator Type: Varying
• Enclosure Type: Varying

Features

• Thermal-magnetic trip unit with non-interchangeable trip for enhanced safety and compliance with UL 489 / CSA C22.2 No. 5
• Assembled standard 40¬∞C breaker FD frame with standard breaking capacity
• No lugs installed, allowing for customized lug installation as needed
• Suitable for reverse fed applications when ordered as non-interchangeable trip breaker
• Meets applicable standards including UL489 and CSA C22.2 No. 5
• Compatible with Siemens FD and FXD frame circuit breakers and molded case switches
