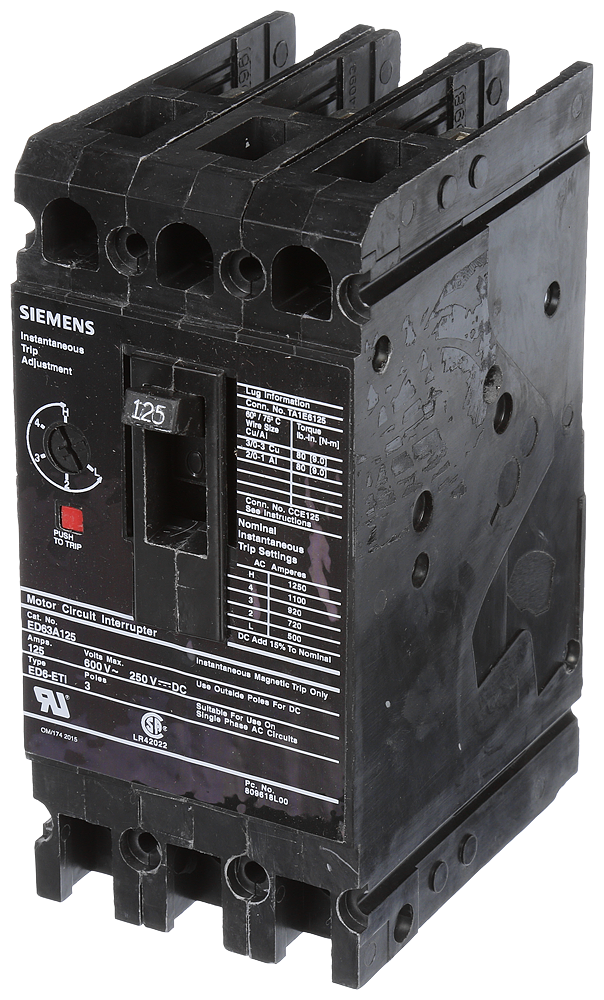

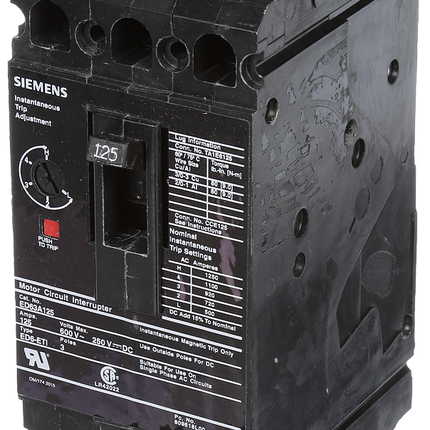

BRKR ED6 ETI-STD 3P 125A Molded Case Circuit Breaker

The BRKR ED6 ETI-STD 3P 125A is a Siemens low voltage molded case circuit breaker designed for motor circuit protection and general electrical distribution applications. This 3-pole, 125 amp breaker features an instantaneous magnetic trip only unit within the ED frame, suitable for use in lighting solutions, wire and cable systems, and as a switchgear supplier component. It complies with UL 489 and IEC 60947-2 standards and is rated for 50/60 Hz operation.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: ED63A125
• Frame: ED
• Poles: 3
• Interrupt Rating: 18kAIC at 600V, 25kAIC at 480V
• Current Rating: 125A
• Voltage Rating: 600V AC, 250V DC
• Frequency Rating: 50/60 Hz
• Dimensions (W x H x D): 6.00 in x 7 in x 4.00 in
• Operating Temperature: 40¬∞C
• Wire Range: Copper 3 - 3/0 AWG, Aluminum 1 - 2/0 AWG
• Order Minimum Quantity: 1
• Country of Origin: Mexico

Features

• Instantaneous magnetic trip only for fast short-circuit protection without time delay
• Load lugs only configuration (TA1E6125) for reliable connections
• Meets UL 489 and IEC 60947-2 safety and performance standards
• Compatible for use as a motor circuit protector in combination with motor starters
• Adjustable instantaneous trip settings to accommodate motor inrush currents (refer to Siemens ETI motor circuit protector guidelines)
• Designed for use in individual enclosures, panelboards, and switchboards
• Push-to-trip button for manual trip testing (except molded case switches)
• Suitable for use in alternating current and direct current circuits with appropriate wiring configuration
