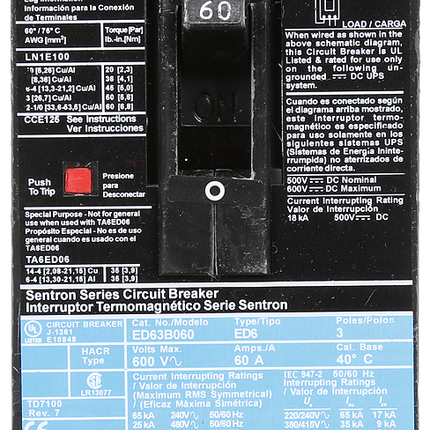

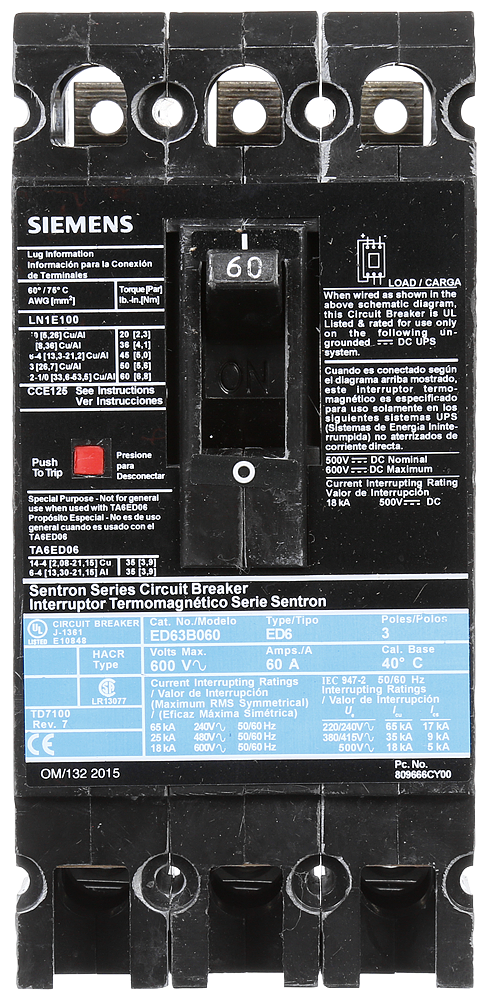

BRKR ED6 3P 600V 60A Molded Case Circuit Breaker

The Siemens BRKR ED6 3P 600V 60A molded case circuit breaker is designed for reliable protection in electrical distribution systems. It features a thermal-magnetic trip unit calibrated for standard 40°C operation, suitable for use in industrial and commercial applications requiring robust circuit protection. This breaker is ideal for electrical distributors and switchgear suppliers seeking a durable solution with a standard interrupting capacity and compatibility with copper and aluminum wiring.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: ED63B060
• Frame: ED
• Poles: 3
• Voltage Rating: 600 V AC
• Current Rating: 60 A
• Interrupting Rating: 18 kAIC at 600 V
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40¬∞C
• Dimensions (W x H x D): 6.00 in x 7 in x 4.00 in
• Product Weight: 3.693 lbs
• Country of Origin: Mexico

Features

• Thermal-magnetic trip unit with non-interchangeable design
• Standard 40¬∞C breaker with standard breaking capacity
• Load lugs only (LN1E100) supporting wire range 10 - 1/0 AWG for copper and aluminum conductors
• Compliant with UL 489 and CSA C22.2 No. 5 standards
• Suitable for use in individual enclosures, panelboards, and switchboards
• Manual PUSH-TO-TRIP button for trip function testing
• Designed for 3-phase electrical systems with 3 poles
