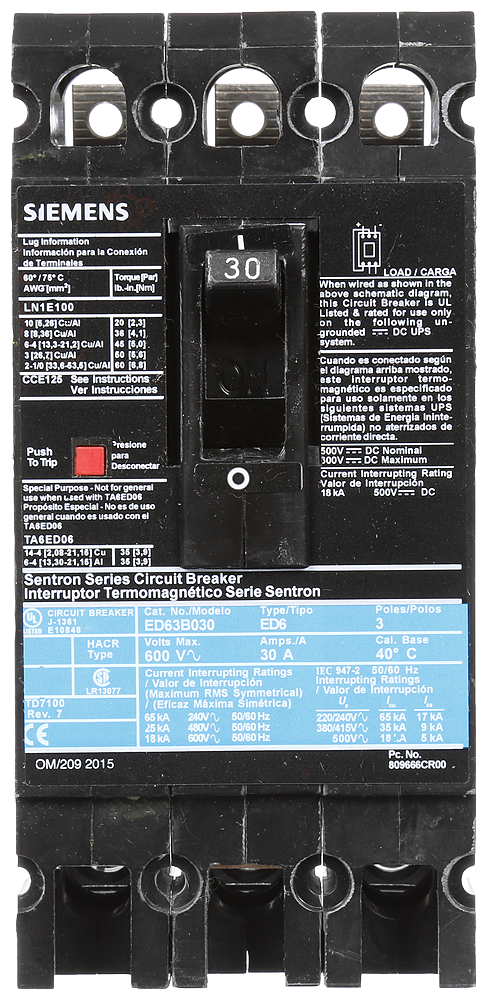

BRKR ED6 3P 600V 30A Molded Case Circuit Breaker

The Siemens BRKR ED6 3P 600V 30A is a low voltage Sentron molded case circuit breaker designed for reliable protection in electrical distribution systems. This thermal-magnetic trip unit breaker is suitable for standard 40°C applications and is engineered for use in panelboards, switchboards, and other approved electrical enclosures. It is ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring dependable circuit protection with a 3-pole configuration and a high interrupting capacity.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: ED63B030
• Frame: ED
• Number of Poles: 3
• Voltage Rating: 600 V AC / 500 V DC
• Current Rating: 30 A
• Interrupting Rating: 18 kAIC at 600 V, 25 kAIC at 480 V
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40¬∞C
• Dimensions (W x H x D): 6.00 in x 7 in x 4.00 in
• Product Weight: 3.664 lbs
• Country of Origin: Mexico
• Wire Range for Load Lugs: #10 to 1/0 AWG (Copper/Aluminum)

Features

• Thermal-magnetic trip unit with non-interchangeable trip for enhanced safety and compliance with UL 489
• Standard breaking capacity suitable for commercial and industrial electrical distribution
• Load lugs only configuration (LN1E100) for wire connection
• Designed to meet applicable UL and CSA standards for molded case circuit breakers
• Compact ED frame design optimized for panelboards and switchboards
• Push-to-trip button for manual testing of trip mechanism
• Suitable for use in 3-phase systems requiring reliable overcurrent protection
