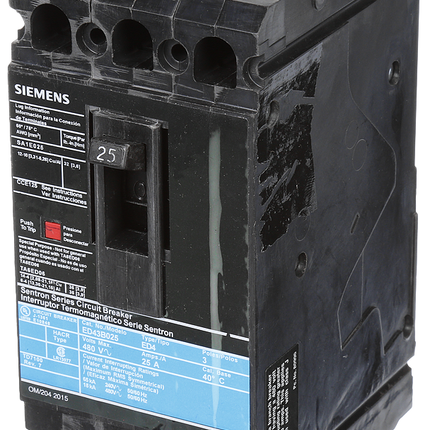

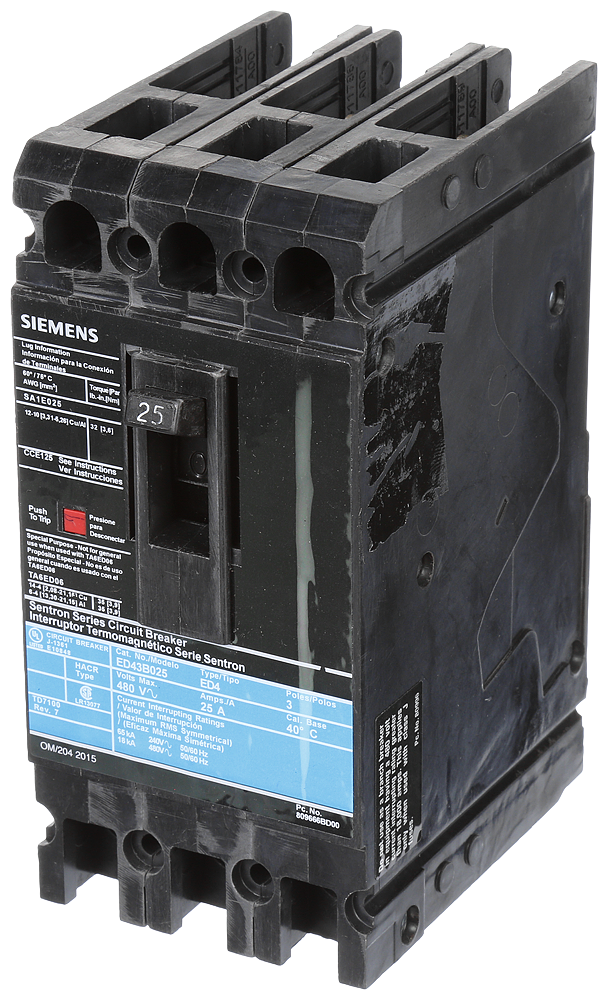

BRKR ED4 3P 480V 25A Molded Case Circuit Breaker

This Siemens molded case circuit breaker is designed for low voltage electrical distribution and protection applications. It features a thermal-magnetic trip unit suitable for standard 40°C operating temperatures, making it appropriate for use by electrical distributors and switchgear suppliers requiring reliable circuit protection in commercial and industrial environments.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: ED43B025
• Frame: ED
• Number of Poles: 3
• Voltage Rating: 480 V
• Current Rating: 25 A
• Interrupt Rating: 18 KAIC at 480 V
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40°C
• Dimensions (W x H x D): 6.00 in x 7 in x 4.00 in
• Product Weight: 3.688 lbs
• Country of Origin: Mexico
• Order Minimum: 1

Features

• Thermal-magnetic trip unit for accurate overload and short circuit protection
• Standard 40°C breaker frame with standard breaking capacity
• Load lugs only wiring connection
• Wire range compatibility: 14-10 AWG copper, 12-10 AWG aluminum
• Non-interchangeable trip unit for enhanced safety and reliability
