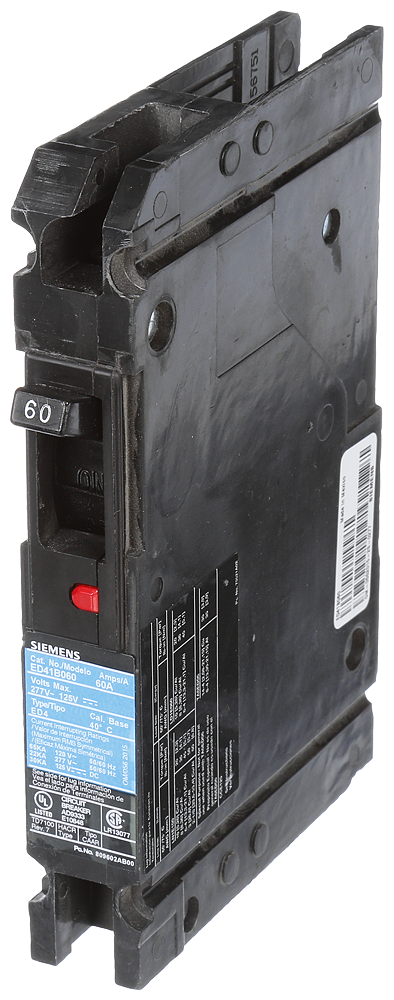

BRKR ED4 1P 480V 60A Molded Case Circuit Breaker

The Siemens BRKR ED4 1P 480V 60A is a low voltage Sentron molded case circuit breaker designed for standard 40°C applications. It features a thermal-magnetic trip unit and is suitable for use in electrical distribution systems requiring reliable circuit protection. This 1-pole breaker is rated for 60 amperes with a breaking capacity of 22 kAIC at 277V, making it appropriate for industrial and commercial electrical installations. It is manufactured in Mexico and is compatible with copper and aluminum wiring within the 10 to 4 AWG range.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: ED41B060
• Frame: ED
• Number of Poles: 1
• Interrupt Rating: 22 kAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40¬∞C
• Rated Current: 60 A
• Voltage Rating: 480 V AC
• Wire Range (Load Lugs): 10 - 4 AWG (Cu/Al)
• Dimensions (W x H x D): 1 in x 5 in x 6 in
• Product Weight: 1.15 lbs
• Country of Origin: Mexico

Features

• Thermal-magnetic trip unit providing reliable overcurrent protection
• Standard 40¬∞C breaker with ED frame construction
• Non-interchangeable trip unit for compliance with UL 489 and CSA C22.2 No. 5 requirements
• Load side lugs only (catalog number LD1E060) for simplified wiring
• Compatible with copper and aluminum conductors in the 10 to 4 AWG range
• Compact dimensions suitable for panelboards and switchboards
