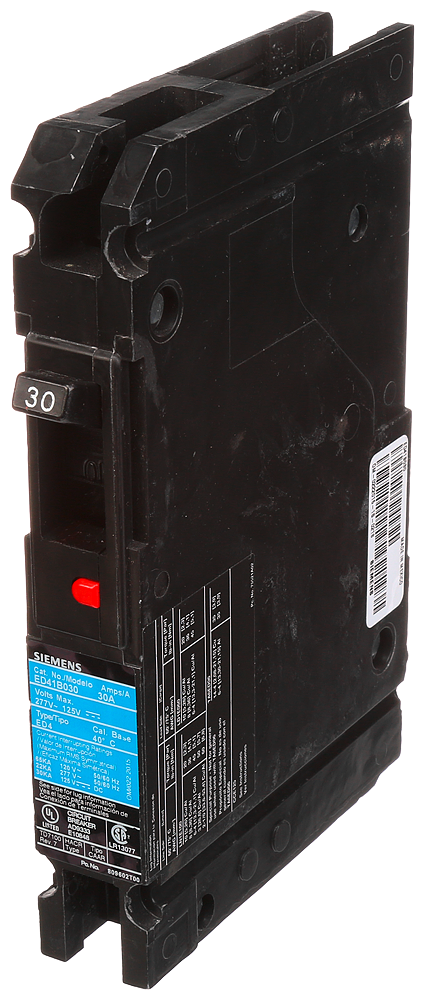

BRKR ED4 1P 480V 30A Molded Case Circuit Breaker

The Siemens BRKR ED4 1P 480V 30A is a low voltage molded case circuit breaker designed for reliable electrical distribution and protection. It is suitable for use by electrical distributors and switchgear suppliers requiring standard 40°C breakers with thermal-magnetic trip units. The breaker supports 1-pole configurations at 30 amperes with a 22 kA interrupt rating at 277V, making it appropriate for lighting solutions and wire and cable applications in commercial and industrial settings.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: ED41B030
• Frame: ED
• Number of Poles: 1
• Amperage Rating: 30A
• Interrupt Rating: 22KAIC at 277V
• Operating Temperature: 40¬∞C
• Frequency Rating: 50/60 Hz
• Dimensions (W x H x D): 1.00 in x 6.4 in x 3.92 in (approximate)
• Weight: 1.3 lbs
• Country of Origin: Mexico
• Application: Standard 40¬∞C Breaker

Features

• Thermal-magnetic trip unit with non-interchangeable trip design for safety and compliance with UL 489 / CSA C22.2 No. 5
• Load lugs only (LD1E060) supporting wire range #10 to #4 AWG copper or aluminum
• Standard breaking capacity suitable for typical commercial lighting and electrical distribution applications
• Compact ED frame design facilitating easy integration into panelboards and switchgear
• Designed for use with 60¬∞C or 75¬∞C wire as per National Electric Code
• Suitable for reverse feed installations due to non-removable trip unit construction
