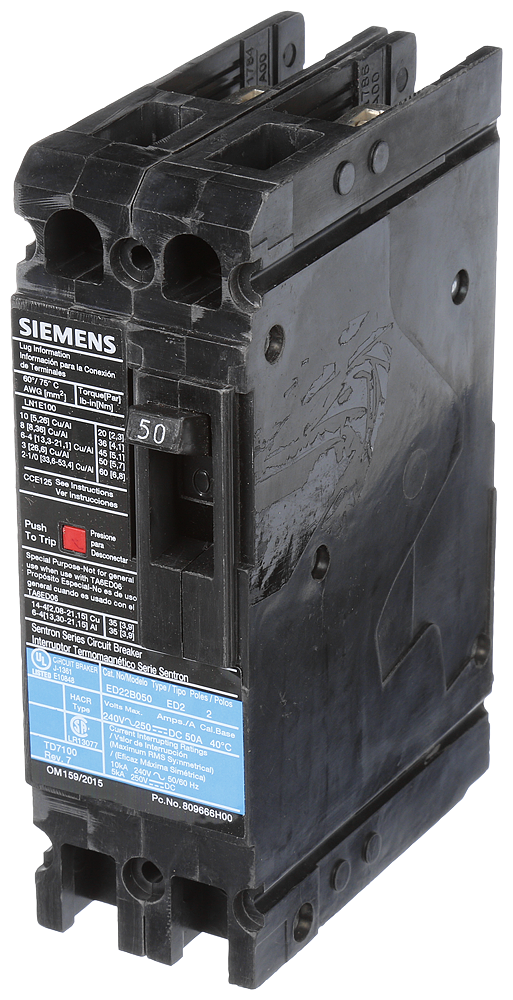

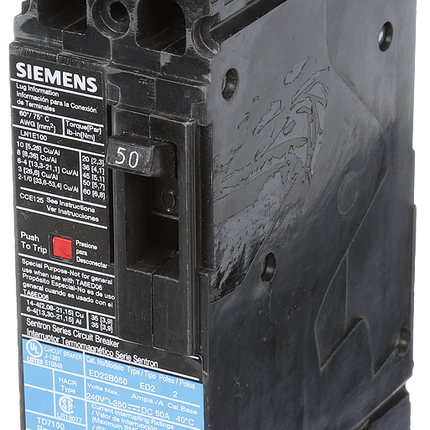

BRKR ED2 2P 240V 50A Molded Case Circuit Breaker

The Siemens BRKR ED2 2P 240V 50A is a low voltage Sentron molded case circuit breaker designed for electrical distributors and switchgear suppliers requiring reliable protection for electrical distribution systems. This circuit breaker features a thermal-magnetic trip unit with a standard 40°C frame and is suitable for use in lighting solutions, wire and cable applications, and general electrical distribution. It provides a standard breaking capacity of 10KAIC at 240V and is designed for two-pole configurations.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: ED22B050
• Frame: ED
• Number of Poles: 2
• Interrupt Rating: 10KAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40°C
• Voltage Rating: 240V AC / 250V DC
• Current Rating: 50 Amps
• Dimensions (W x H x D): 2.00 x 6.4 x 3.92 inches
• Weight: 2.61 lbs
• Wire Range (Load Lugs Only): 10 - 1/0 AWG Copper/Aluminum
• Application: Standard 40°C Breaker
• Country of Origin: Mexico

Features

• Thermal-magnetic trip unit with non-interchangeable trip mechanism
• Load lugs only configuration (LN1E100) for secure wire connection
• Standard breaking capacity suitable for general electrical distribution
• Compatible with standard 40°C ambient temperature applications
• Compact dimensions for ease of installation in panelboards and switchboards
• Suitable for use in electrical distribution systems requiring reliable circuit protection
