BRKR CJD6 3P 600V 400A
SKU: #308899
Part: #CJD63B400
UPC: 783643213616
BRKR CJD6 3P 600V 400A
SKU: #308899
Part: #CJD63B400
UPC: 783643213616
Next day delivery
Description

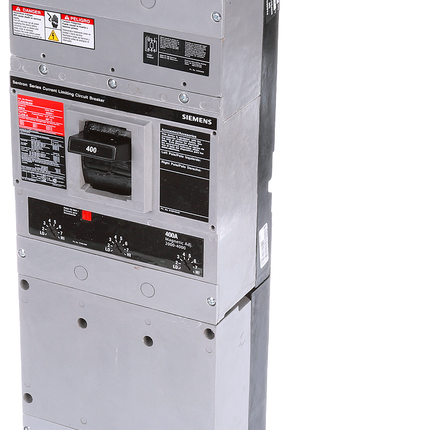

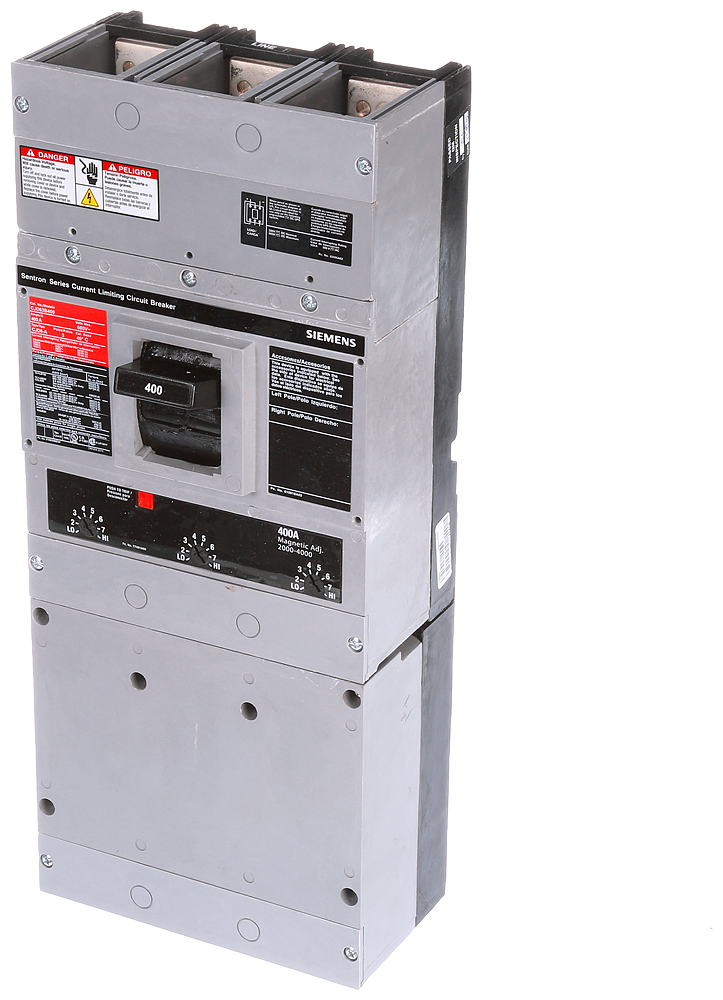

BRKR CJD6 3P 600V 400A Molded Case Circuit Breaker
This Siemens low voltage Sentron molded case circuit breaker is designed for electrical distributors and switchgear suppliers requiring reliable overcurrent protection. It features a thermal-magnetic trip unit assembled in a standard 40°C JD frame, suitable for industrial and commercial lighting solutions and wire and cable applications.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: CJD63B400
- Frame: JD
- Number of Poles: 3
- Voltage Rating: 600V
- Current Rating: 400A
- Interrupt Rating: 100KAIC at 600V, 150KAIC at 480V
- Frequency Rating: 50/60 Hz
- Operating Temperature: 40°C
- Dimensions (W x H x D): 9.7 in x 19.7 in x 7.4 in
- Country of Origin: Mexico
- Order Minimum: 1 unit
Features
- Thermal-magnetic trip unit for precise overcurrent protection
- Fuse-less current limiting breaking capacity
- Non-interchangeable trip unit for enhanced safety
- No lugs installed, simplifying installation options
- Designed for standard 40°C breaker applications
