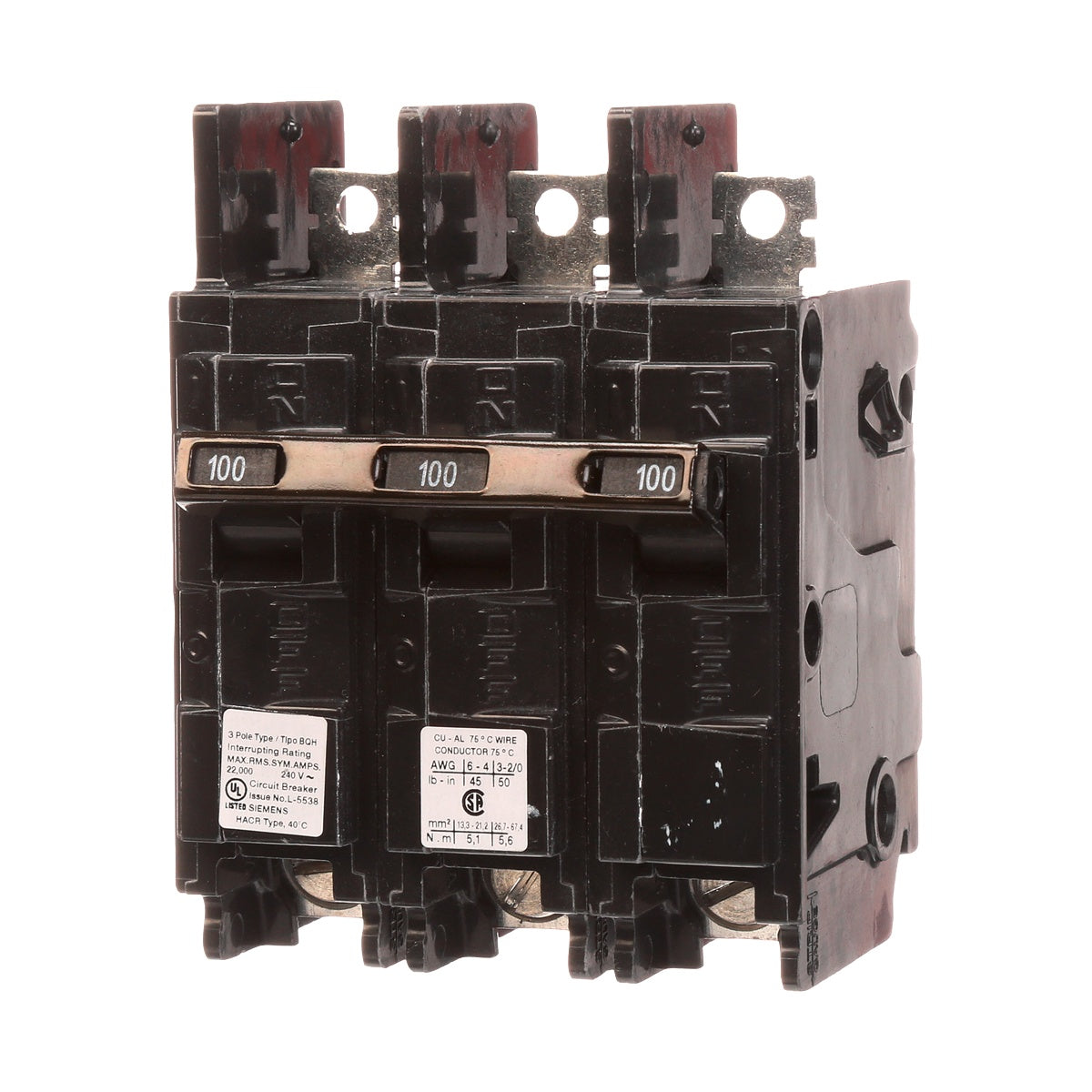

BRKR BQH 3P 240V 100A 22K Molded Case Circuit Breaker

The Siemens BRKR BQH 3P 240V 100A 22K is a low voltage molded case circuit breaker designed for electrical distribution applications. This 3-pole common-trip MCCB provides reliable circuit protection with a rated voltage of 240V and a continuous current rating of 100A. It features a bolt-on electrical connection and includes load side lugs for ease of installation, making it suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers.

Specifications

• Manufacturer: Siemens
• Model / Design: BQ
• Number of Poles: 3
• Rated Voltage: 240 V
• Continuous Current Rating: 100 A
• Interrupt Rating: 22 kA (22 AIC)
• Type of Electrical Connection: Bolt-On
• Dimensions (W x H x D): 3 in x 4 in x 3 in
• Product Weight: 1.04 lbs
• Standard: UL 489

Features

• General purpose molded case circuit breaker for low voltage applications
• Common-trip mechanism for simultaneous pole operation
• Load side lugs included for secure wiring connections
• Compact design optimized for electrical distribution panels
