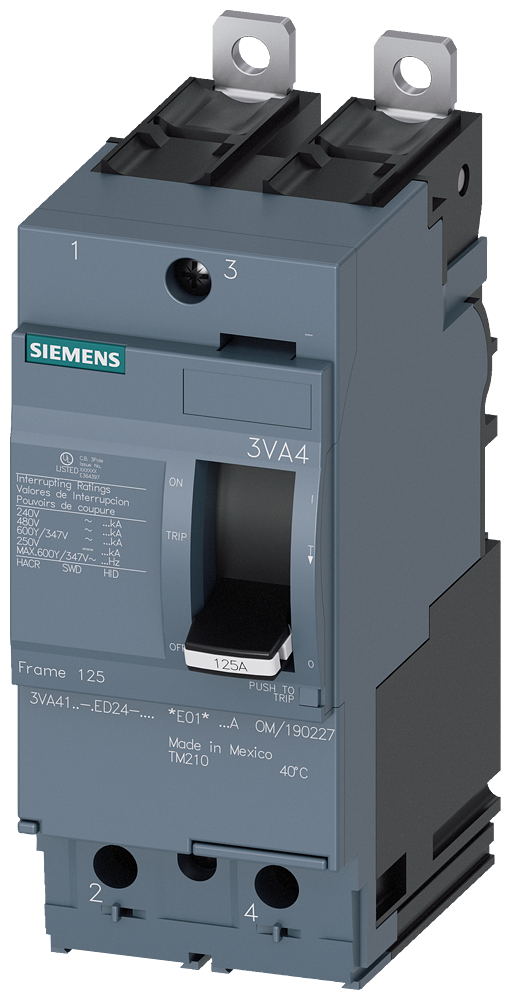

BRKR 3VA41 2P 50A 35KA FTFM LD LUG – Molded Case Circuit Breaker

The Siemens 3VA41 molded case circuit breaker is designed for low voltage electrical distribution and protection applications. It features a thermal-magnetic trip unit suited for reliable overload and short-circuit protection, making it ideal for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers. This 2-pole breaker supports medium (Class M) breaking capacity, ensuring robust performance in commercial and industrial electrical systems.

Specifications

• Manufacturer: Siemens
• Model Number: 3VA4150-5ED24-0AA0
• Frame: 3VA41
• Poles: 2
• Current Rating: 50A
• Breaking Capacity: 18 kAIC at 600Y/347 V, 35 kAIC at 480 V
• Trip Unit: Thermal-Magnetic (TM210) with fixed Ir and Ii settings
• Dimensions (W x H x D): 5.31 in x 2.28 in x 6.61 in
• Weight: 1.31 lbs
• Special Features: Load-side only lug installation
• UL Listed

Features

• Thermal-magnetic trip unit provides precise overload and short-circuit protection
• Compact design suitable for space-constrained switchgear assemblies
• Medium breaking capacity (Class M) supports reliable fault interruption
• Easy installation with lugs pre-installed on load side
• Compatible with a wide range of industrial and commercial electrical systems
• Manufactured by Siemens, a recognized leader in electrical distribution equipment

Downloads and Links

• 3VA41 Series Data Sheet (PDF)
