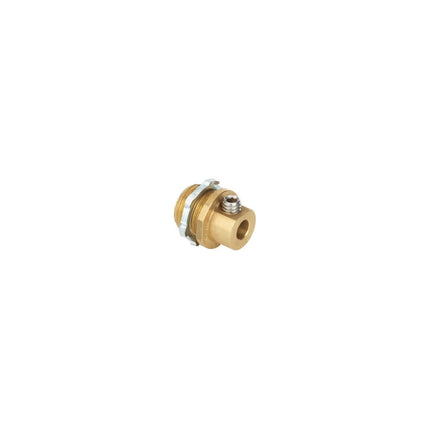

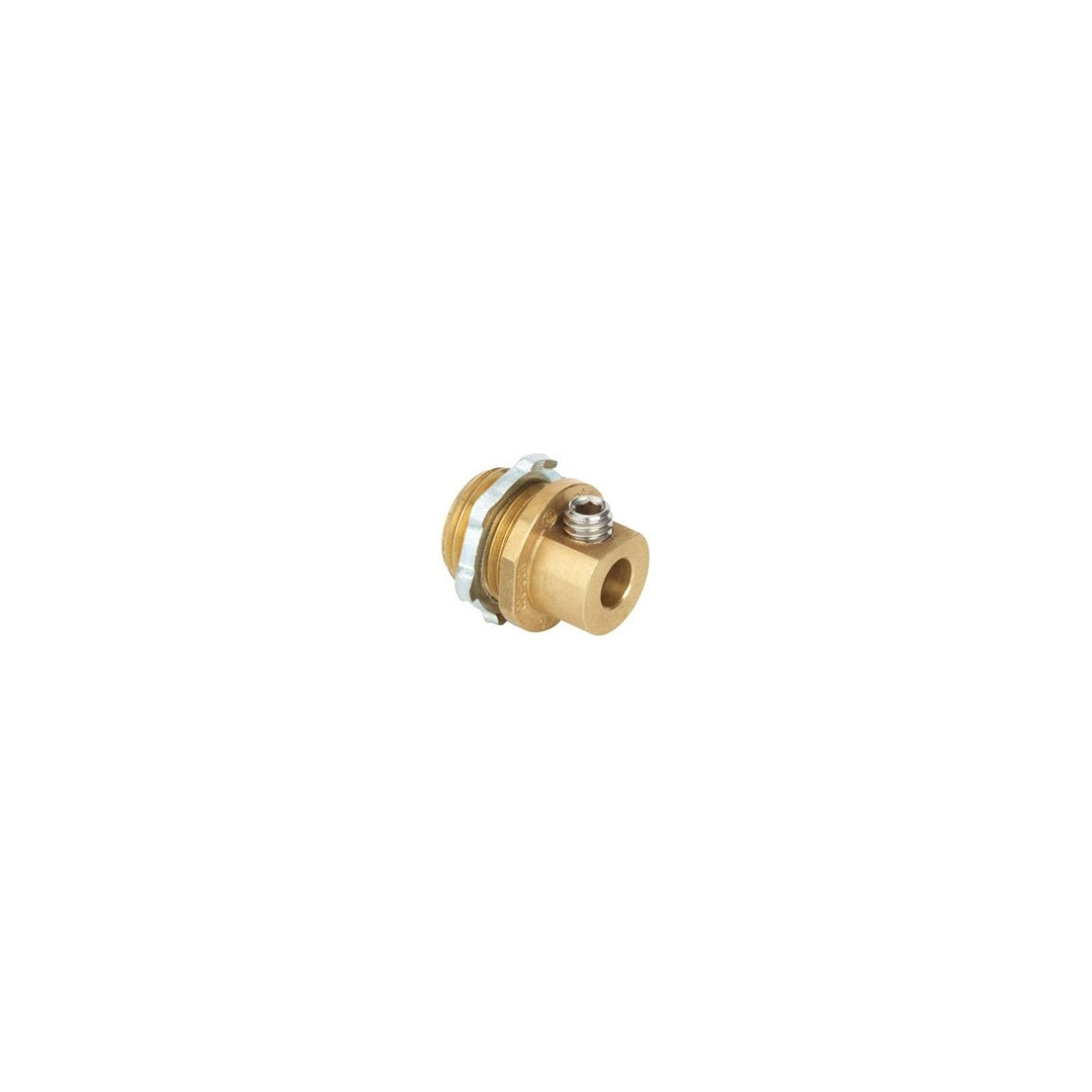

BRIDGEPORT MCC-100 1 IN Grounding Coupling

The BRIDGEPORT MCC-100 is a 1-inch Mighty-Bond® brass equipment bonding connector designed for bonding boxes, devices, and enclosures with wall thicknesses from 0.1 to 0.385 inches to a continuous length of equipment grounding conductor. This grounding coupling installs in a 1" trade size knockout and can be connected to a raceway while maintaining the use of the locknut. It is suitable for electrical distributors and switchgear suppliers requiring reliable grounding solutions compliant with National Electrical Code (NEC) standards.

Specifications

• Manufacturer Part #: MCC-100
• Conductor Material: Brass/Stainless Steel
• Trade Size: 1"
• Dimensions A: 1.13 inches
• Dimensions B: 1.88 inches
• Dimensions C: 0.56 inches
• Dimensions D: 0.62 inches
• Product Weight: 5.13 lbs
• UL File Number: E20412
• UL Standard: UL-467
• Patent Numbers: 7,927,157; D657,316

Features

• Precision machined brass body with zinc die cast locknut and stainless steel set screw
• Serrated locknut removes residual paint from enclosure box for improved grounding
• Low profile flange inside the box clearly marked with application guidelines for easy inspection
• Compatible with rigid metallic or PVC rigid conduit
• UL Listed for grounding applications per UL467 standard
• Suitable for service entrance grounding in compliance with NEC Article 250.8 and 250.66
