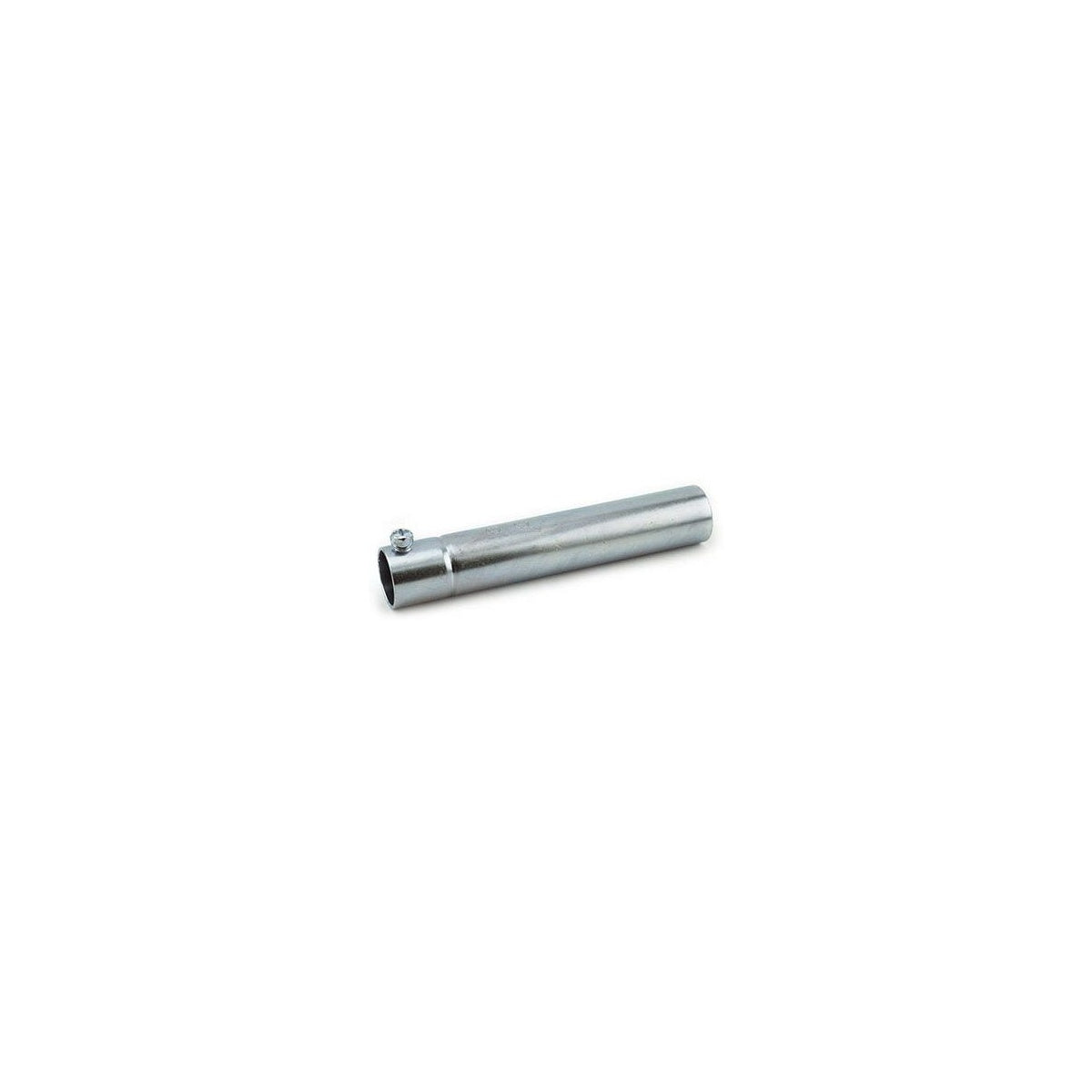

BRIDGEPORT EC-075 3/4 IN STEEL EXPANSION COUPLING – EMT Conduit Fitting

The BRIDGEPORT EC-075 Steel Expansion Coupling is designed for use with 3/4" steel Electrical Metallic Tubing (EMT) to accommodate lateral movement of conduit in dry locations. It assembles like a regular EMT set screw coupling, providing a reliable solution for electrical distributors and switchgear suppliers requiring flexible conduit connections. This coupling allows for plus or minus 2 inches of expansion and contraction, making it suitable for applications where thermal expansion or contraction of wire and cable conduit runs is a concern.

Specifications

• Material: Zinc Plated Steel
• Finish: Enamel
• Trade Size: 3/4 inch
• Product Weight: 4.8150 lbs
• Cable Entry: Through conduit into expansion throat back to conduit
• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: EC-075
• UPC: 781747043016

Features

• Assembles like a regular EMT set screw coupling for straightforward installation
• Compensates for plus or minus 2 inches of lateral conduit movement
• Patented installation method ensures secure and precise engagement
• Suitable for dry location use with steel EMT conduit
• Compatible with optional Bonding Jumper Assemblies (BJ-100, BJ-200, BJ-400)

Downloads & Links

• Spec Sheet
