BRIDGEPORT 686-UI 2 IN MC-FLEXFIT 1.70 TO 2.20
SKU: #329442
Part: #686-UI
UPC: 781747026866
BRIDGEPORT 686-UI 2 IN MC-FLEXFIT 1.70 TO 2.20
SKU: #329442
Part: #686-UI
UPC: 781747026866
Description

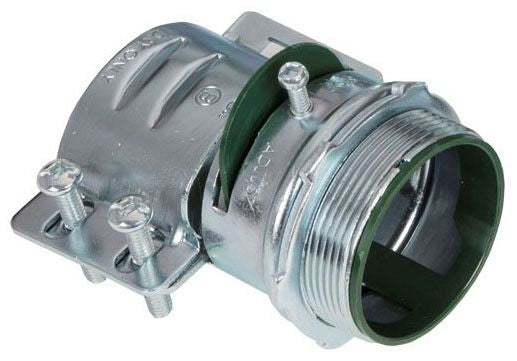

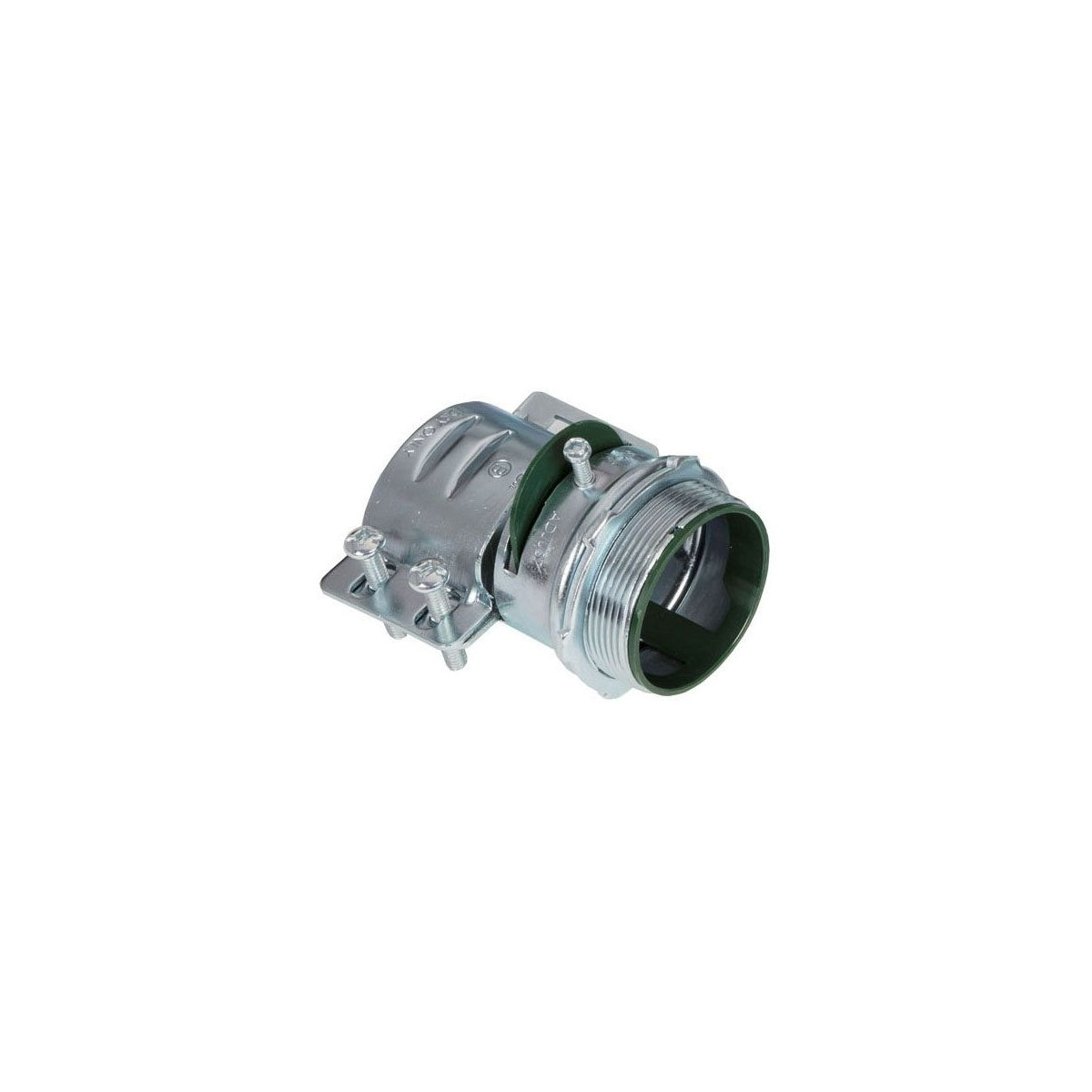

BRIDGEPORT 686-UI 2 IN MC-FLEXFIT 1.70 TO 2.20 Adjustable MC Connector
The BRIDGEPORT 686-UI is an adjustable MC-FLEXFIT connector designed for secure termination of metal clad (MC) feeder cables. Manufactured by Bridgeport Fittings, this connector features an innovative one-piece armor stop and insulated throat to enhance conductor protection. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable cable fittings for lighting solutions and wire and cable installations.
Specifications
- Material: Zinc Plated Steel
- Cable Entry: Two position/two screw hinge design allowing a large cable range without separate bushings
- MC Cable Range: 1.70" to 2.20" diameter
- Product Weight: 1.5760 lbs
- Manufacturer Part #: 686-UI
- UPC: 781747026866
Features
- One-piece armor stop and insulated throat providing greater conductor protection
- Two position/two screw hinge design for adjustable cable fitting
- Heavy duty steel construction supports large sized MC feeder cable
- Patented design (US Patent D787,043; 9,373,919)
- Listed for safety and performance
