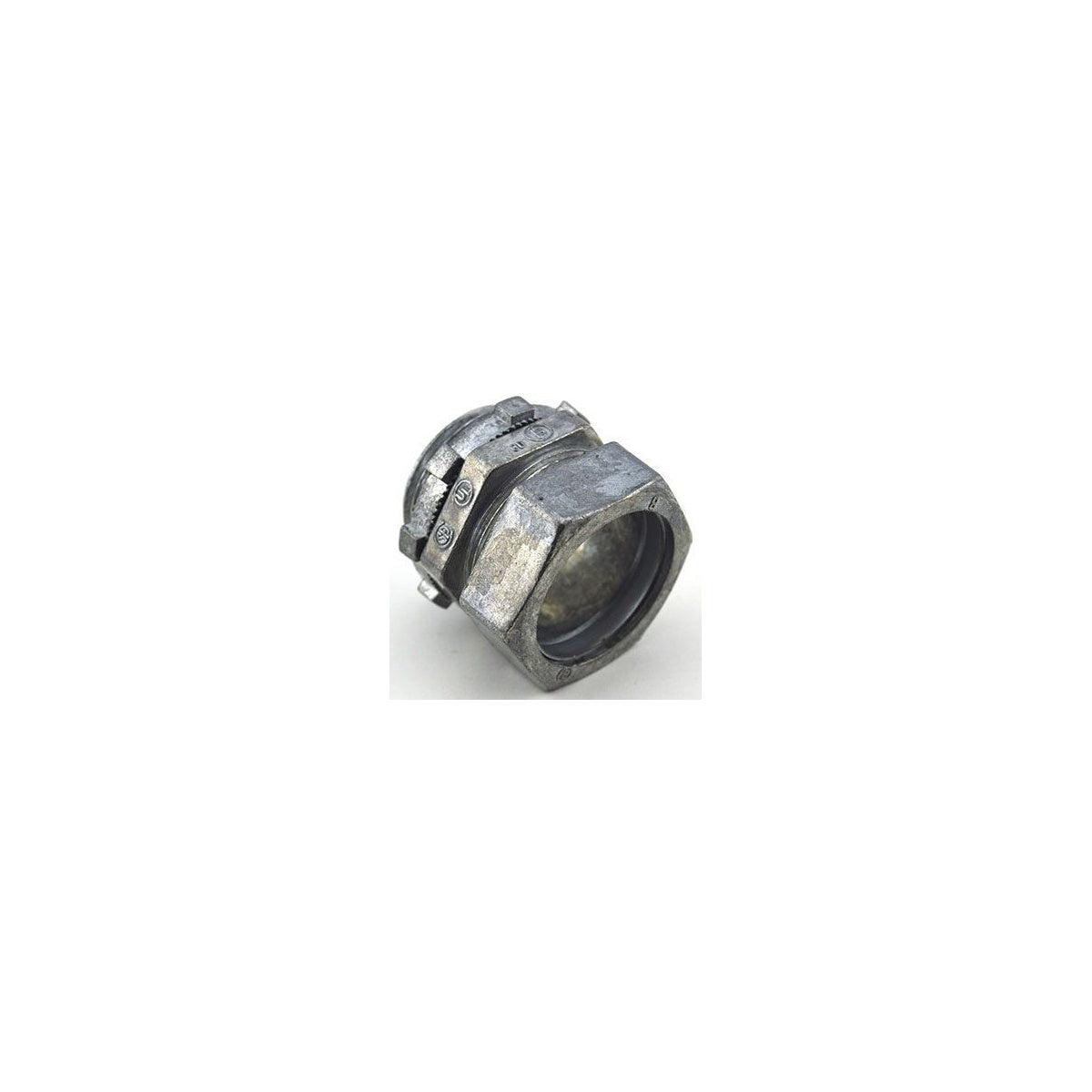

BRIDGEPORT 252-DC2 1 IN COMP. CONN. ZINC Compression Connector

This zinc die cast compression connector is designed for electrical distributors and switchgear suppliers to securely join steel EMT conduit to boxes or enclosures. It is concrete-tight and suitable for use with steel or aluminum EMT ranging from 1/2" to 4". The connector provides a reliable mechanical and environmental seal, essential for lighting solutions and wire and cable installations in commercial and industrial electrical systems.

Specifications

• Material: Zinc Die Cast
• Finish: Ball burnish
• Application: Used to join steel EMT to box or enclosure; concrete-tight; suitable for 1/2" thru 4" steel or aluminum EMT
• Product Weight: 22.6 lbs
• Insulation: None
• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 252-DC2
• UPC: 781747152527

Features

• Compression type connector ensures secure attachment of EMT conduit to enclosures
• Concrete-tight design suitable for use in demanding electrical installations
• Compatible with both steel and aluminum EMT conduits
• Zinc die cast construction offers durability and corrosion resistance
• Ball burnish finish enhances surface smoothness and corrosion protection

Downloads & Links

• Spec Sheet
