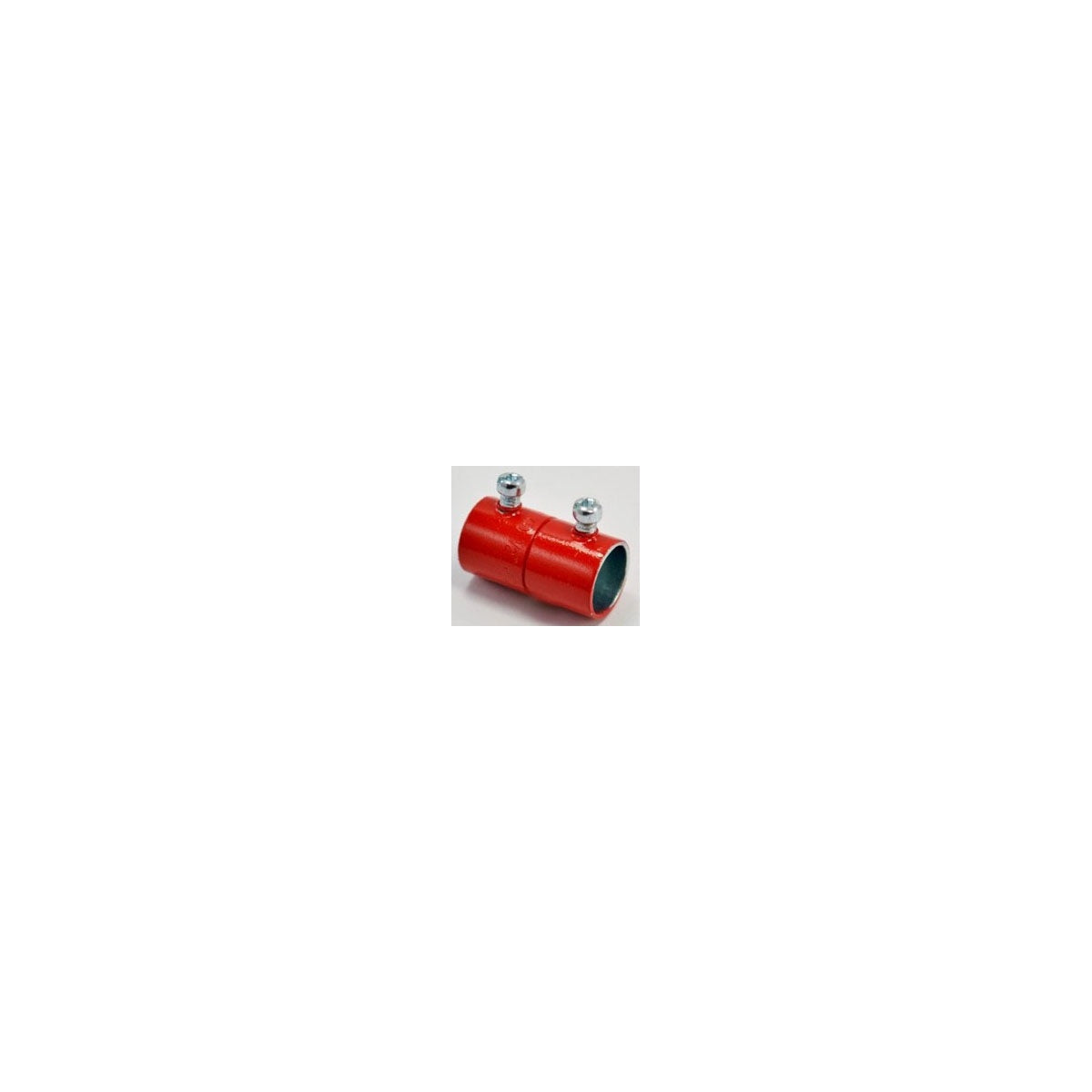

BRIDGEPORT 243-SR 1-1/4 IN Red Steel EMT Coupling

The BRIDGEPORT 243-SR is a set screw coupling designed to join two lengths of Electrical Metallic Tubing (EMT). Color coded red to match red EMT, it is intended for use in emergency circuits, fire alarm, and security system applications. This steel coupling provides a concrete-tight connection and is furnished with Tri-Drive slot/Phillips/Robertson head screws for secure fastening. It is also listed for use with aluminum EMT, making it suitable for various electrical distributor and lighting solutions requiring reliable wire and cable conduit connections.

Specifications

• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 243-SR
• Material: Steel
• Color: Red
• Trade Size: 1-1/4"
• Finish: Red Powder Coat
• Dimensions A: 3-1/4"
• Dimensions B: 1-11/16"
• Unit Quantity: 15
• Standard Package Quantity: 90
• Product Weight: 5.45 lbs
• UL File Number: E24001
• UL Standard: UL-514B
• Patent Number: 6,861,585

Features

• Set screw coupling for joining two EMT lengths
• Color coded red to match EMT for easy identification
• Concrete-tight connection suitable for emergency circuits, fire alarm, and security system applications
• Furnished with Tri-Drive slot/Phillips/Robertson head screws for secure fastening
• Listed for use with aluminum EMT
• Durable steel construction with red powder coat finish
