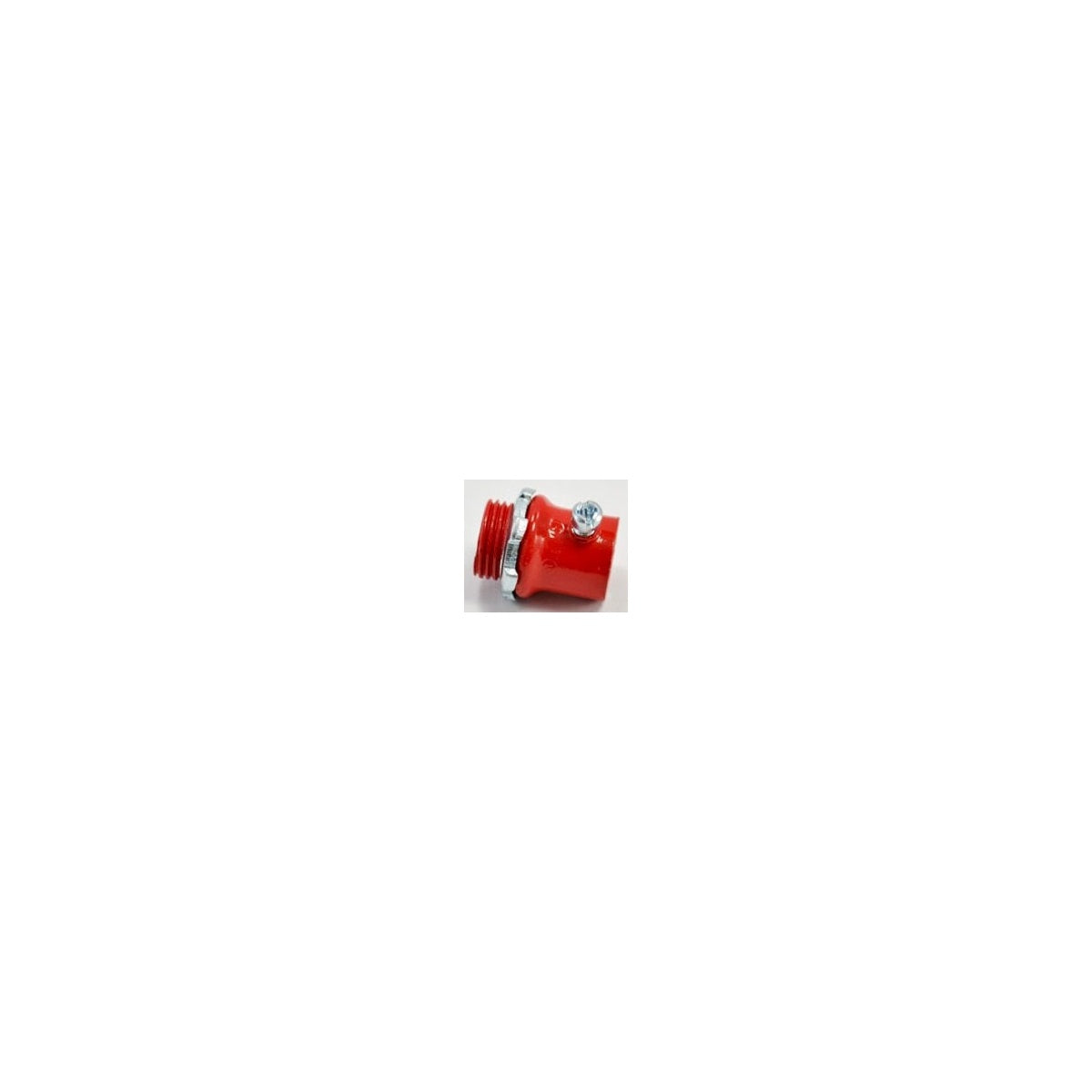

BRIDGEPORT 233-SR 1-1/4 IN RED S.S. EMT CONN. - Red Fire Alarm EMT Connector

Bridgeport's 233-SR Red Set Screw EMT Connector is designed to join Electrical Metallic Tubing (EMT) to boxes or enclosures, specifically for emergency circuits, fire alarm, and security system applications. This product is color coded red to match red EMT conduit for easy identification and compliance with fire alarm system requirements. It is concrete-tight and suitable for use with both steel and aluminum EMT. The connector features Tri-Drive slot/Phillips/Robertson head screws for secure fastening and is patented under US Patent 6,861,585.

Specifications

• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 233-SR
• Material: Steel
• Color: Red
• Finish: Red Paint
• Product Weight: 7.2830 oz
• Application: Used to join EMT to box or enclosure for emergency circuits, fire alarm, and security system applications; also listed for use with Aluminum EMT

Features

• Color coded red to match red EMT for easy visual identification
• Concrete-tight design ensures secure and reliable connections
• Furnished with Tri-Drive slot/Phillips/Robertson head screws for versatile installation
• Suitable for emergency circuits, fire alarm, and security system applications
• Patented design (US Patent 6,861,585) ensuring unique and reliable performance
