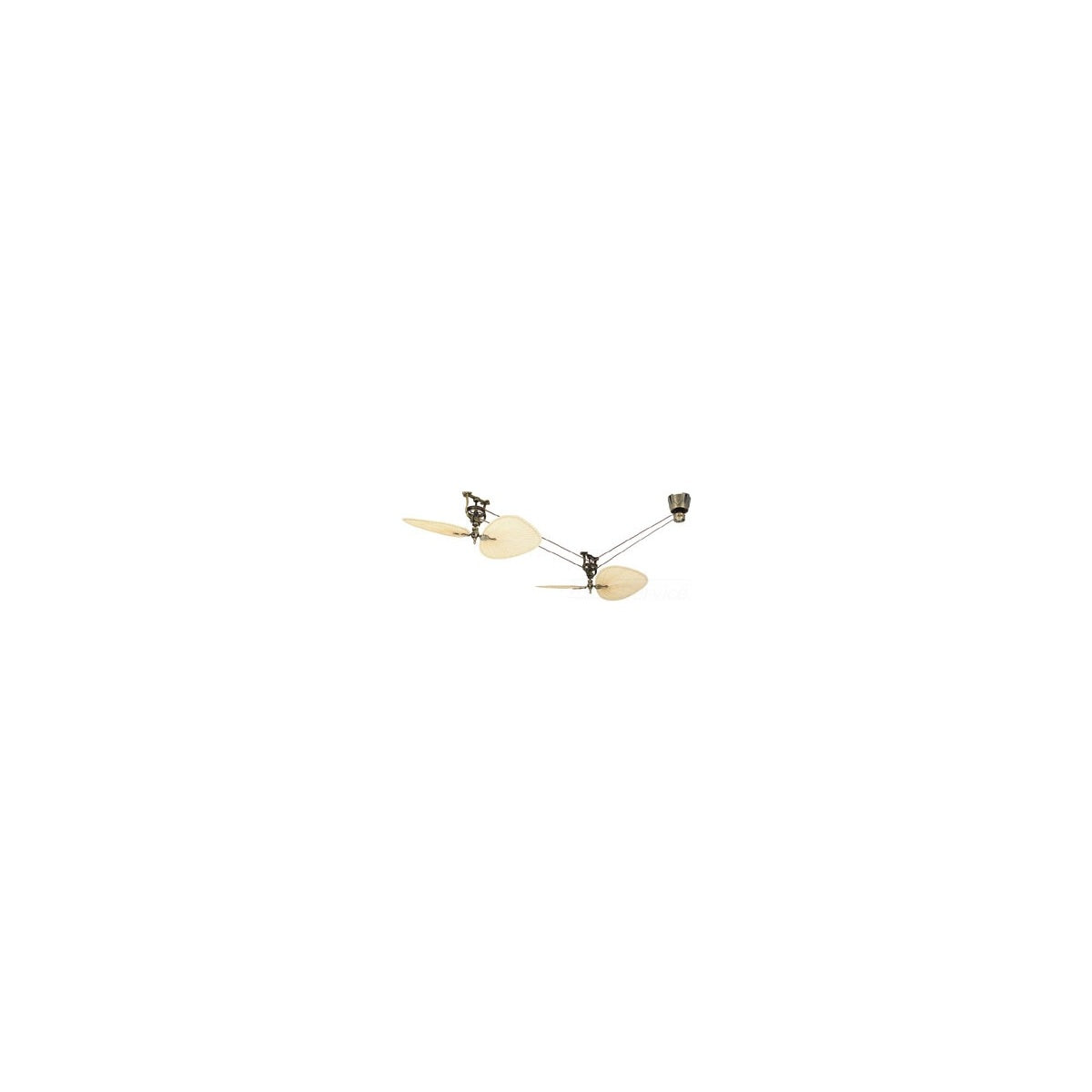

Brewmaster Short-Neck - BL Ceiling Fan Assembly

The Brewmaster Short-Neck - BL is a ceiling fan assembly designed for dry locations, offering reliable air circulation with a compact short-neck design. Manufactured by Fanimation, this fan assembly is suitable for electrical distributors and lighting solutions providers looking to offer durable fan components compatible with various blade options. It features a reversible motor and adjustable pulley system for customizable installation.

Specifications

• Manufacturer: Fanimation
• Manufacturer Part #: FP10BL
• Finish: Black
• Dimensions (L x W x H): 12 in x 4 in x 17.5 in
• Product Weight: 11.6 lbs
• IP Rating: IP20
• Number of Blades: 2
• Blade Pitch: 20 degrees
• Electrical Requirements: 120 VAC, 60 Hz, 15 amp circuit

Features

• Short pulley assembly with adjustable height pulley
• Includes 30 ft. of 3/8" belt and traditional and wood blade holders
• Compatible with multiple blade sets sold separately, including reversible oak/walnut, cherrywood, and rosewood
• Three-speed reversible motor (FK2100) designed for optimal performance
• Control options include hand-held reversing remote and switch cup receiver unit
• Optional lighting fitters and light kits available for mounting on motor switch cap housing
• Motor unit can operate up to four pulley/blade assemblies
• Recommended installation with 3/4" plywood backing secured to structural member

Downloads & Links

• Spec Sheet
