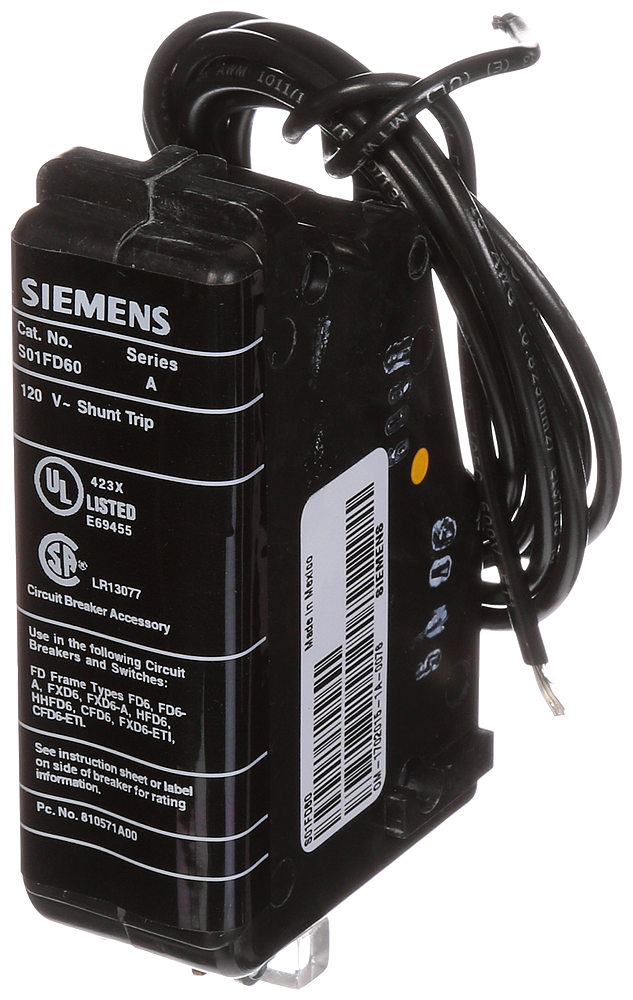

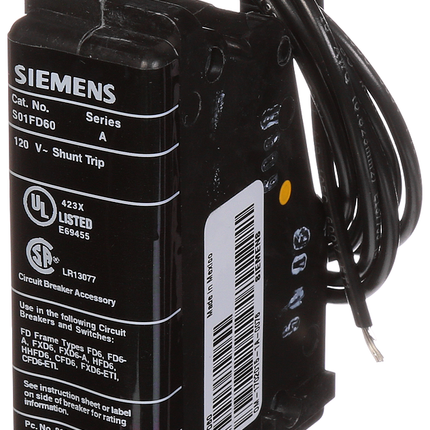

BREAKER FD 120VAC ST Molded Case Circuit Breaker Accessory

This Siemens FD frame molded case circuit breaker internal accessory is a 120 VAC shunt trip device designed to provide remote tripping capability. It is suitable for use with FD frame circuit breakers and is intended for applications requiring precise electrical control and protection. This accessory is relevant to electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers focusing on low voltage circuit protection.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: S01FD60
• Frame: FD
• Actuator: 1 Shunt Trip
• Control Voltage: 120 VAC
• Dimensions (W x H x L): 4.000 in x 2 in x 4.000 in
• Product Weight: 0.5700 lb
• Country of Origin: Mexico
• Application: Accessory

Features

• Enables remote tripping of FD frame circuit breakers via shunt trip coil
• Operates through an auxiliary switch contact that opens the breaker when energized
• Compatible exclusively with Siemens FD frame breakers; not compatible with older F-frame accessories
• UL Listed and CSA Certified for circuit breaker accessory use

Downloads & Links

• Spec Sheet
