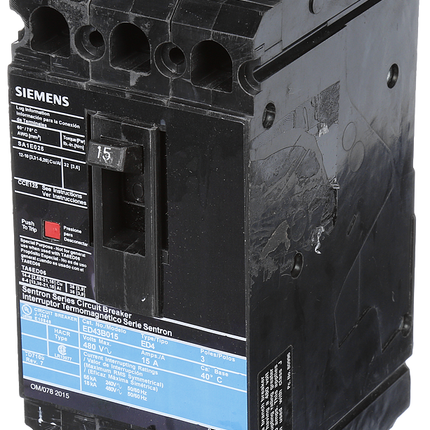

BREAKER ED4 3P 480V 15A
SKU: #311230
Part: #ED43B015
UPC: 783643209367
BREAKER ED4 3P 480V 15A
SKU: #311230
Part: #ED43B015
UPC: 783643209367
Next day delivery
Description

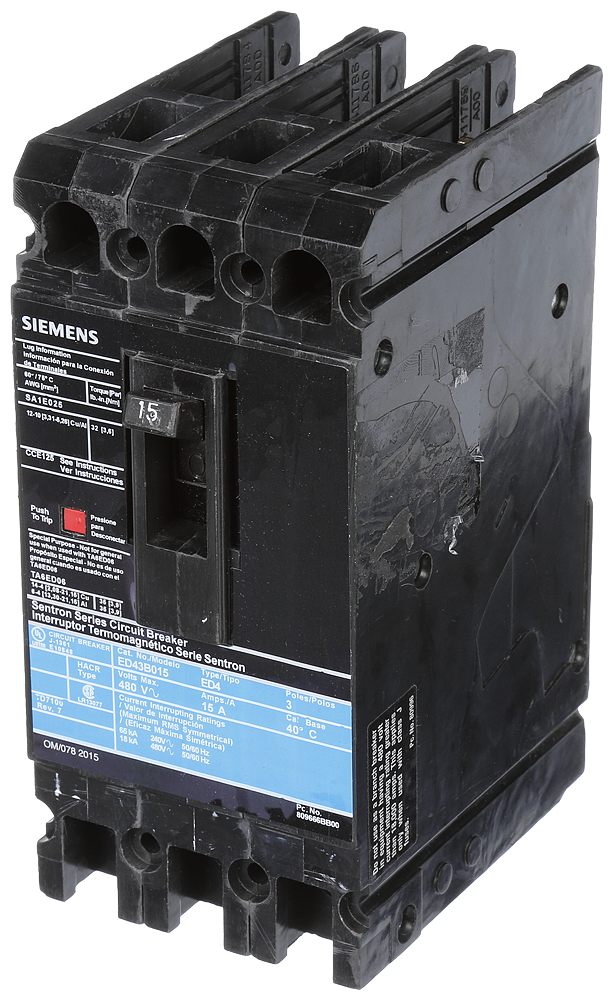

BREAKER ED4 3P 480V 15A Molded Case Circuit Breaker
The Siemens BREAKER ED4 3P 480V 15A is a low voltage molded case circuit breaker designed for standard 40°C breaker applications. It features a thermal-magnetic trip unit with a fixed, non-interchangeable trip mechanism suitable for electrical distribution and switchgear systems. This 3-pole breaker provides reliable protection for wire and cable circuits, rated for 15 amps with an interrupting capacity of 18kAIC at 480 volts AC. It is manufactured by Siemens and is optimized for use in industrial and commercial electrical installations requiring consistent and safe circuit interruption.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: ED43B015
- Frame: ED
- Poles: 3
- Voltage Rating: 480 VAC
- Current Rating: 15 A
- Interrupt Rating: 18kAIC at 480V
- Frequency Rating: 50/60 Hz
- Operating Temperature: 40°C
- Dimensions (W x H x D): 5.7 in x 7.3 in x 3.8 in
- Wire Range: #14–#10 AWG Copper, #12–#10 AWG Aluminum (Load Lugs Only - SA1E025)
- Weight: 3.7 lbs
- Country of Origin: Mexico
Features
- Thermal-magnetic trip unit with non-interchangeable trip for enhanced safety
- Standard 40°C rated breaker frame for consistent performance
- Load lugs only configuration for wire connections
- Suitable for use in electrical distribution and switchgear applications
- Compliant with UL 489 and CSA C22.2 No. 5 standards
- Designed for use with copper and aluminum conductors
