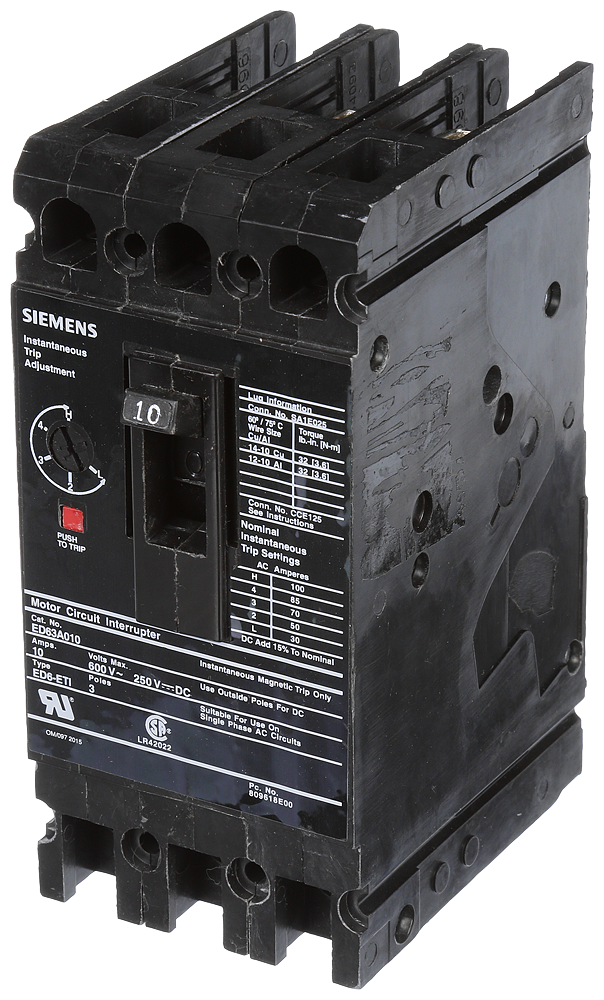

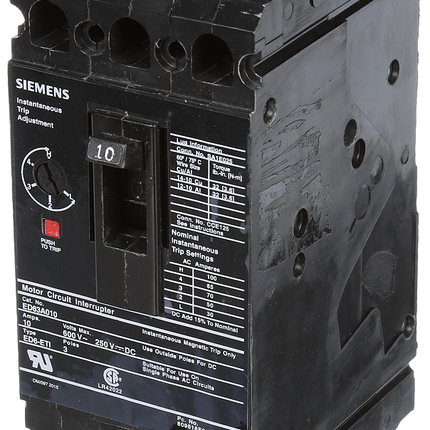

BREAKER ED 3P 10A 600V LUGS-ETI Molded Case Circuit Breaker

This Siemens molded case circuit breaker is designed for electrical distributors and switchgear suppliers requiring reliable protection in low voltage applications. It features a magnetic trip unit suitable for standard range ETI breaker frames, providing secure interruption and load protection for lighting solutions, wire, and cable systems.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: ED63A010
• Application: Standard Range ETI Breaker
• Number of Poles: 3
• Interrupt Rating: 18KAIC at 600V (25KAIC at 480V)
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40¬∞C
• Dimensions (W x H x D): 6 in x 7 in x 4 in
• Order Minimum: 1 unit
• Country of Origin: Mexico
• Product Weight: 3.8010 lbs

Features

• Magnetic trip unit only for instantaneous protection
• Load lugs only (SA1E025) for wire range 14-10 AWG (Cu) / 12-10 AWG (Al)
• Meets UL 489 and IEC 60947-2 standards
• ED frame with standard breaking capacity
• Suitable for use in single-phase AC circuits
