BREAKER 15A 1P 120V 10K QP 120V SHUNT – Electrical Distributor Circuit Breaker

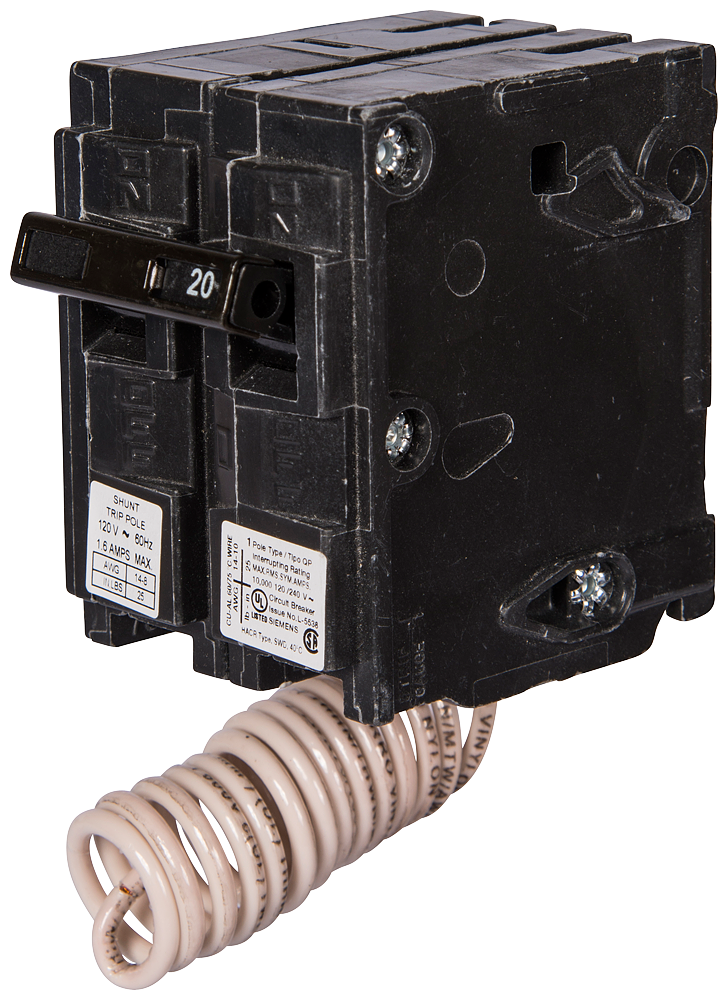

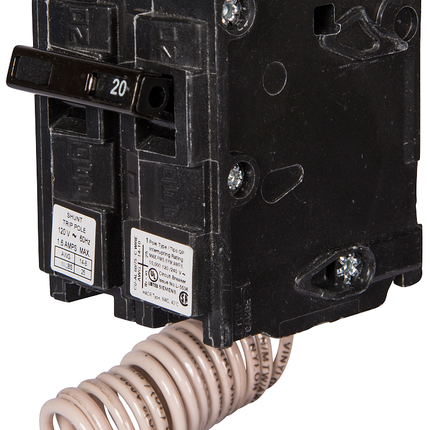

The Siemens BREAKER 15A 1P 120V 10K QP 120V SHUNT is a miniature thermal magnetic circuit breaker designed for residential and light commercial electrical distribution. It is commonly used for circuit protection in load centers, mains, and feeders, providing reliable interruption and protection for lighting solutions, wire and cable systems, and switchgear applications. This single-pole breaker offers a 15-ampere rating with a 120V voltage rating, making it suitable for standard electrical distribution setups.

Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: Q11500S01
• Type: Miniature Thermal Magnetic Circuit Breaker, Type QP/MP
• Amperage Rating: 15 amperes
• Voltage Rating: 120V
• Interrupt Rating: 10,000 AIC (Amperes Interrupting Capacity)
• Number of Poles: 1
• Connection Type: Plug-In
• Frame Size: QP (125A frame)
• Dimensions: 4 in (Height) x 3 in (Length) x 2 in (Width)
• Weight: 0.3 lbs
• Application: Electrical Distribution
• Special Feature: 120V Shunt Trip
• Country of Origin: Mexico
• Standards: UL 489 Listed

Features

• Thermal magnetic trip mechanism provides reliable protection against overloads and short circuits
• Shunt trip feature allows remote tripping at 120V for enhanced safety and control
• Plug-in connection simplifies installation and replacement in compatible load centers
• Compact design fits standard residential and commercial panelboards
• UL 489 listing ensures compliance with industry safety standards
• Interrupt rating of 10,000 AIC suitable for typical residential and light commercial applications
• Compatible with Siemens QP load centers and panels
