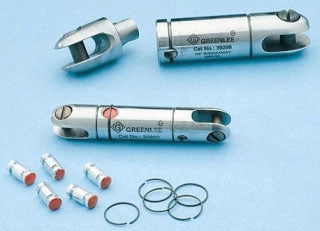

Breakaway Swivel - 675 lbs Mechanical Fuse for Cable Protection

The Breakaway Swivel - 675 lbs by Greenlee functions as a mechanical fuse designed to protect expensive cable by breaking away at a preset load. This component is intended for use with the 39290 5/8 inch swivel, making it suitable for electrical distributors and switchgear suppliers requiring reliable cable safety mechanisms in their lighting solutions, wire and cable handling, or pulling equipment.

Specifications

• Application: Use with 39290 5/8 inch swivel
• Breaking Point Weight: 675 lbs (3.0 kN)
• Color Code: Black
• Product Weight: 0.1 lbs
• Manufacturer Part #: 39297
• UPC: 783310392972

Features

• Acts as a mechanical fuse, breaking away at a preset load to prevent damage to cable
• Breakaway pins are replaceable to adjust breakaway values

Downloads & Links

• Spec Sheet
• Spec Sheet
